Summary of Contents for Stereoping DELUXE DELAY

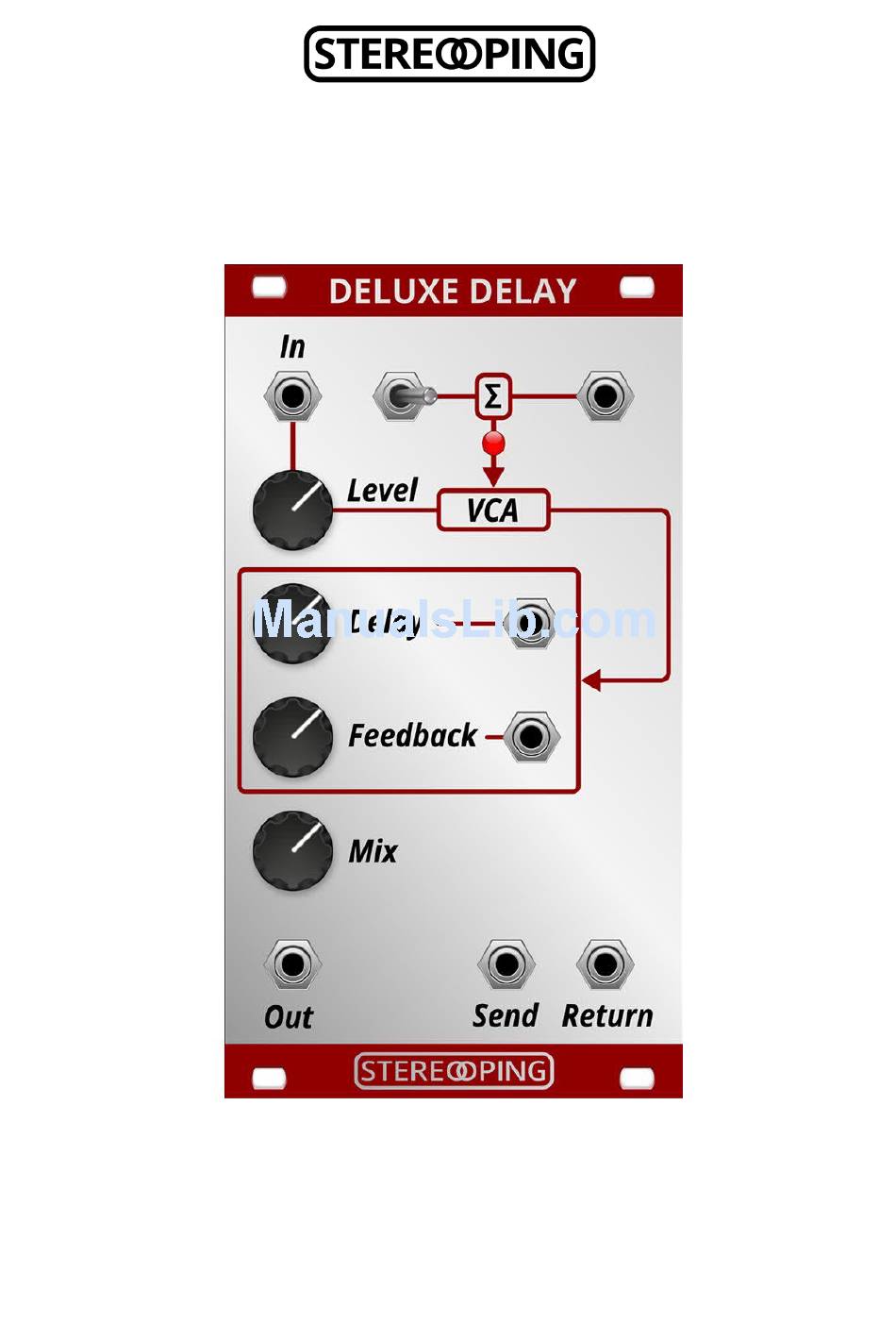

- Page 1 DELUXE DELAY Eurorack Module Manual Manual DELUXE DELAY Eurorack V1.1 © Stereoping Germany, Hattingen 03/2015...
-
Page 2: Functional Block Diagram
Width 70.7 mm / 14 TE, Depth about 25 mm • Current draw: +5 V - 16mA, +12 V - 35 mA, -12 V - 12 mA • Needs the +5 Volt-rail of the powerbus • Functional block diagram Manual DELUXE DELAY Eurorack V1.1 © Stereoping Germany, Hattingen 03/2015... -
Page 3: Connecting To Power
Interfacing power is the same as on any other module for eurorack. The pic to the right shows the typical eurorack power bus pins. The DELUXE DELAY needs the +5 Volt rail to be supplied. !! Please pay double attention to put the connector cable in the right direction on the module and the powerbus connector. - Page 4 'Ordinary' delays endlessly paint the input signal with their echos, often resulting in an undefined sound-mash. Our DELUXE DELAY allows you e.g. to send a drumloop through it and put delay on JUST a snaredrum, keeping the rest of the loop completely dry.
- Page 5 The switch will be mixed with the CV-jack and is kind of simple ON/OFF function on the DELUXE DELAY. In short: you can fully open or close the Send-VCA without having to use any CVs or cables.
- Page 6 CV down to a reasonable level. The CV and the position of the delay-knob will be mixed inside the module. The area of modulation will therefore be shifted if you turn the delay knob. Manual DELUXE DELAY Eurorack V1.1 © Stereoping Germany, Hattingen 03/2015...
- Page 7 Q/Resonance you can additionally influence the feedback and it's character and response. Distoring the Delaychip with „Send Level“ and slightly modulating the bandpass frequency give the delaysound a nice reggae-feeling. Manual DELUXE DELAY Eurorack V1.1 © Stereoping Germany, Hattingen 03/2015...
- Page 8 Here you get the output of the module - the mix of dry and wet signal - according to the position of "Mix". Now you're equipped with all you need to know. Have fun experimenting and meeting the Stereoping DELUXE DELAY. Manual DELUXE DELAY Eurorack V1.1 © Stereoping Germany, Hattingen 03/2015...
- Page 9 LOVE our product, go ahead. We are looking forward to receiving your Mail! hello@stereoping.com Adress Stereoping Gregor Zoll Musikelektronik Waldstrasse 52 45525 Hattingen Germany E-Mail hello@stereoping.com Homepage http://www.stereoping.com Manual DELUXE DELAY Eurorack V1.1 © Stereoping Germany, Hattingen 03/2015...
