2.3.2 Connect Programming Cable

The programming cable connects the RabbitCore module to the PC running Dynamic C to
download programs and to monitor the RabbitCore module for debugging.
Connect the 10-pin connector of the programming cable labeled
the RCM3000 series module as shown in Figure 4. Be sure to orient the marked (usually
red) edge of the cable towards pin 1 of the connector. (Do not use the
which is used for a normal serial connection.)
NOTE: Be sure to use the programming cable supplied with this Development Kit—the
programming cable has color shrink wrap around the RS-232 converter section located in
the middle of the cable. Programming cables with clear shrink wrap from other Z-World
or Rabbit Semiconductor kits were not designed to work with RCM3000 series modules.
RN1
GND NC PD1 PD0
PD7
GND +3.3V PD6
VBAT
VRAM PD3 PD2
EXT
/RES
SM1 PD5 PD4
IN
SM0 /IORD PG3 PG2
PG1
/IOWR PG4 PG0
PG5 PG6 PD4 PD5
PG7 PE0 PC5 PC4
PE1 PE3 PC3 PC2
PE4 PE5 PC1 PC0
PE6 PE7 PF0 PF1
PF7 PF6 PF2 PF3
PA0
PF5 PF4 PA1
PB7 PB6 PA2 PA3
PB5 PB4 PA4 PA5
J14
PB3 PB2 PA6 PA7
PB0 PE4
/RES GND
J3
J1
C1
RC15
R1 RC19
R4
RC20
R3
C3
R5
R2
RC14
RC17
RC16
RC13
RC12
R21
RC10
RC11
GND NC PD1 PD0
GND +3.3V PD7 PD6
VBAT
VRAM PD3 PD2
EXT
/RES
SM1 PD5 PD4
IN
SM0 /IORD PG3 PG2
/IOWR PG4 PG1
PG0
PG5 PG6 PD4 PD5
PG7 PE0 PC5 PC4
PE1 PE3 PC3 PC2
PE4 PE5 PC1
PC0
PE6 PE7 PF0 PF1
PF7 PF6 PF2 PF3
PF5 PF4 PA0 PA1
PB7 PB6 PA2 PA3
J12
PB5 PB4 PA4 PA5
PB3 PB2 PA6 PA7
PB0 /RES PE4
GND
J4

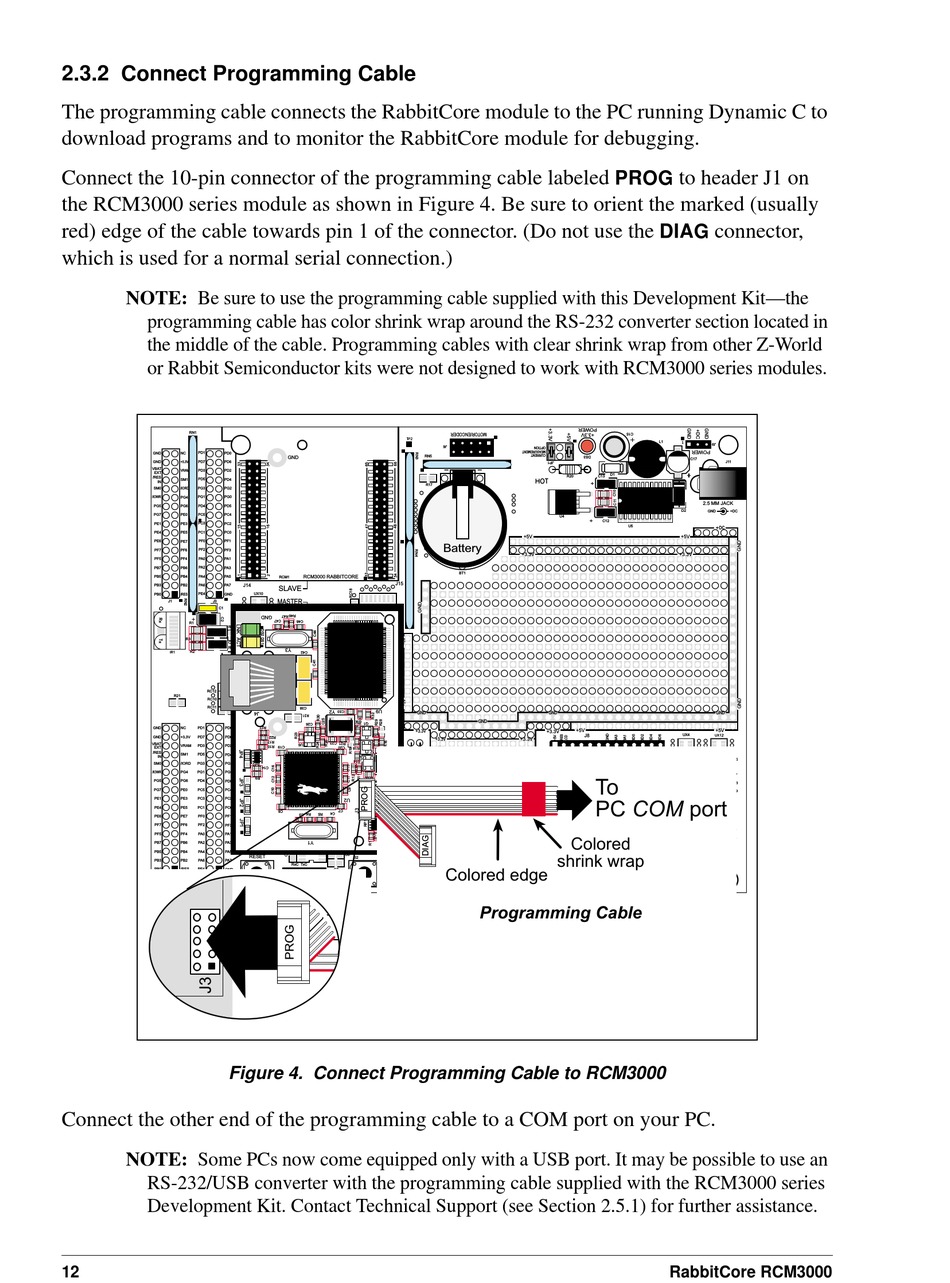

Figure 4. Connect Programming Cable to RCM3000
Connect the other end of the programming cable to a COM port on your PC.
NOTE: Some PCs now come equipped only with a USB port. It may be possible to use an
RS-232/USB converter with the programming cable supplied with the RCM3000 series
Development Kit. Contact Technical Support (see Section 2.5.1) for further assistance.
