2.3.2 Connect Programming Cable
The programming cable connects the RCM2100 module to the PC running Dynamic C, to
download programs and to monitor the RCM2100 for debugging.
Connect the 10-pin connector of the programming cable labeled
the RCM2100 module as shown in Figure 6 below. Be sure to orient the red edge of the
cable towards pin 1 of the connector. (Do not use the
normal serial connection.)

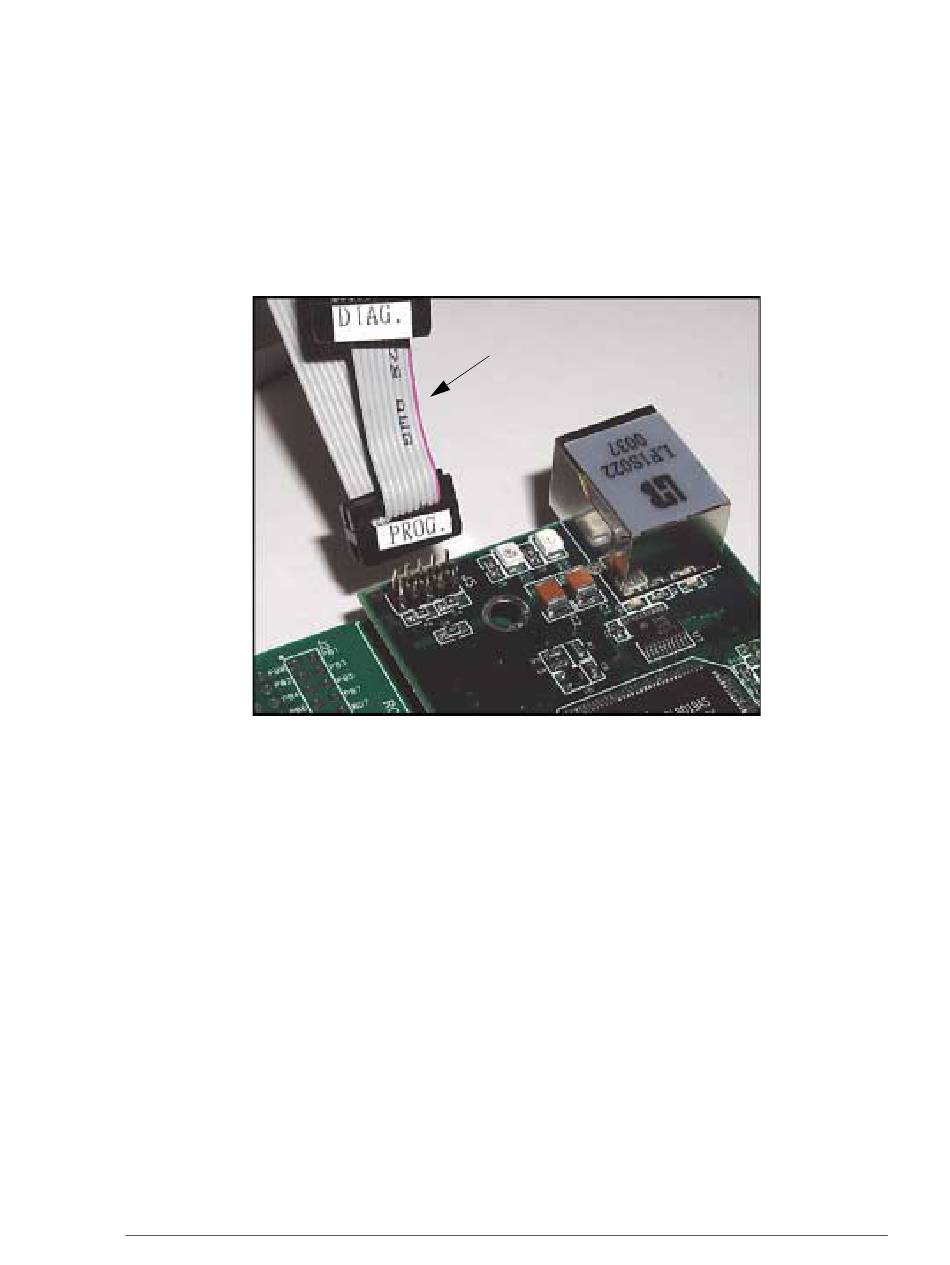

Figure 6. Attaching Programming Cable to the RCM2100
NOTE: The stripe on the cable is towards pin 1 of the header J5.
Connect the other end of the programming cable to a COM port on your PC. Make a note
of the port to which you connect the cable, as Dynamic C needs to have this parameter
configured when it is installed.
NOTE: COM 1 is the default port used by Dynamic C.
Getting Started
PROG
connector, which is used for a
DIAG
Note Pin 1 Indicator
to header J3 on
13
