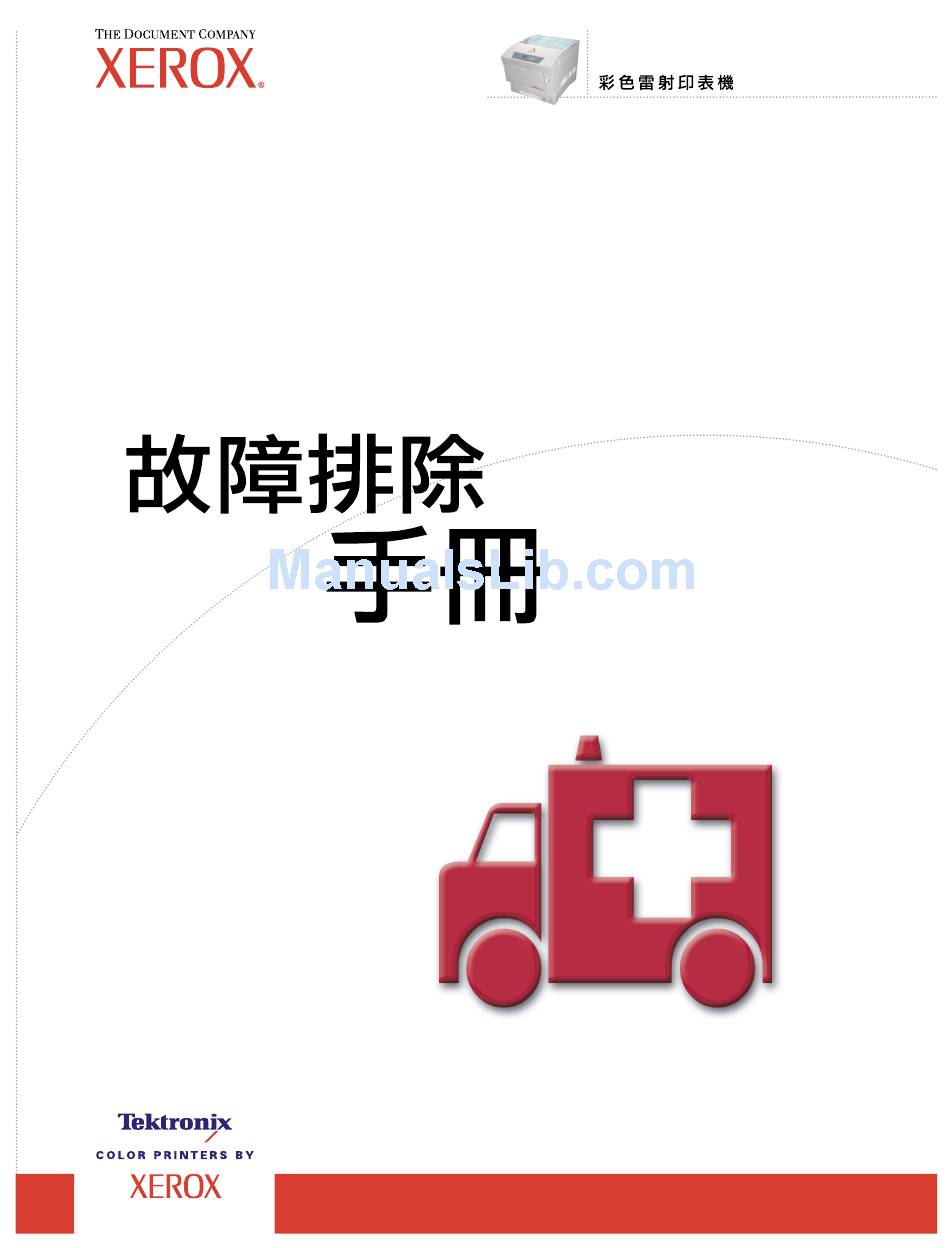

  • Page 1 6200 P h a s e r ®...
  • Page 2 SPARC International, Incorporated SPARCstation™ SPARC International, Incorporated Sun Microsystems, Incorporated ® UNIX X/Open Company Limited TAR ® Xerox Corporation NERGY NERGY NERGY John Halleck SHA-1 4,558,302 ® Phaser 6200 PANTONE PANTONE PANTONE Color Reference Manuals PANTONE PANTONE PANTONE Pantone, Inc.
  • Page 3 ............1 .
  • Page 4 Phaser® 6200 6200-51 OK ( OK ( P h a s e r 6 2 0 0 6200-69 © 2002 Xerox Corporation...
  • Page 5 PHASER 6200 COLOR PRINTER ® Help Guide Resources CentreWare Internet Services (IS) ® Printer management tool that helps System Administrators: • Configure and manage multi-vendor printers. • Provide remote diagnostics and troubleshooting for printer problems. • Monitor printer and consumable status. •...

  • Page 6: Troubleshooting

    Button You can press the Information button at any time to get additional information about the message displayed on the front panel. Printable pages To print a Menu Map, navigate the front panel and its menu items: and press OK. 1.

  • Page 7: Networking Problems

    PhaserSMART After you launch PhaserSMART, select the Troubleshooting Guide to help identify your printer's problem. Starting with Print/Image Quality Issues, PhaserSMART will walk you through a decision tree to resolve print-quality problems. Interactive Documentation CD-ROM For print-quality problems, see the Troubleshooting section. Networking problems Printable pages To obtain information on printer options, configurations and settings:...
  • Page 8 Phaser® 6200 6200-51 OK ( OK ( OK ( OK ( © 2002 Xerox Corporation...

  • Page 9: Repeating Defects

    PHASER 6200 COLOR PRINTER ® Diagnose Print Quality Problem Solution Dark Lines/Smudges or Streaks- From the printer's front panel Support Menu select Improve All Colors Print Quality?, then select Print Paper Tips Page press OK. Black and/or colored areas appear on the page in Ensure the paper you are using is the correct type for the all colors and/or in non-print areas.

  • Page 10: Incomplete Fusing

    Problem Solution Incomplete Fusing From the printer's front panel Support Menu select Improve Print Quality?, then select Print Paper Tips Page. Toner appears to be pulled off print, or is easy to rub off. Ensure the paper you are using is the correct type for the printer and is properly loaded.
  • Page 11 Problem Solution Printing Is Too Light or Too Dark Try a different Color Matching mode. From the printer's front panel Support Menu select Improve Print Quality?, then in All Colors Page. and press OK. select Print-Quality Tips Note: TekColor Correction set to Automatic provides the...
  • Page 12 Phaser® 6200 6200-51 OK ( OK ( OK ( OK ( OK ( OK ( © 2002 Xerox Corporation...
  • Page 13 PHASER 6200 COLOR PRINTER ® Color Registration Menu Color Registration Menu allows you to adjust the printer's cyan, magenta and yellow against black to ensure that the colors are properly aligned. Steps: You can adjust the settings from -7 to +7 units. (left to right). See the images on the left. 0 is always the printer's current color registration setting.

  • Page 14: Lighten/Darken Colors

    PHASER 6200 COLOR PRINTER ® Color Calibration Tutorial Overview Color calibration procedures adjust the printer for optimal color output. Color settings may need adjustment upon initial printer set-up or when toners and imaging units are replaced. There are two procedures: Lighten/Darken Colors Balance Colors.
  • Page 15 You can adjust the settings from -40 to +40 units. The thickness of the rectangle's dashed lines is 1 unit. 12 units move the rectangle 1 mm. The maximum distance the rectangle can be moved (-40 to +40) is 6.7 mm. Phaser 6200 Color Printer Phaser 6200 Color Printer...
  • Page 16 Phaser® 6200 1 — — 2 — — 3 — — 4 — — 5 — — 6200-60 P h a s e r 6 2 0 0 6200-69 Xerox www.xerox.com/officeprinting/6200support/ © 2002 Xerox Corporation...
  • Page 17 Phaser® 6200 Xerox Phaser Xerox http://www.xerox.com/officeprinting/6200supplies 6200-65 Phaser® 6200...
  • Page 18 6200-61 6200-63 6200-62 Phaser® 6200...
  • Page 19 6200-64 PhaserSMART 6200-65 6200-19 Phaser® 6200...
  • Page 20 6200-64 PhaserSMART 6200-13 6200-66 Phaser® 6200...
  • Page 21 6200-64 6200-09 6200-08 6200-35 Phaser® 6200...
  • Page 22 6200-15 6200-67 6200-66 Phaser® 6200...
  • Page 23 6200-16 6200-64 PhaserSMART 6200-35 Phaser® 6200...
  • Page 24 6200-14 6200-04 6200-15 Phaser® 6200...
  • Page 25 6200-67 6200-66 6200-64 Phaser® 6200...
  • Page 26 Phaser® 6200 (CRC) ) — — — — — Phaser® 6200 © 2002 Xerox Corporation...
  • Page 27 6200-66 6200-23 6200-12 Phaser® 6200...
  • Page 28 6200-24 6200-25 6200-64 Phaser® 6200...
  • Page 29 Phaser® 6200...
  • Page 30 4.5 kg 10 lbs P u l l T r e k T i r e r D r a T i r a r e Z i e h e n " N T i r a r P u x e Phaser®...
  • Page 31 Phaser® 6200...
  • Page 32 Phaser® 6200...
  • Page 33 Phaser® 6200...
  • Page 34 Phaser® 6200...
  • Page 35 Phaser® 6200...
  • Page 36 Phaser® 6200...
  • Page 37 Phaser® 6200...
  • Page 38 Phaser® 6200...
  • Page 39 Phaser® 6200 © 2002 Xerox Corporation...
  • Page 40 Phaser® 6200...
  • Page 41 Phaser® 6200 (CRC) 14 © 2002 Xerox Corporation...
  • Page 42 Phaser® 6200...
