Summary of Contents for Inter-m H-3200

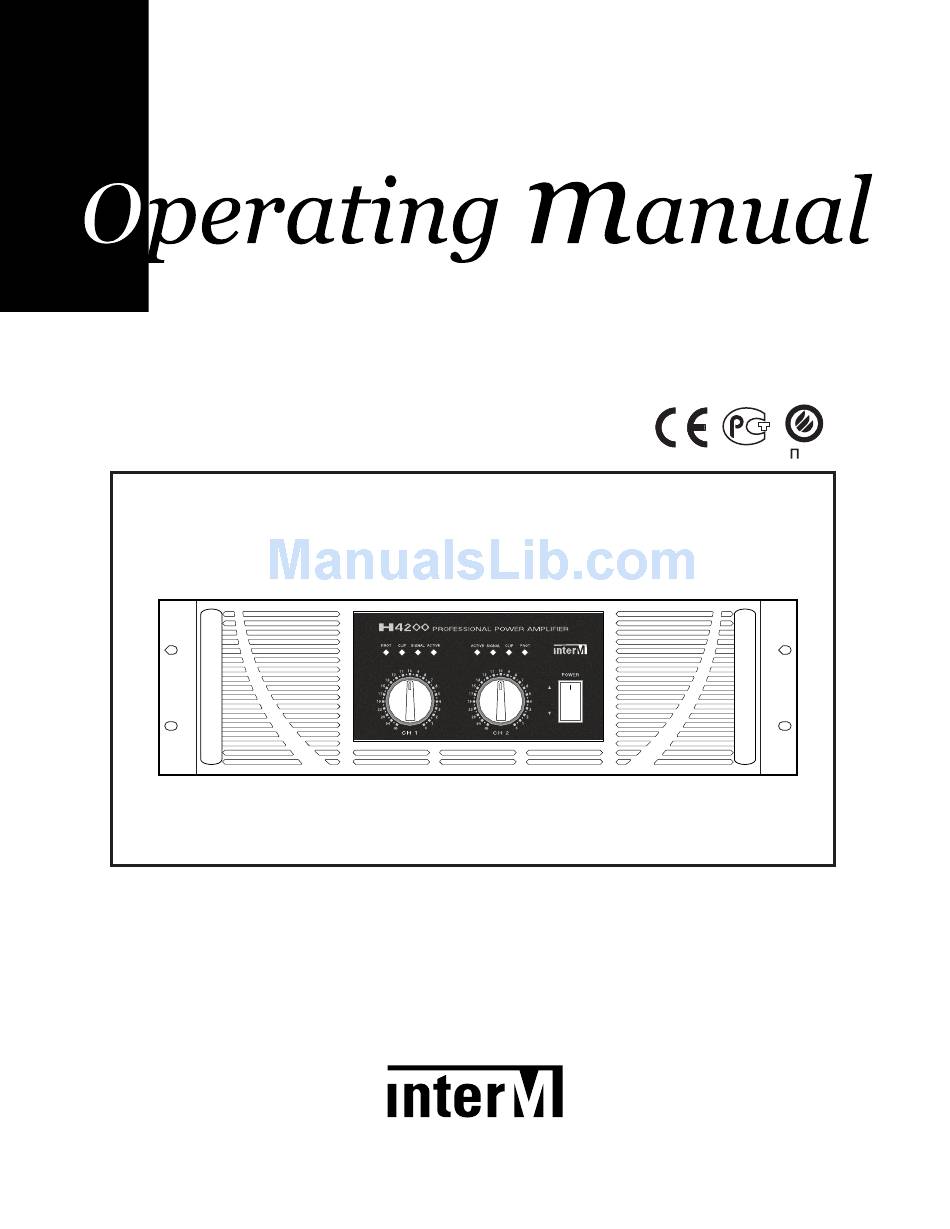

- Page 1 OC03 OC03 B370031 H-3200/4200 Professional Power Amplifier...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning............................1 Unpacking ............................2 Short Form Instructions........................2 Installation Environment............................3 Important Safety Instructions......................3 Description ............................4 Features ............................4 Accessories.............................4 Front Panel ............................5 Rear Panel ............................7 Connections .............................9 Applications ..........................10 Block Diagram ..........................13 Specifications ..........................14 Service Procedures............................16 Schematic .............................16 Parts List ............................16 Variations and Options .......................16 Warranty... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Unpacking
8. The product is ready for operation. Slowly increase the LEVEL control to the desired operating level. Avoid illuminating the PEAK indicator and do not apply too much power to the speakers. 9. Operate the product and the system in a manner which DOES NOT illuminate the PEAK warning indicator. H-3200/4200... -
Page 5: Installation
S3125A S3125A H-3200/4200... -
Page 6: Description
PROFESSIONAL POWER AMPLIFIER Description Description - H-3200 A 3U rack space, 2 channel amplifier capable of 3200W into 4Ω load (bridged mono). - H-4200 A 3U rack space, 2 channel amplifier capable of 4200W into 4Ω load (bridged mono). Features Features - 2Ω... -
Page 7: Front Panel
These controls adjust the input signal level for each channel. In stereo or parallel mode the controls will adjust the signal level independently for each channel. In the bridge mono mode channel 2 will be turned fully clockwise and channel 1 will be turned clockwise only as needed to achieve the desired level. H-3200/4200... - Page 8 It is wise to reduce the level controls before applying AC power. The circuit breaker protects the amplifier by switching OFF the AC MAINS power if the amplifier operates abnormally due to overload or malfunction. Switch ON to reset. H-3200/4200...
-
Page 9: Rear Panel
Bridged Mono operation requires a different method of interconnection to the speaker cables than normal Stereo operation. Also be sure that the amplifier is in the correct mode before connecting the speaker load. - STEREO MODE - BRIDGED MODE CH1 AMP OUTPUT SPEAKON AMP OUTPUT CH1/CH2 MONO(BTL) NOT CONNECTED H-3200/4200... - Page 10 2 input. Do not connect speaker cables to the negative outputs. 7. INPUT SENSITIVITY SWITCH The input sensitivity may be reduced by either -6dB or -12dB as needed to reduce the possibility of excessive input signal levels overdriving the amplifier. H-3200/4200...
-
Page 11: Connections
PROFESSIONAL POWER AMPLIFIER Connections Connections Inter-M products are wired to reflect accepted wiring practices used throughout the world. Balanced XLR connectors are wired as described: Pin #1 Shield Pin #2 Positive/Hot Pin #3 Common/Cold Balanced 1/4” TRS connectors are wired as described:... -
Page 12: Applications
- Binding Post Outputs CH1 AMP OUT CH2 AMP OUT - 2 Channels & 2 Speakon™Outputs CH1/CH2 AMP OUT (1+ 1–) - 2 Channels & 1-Speakon™Outputs CH1 AMP OUT (1+ 1–) CH2 SPEAKON: NOT CONNECTED CH2 AMP OUT (2+ 2–) H-3200/4200... - Page 13 PROFESSIONAL POWER AMPLIFIER Applications Applications - Bridge Mono Installation - Binding post outputs BRIDGED MONO - Speakon™Outputs NOT CONNECTED BRIDGED OUTPUT (1+ 2+) NOT CONNECTED CH2 SPEAKON: NOT CONNECTED H-3200/4200...
- Page 14 PROFESSIONAL POWER AMPLIFIER Applications Applications - Linked Installation: Linking works with Stereo/Parallel or Bridged Mono Operation CASSETTE DECK AUDIO MIXER GUITAR SPEAKER SPEAKER H-3200/4200...
-
Page 15: Block Diagram
PROFESSIONAL POWER AMPLIFIER Block Diagram Block Diagram H-3200/4200... -
Page 16: Specifications
PROFESSIONAL POWER AMPLIFIER Specifications Specifications - ELECTRICAL H-3200 H-4200 Power Output Level STEREO 1kHz both channels driven =8Ω @ 0.1% THD 800W 1000W =4Ω @ 0.1% THD 1200W 1600W =2Ω @ 0.1% THD (1ch driven) 1600W 2100W BRIDGED =8Ω 1kHz @ 0.1% THD... - Page 17 PROFESSIONAL POWER AMPLIFIER Typical Current LOAD 1/3 Power Full Power (1/8 Power) 8ohm 5.2A 9.3A 120V 4ohm 8.4A 15.4A 37.6A 2ohm 9.2A 55.6A H-3200 8ohm 2.2A 5.7A 12.6A 230V 4ohm 4.3A 9.3A 21.2A 2ohm 5.7A 14.2A 32.4A 8ohm 11.8A 26.8A 120V 4ohm 8.6A...
-
Page 18: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region. - Page 19 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
