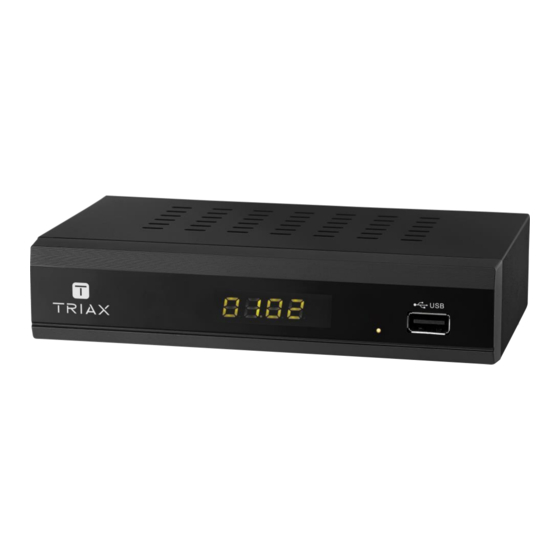

- Page 1 User manual TR 43 DVB-T HDTV receiver Model Item no. TR 43 DVB-T HDTV receiver 305272B Version Date 02/2016...
-
Page 2: Safety Information
TR 43 SAFETY INFORMATION Failure to comply with the specified precautionary measures may cause serious injury to persons or damage to property. The installation and commissioning may only be performed by suitably qualified persons, technicians or installers in compliance with safety regulations. - Page 3 TR 43 built-in installation such as a book case or rack, unless proper ventilation is provided or the video product manufacturer's instructions have been followed. Attachments: Do not use attachments unless recommended by the video product manufacturer as they may cause hazards.
-
Page 4: Table Of Contents
TR 43 Contents SAFETY INFORMATION ............................2 INSTALLATION..........................................2 INTRODUCTION ............................6 Front panel ........................................6 Rear panel ......................................... 6 Remote control ......................................... 7 SYSTEM CONNECTION ..........................8 Connecting the TV ......................................8 Connecting a HiFi system ....................................8 GETTING STARTED ............................. 9 Welcome ........................................... - Page 5 TR 43 PVR Setting ........................................18 TIMESHIFT / RECORD ..........................18 10.1 Timeshift ........................................18 10.2 Record..........................................18 TROUBLESHOOTING ..........................19 SPECIFICATIONS ............................19 Declaration of Conformity ......................................21...
-
Page 6: Introduction
TR 43 INTRODUCTION 1.1 Front panel Display Remote sensor USB port 1.2 Rear panel TV aerial for an external TV aerial RF loop through for an external device Coaxial Digital Audio HDMI output TV Scart for connection to the TV... -
Page 7: Remote Control
TR 43 1.3 Remote control Button Function Standby Switch the STB on and standby For interactive function/Submenu RED/GREEN/ function buttons. SOS (Warning and YELLOW/BLUE distress signals) ►► /◄◄ Search backward /forward PAUSE Pause/Active timeshift function ► PLAY Open interactive service... -
Page 8: System Connection
TR 43 SYSTEM CONNECTION There are many different types of TV and other equipment that you can connect to the STB. In this manual you will see some of the most common ways to connect your equipment. 2.1 Connecting the TV... -
Page 9: Getting Started
TR 43 GETTING STARTED 1.1 Welcome If you use the STB for the first time, the "Welcome" menu appears. Press cursor button to setup the Region, Language, Display Mode and Aspect Mode. Highlight "OK" and press the "OK" button to start channel search. -
Page 10: Operation
TR 43 OPERATION 2.1 Changing Channels There are three ways of channel selection - stepping through the channel list, selection by number and from the on-screen channel list. Stepping through the channel list: To move through the channel list, press the upward arrow or downward arrow key on the remote control. -
Page 11: Edit Channels
TR 43 EDIT CHANNELS 3.1 Edit Channel menu Press the "MENU" button to enter main menu. Press "UP" or "DOWN " button to highlight "Edit Channel", press "RIGHT" button to enter the Edit Channel menu. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK"... -
Page 12: System Setup
TR 43 SYSTEM SETUP 4.1 System setup menu System setup menu allows us to set Language, TV System, Local Time Setting, Timer Setting, Parental Lock, OSD Setting, Favorite, Auto Description Setting and Other. Press the "MENU" button to enter main menu. -
Page 13: Timer Setting
TR 43 4.5 Timer setting This menu allows us to set the program timer. You can set 8 timers. Timer Mode: Off/Once/Daily/Weekly/Monthly Timer Service: Channel/Record Wakeup Channel: You can select a desired channel as the wakeup channel. Wakeup Date: Press numeric button to input date. -
Page 14: Favorite
TR 43 4.8 Favorite This menu allows you to rename the favorite group. In Channel menu, select "Favorite", press "OK" button to enter Favorite menu. Select desired group, press "OK" button to open the mock keypad.Input letter and numeric one by one by pressing the cursor button and press "OK"... -
Page 15: Tools
TR 43 7 TOOLS 7.1 Tools main menu Press the "MENU" button to enter main menu. Press "UP" or " DOWN " button to highlight "Tools", press "RIGHT" button to enter the Tools menu. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK"... -
Page 16: Remove Usb Device Safely
TR 43 7.5 Remove USB device safely In "Tools" menu, select "Remove USB device safely", Press "OK" button to confirm. Then a window is displayed. Press "OK" button again. 8 GAMES This menu allows you to play games. Press the "MENU" button to enter main menu. -
Page 17: Button Combinations
TR 43 9.3 Button combinations Button Music Image Video Record Show Play List Open rename window Move the highlight to the program which you want to lock. Pressing "Green" button, it will ask you to input password. Default Move the highlight to the file which you want to add to password is "0000". -
Page 18: Pvr Setting
Press "STOP" button to stop recording, then a confirmation window appears. Select "Yes" to stop recording. Select "No" to continue recording. NOTE: For recordings/timeshift: Please select a USB 2.0 HDD or USB stick, from a recognized brand, as TRIAX can’t guarantee non recognized brands to function as intended ! -
Page 19: Troubleshooting
TR 43 11 TROUBLESHOOTING In some regions, digital terrestrial signals may be weak. It is therefore advisable to use an antenna amplifier to boost weak signals. Problem Possible cause What to do Mains lead unplugged Check mains lead Standby light not lit ... - Page 20 TR 43...
-
Page 21: Declaration Of Conformity
