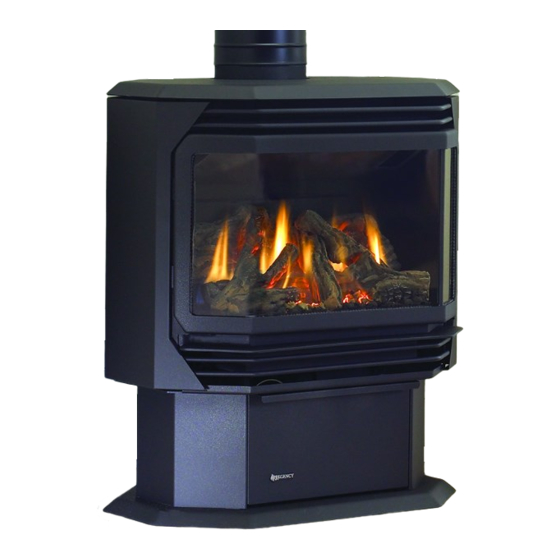

ULTIMATE™ U38 Freestanding Gas Stove
MODELS: U38-NG10 Natural Gas
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach you gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Tested by:
919-480b
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
U38-LP10 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Owners &
Installation Manual
U38-39 Video
www.regency-fire.com
12.14.16
Advertisement
Table of Contents
Related Manuals for Regency ULTIMATE U38
Summary of Contents for Regency ULTIMATE U38
- Page 1 Owners & ULTIMATE™ U38 Freestanding Gas Stove Installation Manual U38-39 Video www.regency-fire.com MODELS: U38-NG10 Natural Gas U38-LP10 Propane WARNING FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 2 Hersey/Intertek for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your Regency Gas Stove.
-
Page 3: Table Of Contents
Wall Thermostat ............18 U38-10 Main Assembly ..........26 DC Spark Igniter Battery Install ........18 U38-10 Burner & Log Assembly ........27 Final Check ..............18 U38-10 Door Assembly ..........28 Wiring Diagrams ............19 Warranty First Fire ..............20 Warranty ..............30 Regency U38-10 ULTIMATE Freestanding Gas Stove ®... - Page 4 8 " (651mm) 4" COLLAR (102mm) 16 " 17" (432mm) (97mm) Regency U38-10 ULTIMATE Freestanding Gas Stove ®...
-
Page 5: Safety Label For The U38-10
This is a copy of the label that accompanies NOTE: Regency units are constantly being ® each ULTIMATE Freestanding Gas Stove. We improved. Check the label on the unit and if have printed a copy of the contents here for your there is a difference, the label on the unit is the review. - Page 6 (e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipm ent, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation. Regency U38-10 ULTIMATE Freestanding Gas Stove ®...
-
Page 7: Before You Start
ALERTED TO THE HAZARDS OF HIGH BARRIER REMOVED FOR SERVICING SURFACE TEMPERATURES, ESPE- AN APPLIANCE MUST BE REPLACED CIALLY THE FIREPLACE GLASS, AND PRIOR TO OPERATING THE APPLIANCE. SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 8: Important Message
Installation b. Dura-Vent Termination Kit c. Set Vent Restrictors. Refer to "Rigid Pipe Venting Arrangement" section. d. Converting a Class-A Metal Chimney or Masonry Chimney to a Direct Vent system. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 9: Clearances To Combustibles
90 degrees. Pipe fresh air into the pedestal area by using duct pipe with a mesh grill at the outside termination. Attach the pipe to the tabs with screws. Side View Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 10: Draft Hood
For altitudes above 2000 ft. we recommend that a minimum flue height of 12 ft. is used. Flue Mounting Bracket Attach the flue mounting bracket with the enclosed screw as shown in the diagram. 6” Decorative Collar 10 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 11: Gas Connection
1/8" wide flat screwdriver. 3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose. 4) Light the pilot and turn the valve to "ON" position. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 12: Conversion Kit From Ng To Lp
11. Unscrew the pilot orifice with the allen side. (Left side shown). key and replace with the LPG pilot orifice in the kit. Installer Notice: These instructions must be left with the appliance. 12 | Regency U38-10 ULTIMATE Freestanding Gas Stove ® 01.07.15 919-504... -
Page 13: Conversion To Lower Btu Rating
12) Check inlet and outlet pressures. 13) Check operation of flame control. Check for proper flame appearance and glow on logs. Position the Log Bracket Restrictor between the Rear Log Bracket and the burner. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 14: Log Set Installation
1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into position. B)02-56 918-039a Page 1 of 2 01/04/08 14 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®... - Page 15 B)02-56 and on top of the cutout on Log A)02-65. 10) Separate platinum embers and place around the lava rock on the burner. Avoid stacking platinum A)02-65 embers. D)02-46 B)02-56 C)02-44 Cutout Regency U38-10 ULTIMATE Freestanding Gas Stove ® Page 2 of 2 918-039a 01/04/08...
- Page 16 fl ows smoothly from one end of burner to the other. If there is any fl ame hesitation, check that area for any blockage of the burner port. A)02-65 A)02-65 B)02-56 E)02-45 E)02-45 C)02-44 Notch 918-039a 01/04/08 16 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®...
-
Page 17: Front Door Installation
Note: The door latch may require adjust- ment as the door gasket material compresses after a few fires and after glass replacement. Turn the latch catch inward or outward to loosen or tighten. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 18: Wall Thermostat
One screw is on the left hand side on an interior wall. and the other on the right hand side. (Left side shown). Regency offers an optional programmable ® thermostat but any 250-750 millivolt rated non- anticipator type thermostat that is CSA, ULC or UL approved may be used. -
Page 19: Wiring Diagrams
Wiring errors can cause your protection against shock hazard improper and dangerous and should be plugged directly into operation. a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 20: First Fire
7) The unit should never be turned off, and on again without a minimum of a 60 second wait. Diagram 1 8) Hook up remote receiver to wire marked 're- 20 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 21: Copy Of The Lighting Plate Instructions
Appuyer sur le bouton "OFF" de la télécommande ou positionner l'interrupteur du récepteur sur "OFF". Mettre le bouton de contrôle de gaz sur ''OFF'' pour éteindre la veilleuse. Pour économiser le carburant, éteindre la veilleuse quand l’appareil reste longtemps inutilisé. DO NOT REMOVE THIS INSTRUCTION PLATE 919-456 Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 22: Pilot Adjustment
Note: Any damage due to carboning result- ing from improperly setting the aera- tion controls is NOT covered under warranty. Note: Aeration Adjustment should only be performed by an authorized Regency ® Installer at the time of installation or service. 22 |... -
Page 23: Maintenance
WHICH HAS BEEN UNDER WATER. 6) Verify proper operation after servicing. The heater is finished in a heat resistant paint and should only be refinished with heat resist- ant paint (not with wall paint). Regency uses ® LOG REPLACEMENT StoveBright Paint - Metallic Black #6309. -
Page 24: Fan Maintenance
Fan Control Module (FCM) 24 | Regency U38-10 ULTIMATE Freestanding Gas Stove ® Receiver Hearth Mount FCM-COM... -
Page 25: Valve Replacement
6) Carefully remove the logs and lava rock. reverse these instructions. 7) At this point you should disconnect the gas at the valve. 8) Remove the burner by removing the two 1/4" hex head screws. See diagram below. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 26: U38-10 Main Assembly
732-084 Pedestal Back *Not available as a replacement part. 730-531 Short Side Panel Door Assy 560-031 Hinge for Side Panel 904-258 Side Panel Door Magnet (SEPARATE ILLUSTRATION ON GLASS DOOR FRONTS) 26 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 27: U38-10 Burner & Log Assembly
DC spark box wire 911-030 Fan Control Module 732-969 Conversion Kit LP 911-029 Valve/Remote Wiring Harness 911-093 120 Volt Power Cord (10 foot extension) 910-233 Fan Thermodisc *Not available as a replacement part. Regency U38-10 ULTIMATE Freestanding Gas Stove ®... -
Page 28: U38-10 Door Assembly
Brushed Nickel Wrap Door - Complete 101) 846-570 Door Gasket Kit 105) Ceramic Paper 107) 936-243 Glass Gasket 111) Door Frame Fibre Paper 208) 940-325/P Wrap Glass *Not available as a replacement part. 28 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®... - Page 29 Regency U38-10 ULTIMATE Freestanding Gas Stove ®...
-
Page 30: Warranty Warranty
FPI is not responsible for results or costs of workmanship of unauthorized FPI dealers or agents in the negligence of their service work. Revision Date: December 2016 Regency Gas Products Warranty 30 | Regency U38-10 ULTIMATE Freestanding Gas Stove ®... - Page 31 Freight damages for products or parts are not covered under the terms of the warranty. Products made or provided by other manufacturers and used in conjunction with the FPI appliance without prior authorization from FPI may void this warranty. Revision Date: December 2016 Regency Gas Products Warranty Regency U38-10 ULTIMATE Freestanding Gas Stove ®...
- Page 32 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form at http://www.regency-fire.com/Customer-Care/Warranty-Registration.aspx...
- Page 33 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 36 Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________ U38-39 Video Regency is a trademark of FPI Fireplace Products International Ltd. ® Printed in Canada © Copyright 2016, FPI Fireplace Products International Ltd. All rights reserved.
