Regency ULTIMATE U39 Owners & Installation Manual

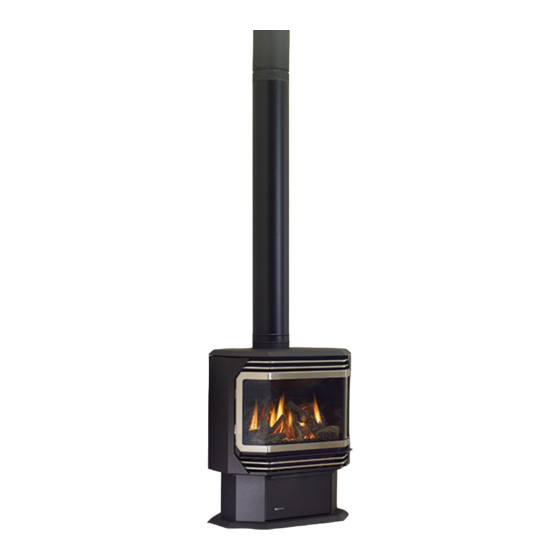

Direct vent freestanding gas stove
Hide thumbs
Also See for ULTIMATE U39:
- Owners & installation manual (48 pages) ,
- Brochure & specs (8 pages) ,
- Owners & installation manual (48 pages)
Table of Contents
Advertisement
Quick Links
Direct Vent Freestanding Gas Stove
WARNING:
If the information in these instructions are not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
Tested by:
918-531
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
www.regency-fi re.com
ULTIMATE U39
MODELS:
U39-NG1 Natural Gas
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Installation Manual
U39-LP1 Propane
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you
cannot reach your gas
supplier, call the fi re department.
Owners &
07/17/06
Advertisement
Table of Contents
Related Manuals for Regency ULTIMATE U39
Summary of Contents for Regency ULTIMATE U39
- Page 1 ULTIMATE U39 Owners & Direct Vent Freestanding Gas Stove Installation Manual MODELS: U39-NG1 Natural Gas U39-LP1 Propane WARNING: FOR YOUR SAFETY If the information in these instructions are not followed exactly, What to do if you smell gas: a fi...
- Page 2 Congratulations! You are the owner of a state-of-the-art ULTIMATE Direct Vent Gas Stove by FPI Fireplace ® Products International Ltd. The Regency Gas Series of hand crafted appliances has been designed to provide you with all the warmth and charm of a woodstove, at the fl ick of a switch. The models U39-NG1, and U39-LP1 of this series has been approved by Warnock Hersey for both safety and effi...
-
Page 3: Table Of Contents
Conversion to Lower BTU Rating ........26 Gas Pipe Pressure Testing ..........26 Aeration Adjustment ............27 Log Set Installation ............27 Front Door Installation ..........28 Wiring Diagrams ............29 Optional Wall Thermostat ...........30 Optional Remote Control ..........30 Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 4: Safety Label
SAFETY LABEL ® label is located on the inside of the drop NOTE: Regency units are constantly This is a copy of the label that accompanies being improved. Check the label on the down pedestal door. each ULTIMATE Direct Vent Freestanding unit and if there is a difference, the label Gas Stove. -
Page 5: Requirements
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 6: Installation
fi rst. Consult the building authority HOUSE FIRE. having jurisdiction to determine the need for a ® This Regency Mobile/Manufactured permit prior to starting the installation. Home Listed appliance comes factory C H I L D R E N... -
Page 7: General Safety Information
Minimum ceiling height is 36" / 914 mm from top d. Remote Control of unit. 7) Venting terminals shall not be recessed into 8) Final check. Refer to the "Final Check" a wall or siding. section. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 8: Manufactured Mobile Home Additional Requirements
When selecting a location for your stove, ensure that the clearances listed above are met as well as ensuring that there is adequate accessibility for servicing and proper operation. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 9: Exterior Vent Terminal Locations
INSTALLATION EXTERIOR VENT TERMINAL LOCATIONS Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 10: Rigid Pipe Venting Components List
Vinyl Siding Shield for Riser Vent Terminal 946-506/P Vent Guard (Optional) 946-208/P Vent Guard (Optional) - Riser Vent Terminal 640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap 946-206 Vinyl Siding Standoff - AstroCap Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 11: Rigid Pipe Venting Systems
American Metal Products Ameri Vent Direct Vent, Security Secure Vent ® , Selkirk Direct-Temp. AstroCap is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 12: Installation Precautions
Exercise extreme caution when using ladders or on roof tops. Be aware of electrical wiring locations in walls and ceilings. Vent Restrictor setting at Vent Restrictor setting at 30,000 Btu/h 38,000 Btu/h Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... - Page 13 4 feet total vertical and max. 4 feet total horizontal. Please note min. 1 foot between 90 elbows is required. Lengths do not include elbow indicated Vent restrictor position A (fully open). Refer to the "Venting Arrangement" section. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
-
Page 14: Dv Stove Horizontal Vent Kit Installation
Be sure to check vent vertical centerline of the starter collar termination area after snow falls, on the unit. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... - Page 15 14) Secure the 4" dia. fl ex liner with adapter brick, concrete, or other types of onto the stove collar. Put a bead of Mill-Pac sidings. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
-
Page 16: Dura-Vent Termination Kit
COMPONENTS mination Caps You will require the following components with ® your new Regency Direct Vent Freestanding Gas Stove. Please review your product to make sure you have everything you need. In the event that you are missing any part, contact your dealer. - Page 17 Note: Riser Vent connection. is only for use in above grade terminations. Diagram 2 Diagram 3a Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
- Page 18 Step 2. Frame the hole as paint and attach with screws provided. Apply shown in diagram 10. decorative brass or chrome trim if desired. See diagram 7. Diagram 5 Diagram 7 Diagram 10 Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
-
Page 19: Cathedral Ceilings
0/12 - 2/12 4" the problem. 2/12 - 7/12 5-1/2" Diagram 13 7/12 - 12/12 6-3/4" 12/12 - 24/12 7-1/2" 24/12+ 12-1/2" Diagram 12 Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 20: Converting A Class-A Metal Chimney Or Masonry Chimney To A Direct Vent System
fi ttings and ash dumps Adaptor using 3 sheet shall be secured in place and sealed before metal screws. installing a Direct Vent system within the Diagram 2. chimney. Diagram 2 Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... - Page 21 Diagram 7. opening and the mounting holes line up with with an adjustable length. the masonry wall. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
-
Page 22: Gas Connection
Retro Connector may be completed with a section of black direct vent pipe, together Electrical: 120 V. 1.13A 60Hz. with an adjustable length pipe section. Circulation: Variable speed fan, 125/75 Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 23: Conversion Kit# 731-969 From Ng To Lp
Installation of LPG Conversion Kit: 1) Shut off the gas supply. 2) Open the front door and carefully remove the logs and lava rock. Fig.4 Fig. 1 Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... - Page 24 SIT Valve with the screw, which is provided in the kit. 22) Remove the back pedestal cover by unscrewing the 4 screws. 15) Pull off the pilot cap to expose the pilot orifi ce. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
- Page 25 32) Put on the plastic split bushing. 41) Check for gas leaks. 42) Check inlet and outlet pressures. 43) Check operation of fl ame control. 44) Check for proper fl ame appearance and glow on logs. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
-
Page 26: Conversion To Lower Btu Rating
1/2 psig. (3.45 Position the Log Bracket Restrictor between kPa). Disconnect piping from valve at pressures the Rear Log Bracket and the burner. over 1/2 psig. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 27: Aeration Adjustment
NOT covered under warranty. Note: Aeration Adjustment should only be Embers Embers performed by an authorized Regency ® 3) Place Rear Log A)02-65 on the two pins on Installer at the time of installation or the rear log support. -
Page 28: Front Door Installation
The door latch may require adjustment as the door gasket material compresses after a few fi res Notch Cutout and after glass replacement. Turn the latch catch inward or outward to loosen or tighten. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 29: Wiring Diagrams
This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 30: Optional Wall Thermostat
(Two-Wire) When Using Wall Thermostat (CP-2 System) A wall thermostat may be installed if desired. ® Use the Regency Remote Control Kit approved Connect the wires as per the wiring diagrams. for this unit. Use of other systems may void Note that the wires are connected to the "TH"... -
Page 31: Operating Instructions
7) The unit should never to turned off and on continue to burn. If the pilot does not remain non-abrasive cleaner and NEVER clean without a minimum of a 60 second wait. the glass while it is hot. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 32: Normal Operating Sounds Of Gas Appliances
CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures ® keep children, clothing and furniture, gasoline and other liquids having fammable vapors away. Keep burner Regency gas appliances use high tech and control compartment clean. See installation and operating instructions accompanying appliance. -
Page 33: Maintenance
It may be caused by having excessive not block the pilot. Note: If you have an incorrect fl ame pattern, lateral runs, too many elbows, and exterior contact your Regency ® dealer for portions of the system being exposed to cold 6) Keep the area near the appliance clear and further instructions. -
Page 34: Log Replacement
In the event that you break your glass and side glass by impact, purchase your replacement door from onto extrusions ® an authorized Regency dealer only, and follow as per diagram. our step-by-step instructions for replacement. The glass is not sold separately, as it must be properly sealed in the door frame. -
Page 35: Fan Maintenance
Do not cut or remove the grounding prong from this plug. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 36: Removing Valve
See diagram below. Note: Use a magnetic type screwdriver if possible. 8) Remove all 18 screws holding the burner tray assembly in place. 9) Carefully lift the burner tray assembly out. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 37: Parts List
Short Side Panel Door Assy (Left Side) 560-031 Hinge for Side Panel 904-258 Side Panel Door Magnet 948-255 Door Latch c/w Hook Flex Pipe 3" ID Hose Clamp 910-233 Thermodisc - Fan Auto/On/Off Mounting Bracket - Thermodisc Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 38: U39 Burner & Log Assembly
Burner Assembly (NG/LP) 260-565 Air Shutter Gear Assembly - Female 904-565 Hex Key 3/16" AF 630-009 Gasket-Burner Tray/Air Passage Air Shutter Gear Assembly - Male *Not available as a replacement part. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... -
Page 39: U39 Door Assemblies
940-323/P Side Glass 107) 936-243 Glass Gasket 108) 940-322/P Centre Glass 111) Door Frame Fibre Paper 112) 750-015 Door Glass Extrusion 208) 940-325/P Wrap Glass *Not available as a replacement part. Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove... - Page 40 NOTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
- Page 41 NOTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
- Page 42 NOTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Regency ® U39 ULTIMATE Direct Vent Freestanding Gas Stove...
-
Page 43: Warranty
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy. Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from Regency ®... - Page 44 Limited Lifetime Warranty to the original purchaser of ® a Regency Product. See the inside back cover for details. ® Register your Regency online at http://www.regency-fi re.com Installer: Please complete the following information Dealer Name & Address: ______________________________________________ ___________________________________________________________________...
