Signet 8550-3 User Manual

‡ SIGNET

8550-3 Flow Transmitter

3-8550.090-3
WARNING!
• Remove power to unit before wiring input and
output connections.
• Follow instructions carefully to avoid personal injury.
1. Specifications

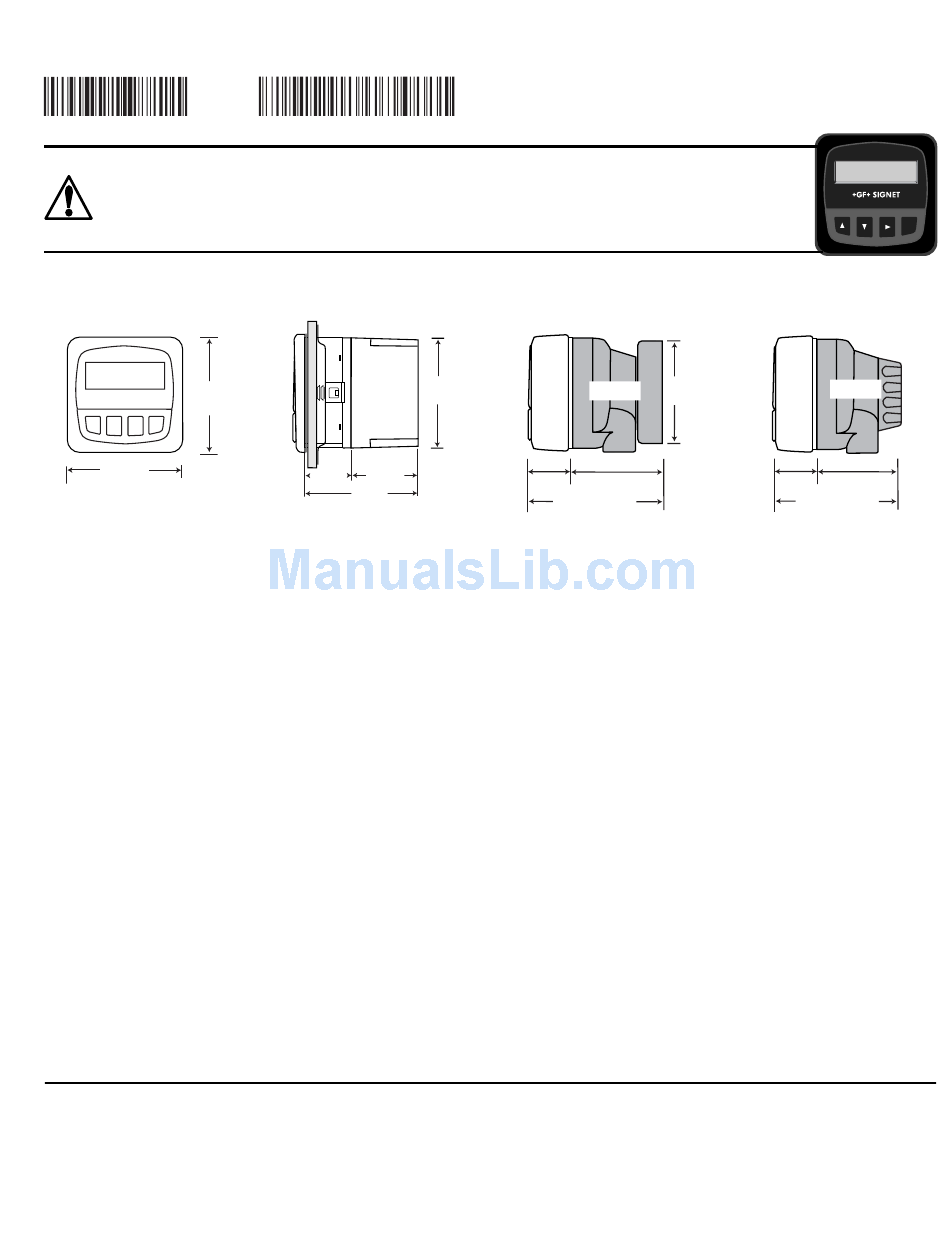

Dimensions
96 mm
(3.8 in.)
96 mm
(3.8 in.)
FRONT VIEW
Field Mount &
Panel Mount
General
Compatibility: +GF+ SIGNET Flow Sensors (w/freq out)
Accuracy: ±0.5 Hz
Enclosure:
• Rating: NEMA 4X/IP65 front
• Case: PBT
Panel case gasket: Neoprene
• Window: Polyurethane coated polycarbonate
• Keypad: Sealed 4-key silicone rubber
• Weight: Approx. 325g (12 oz.)
Display:
• Alphanumeric 2 x 16 LCD
• Update rate: 1 second
• Contrast: User selected, 5 levels
• Accuracy:
• Thermal sensitivity shift: ±0.005% of reading per ºC
Electrical
• Power: 12 to 24 VDC ±10%, regulated, 122 mA max.
Sensor Inputs:
• Range: 0.5 to 1500 Hz
• Sensor power: 2-wire: 1.5 mA @ 5 VDC ± 1%
3 or 4 wire: 20 mA @ 5 VDC ± 1%
• Optically isolated from current loop
• Short circuit protected
2. Installation
ProcessPro transmitters are available in two styles: panel mount and field mount. The panel mount is supplied with the necessary
hardware to install the transmitter. This manual includes complete panel mounting instructions.
Field mounting requires one of two separate mounting kits. The 3-8051 integral kit joins the sensor and instrument together into a
single package. The 3-8050 Universal kit enables the transmitter to be installed virtually anywhere.
Detailed instructions for integral mounting or other field installation options are included with the 3-8051 Integral kit or the 3-8050
Universal kit.
F-4/03 English
Optional
Rear
Cover
56 mm
41 mm (2.2 in.)
)
(1.6 in.
97 mm
(3.8 in.)
SIDE VIEW
Panel Mount
±0.5% of reading @25ºC
Contents
1. Specifications
2. Installation
3. Electrical Connections
4. Menu Functions
92 mm
8050
(3.6 in.)
42 mm 64 mm
(1.7 in.) (2.5 in.)
106 mm (4.2 in.)
SIDE VIEW
Field Mount w/
8050 Universal base
Current output:
• 4 to 20 mA, isolated, fully adjustable and reversible
• Max loop impedance:
• Update rate: 100 ms
• Accuracy: ±0.03 mA
Open-collector outputs, optically isolated:
• 50 mA max. sink, 30 VDC maximum pull-up voltage.
• Programmable for:
• High or Low setpoint with adjustable hysteresis
• Pulse proportional to rate or volume (max 300 pulses/min).
Environmental
• Operating temperature:
• Storage temperature:
• Relative humidity:
• Maximum altitude:
• Insulation category:
• Pollution degree:
Standards and Approvals:
• CSA, CE, UL listed
• Immunity:
• Emissions:
• Manufactured under ISO 9001 and ISO 14001
82 mm
(3.23 in.)
42 mm
(1.7 in.)
102 mm (4.0 in.)
50 Ω max. @ 12 V
325 Ω max. @ 18 V
600 Ω max. @ 24 V
-10 to 70°C (14 to 158°F)
-15 to 80°C (5 to 176°F)
0 to 95%, non-condensing
2000 m (6562 ft)
II
2
EN50082-2
EN55011 Class B
Flow
Flow1: 6.25 GPM
Flow2: 9.75 GPM
ENTER
8051
60 mm
(2.3 in.)
SIDE VIEW
Field Mount w/
8051 Integral kit
