Adjusting the interior brightness
The lamps inside the car come on differently
depending on the ignition position used.
The thumbwheel adjusts the brightness of display
lighting, control lighting, ambient lighting and
ambience lighting.

Headlamp levelling

The load in the car changes the vertical align-
ment of the headlamp beam, which could dazzle
oncoming motorists. Avoid this by adjusting the
height of the beam. Lower the beam if the car is
heavily laden.
For different load cases and settings, see the
section "Headlamp levelling".
Related information
•
Passenger compartment lighting (p. 150)
•
Activating/deactivating main beam (p. 144)
•
Ignition positions (p. 399)
•
Headlamp levelling (p. 141)
Applies to vehicles with halogen headlamps.
47
Headlamp levelling
47
Beam alignment is adjusted using one of the
thumbwheels in the instrument panel.
1. Leave the engine running, or have the car's
electrical system in ignition position I.
2. Roll the thumbwheel up/down to raise/lower
beam alignment.
The position in which the thumbwheel should be
set for a number of load cases is shown below.

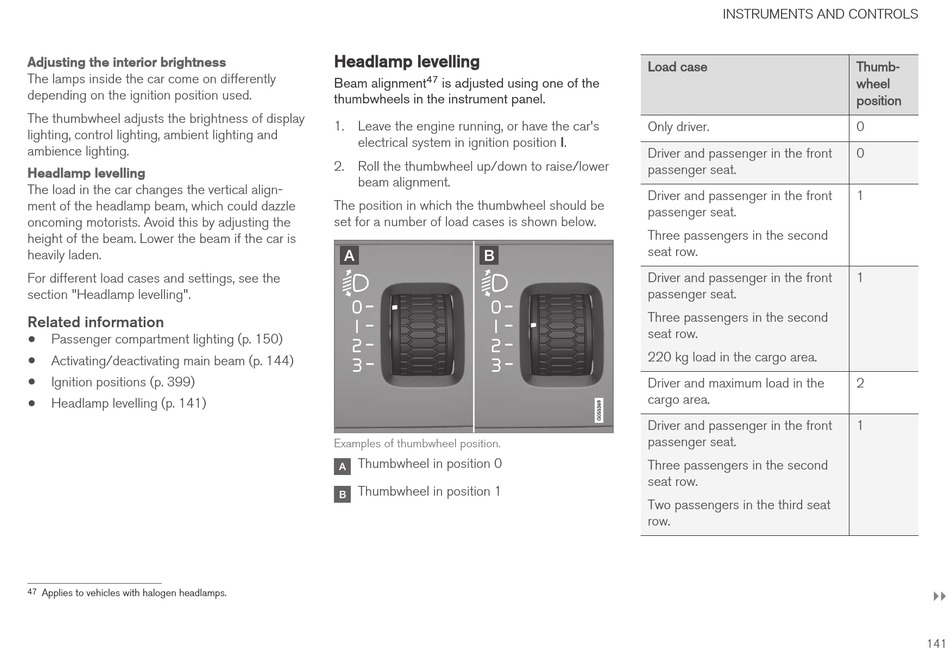

Examples of thumbwheel position.
Thumbwheel in position 0
Thumbwheel in position 1
INSTRUMENTS AND CONTROLS
Load case
Only driver.
Driver and passenger in the front
passenger seat.
Driver and passenger in the front
passenger seat.
Three passengers in the second
seat row.
Driver and passenger in the front
passenger seat.
Three passengers in the second
seat row.
220 kg load in the cargo area.
Driver and maximum load in the
cargo area.
Driver and passenger in the front
passenger seat.
Three passengers in the second
seat row.
Two passengers in the third seat
row.
Thumb-
wheel
position
0
0
1
1
2
1
}}
