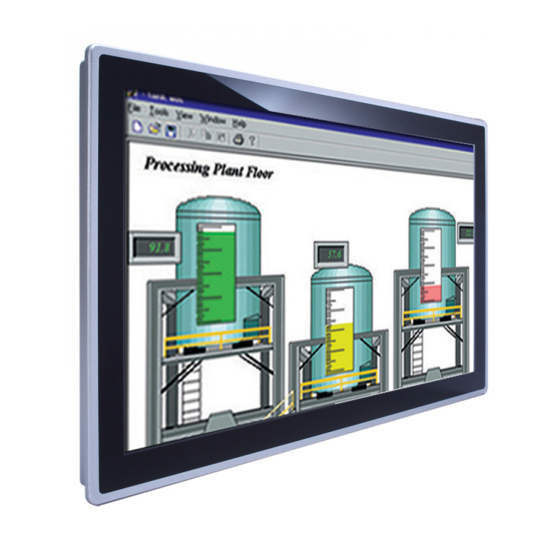

All-in-one 21.5” fhd fanless 10-point multi-touch panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT3217W-845-PCT
All-in-One
21.5" FHD Fanless
10-Point Multi-Touch PANEL PC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT3217W-845-PCT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT3217W-845-PCT

Summary of Contents for AXIOMTEK GOT3217W-845-PCT

  • Page 1 GOT3217W-845-PCT All-in-One 21.5” FHD Fanless 10-Point Multi-Touch PANEL PC User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update any information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any forms or by any means, electronic, mechanical, photocopying, recording, among others, without prior written permission from Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Most electronic components are sensitive to static electrical charge. Disconnect the power cord from the GOT3217W-845-PCT series prior to any installation. Be sure both the system and all external devices are turned off. Sudden surge of power could ruin sensitive components. Make sure the GOT3217W-845-PCT Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Section 1 Introduction ..........1 General Descriptions ................1 Specifications ..................2 Dimensions and Outlines ..............4 I/O Outlets .................... 6 Packing List ..................7 Section 2 Hardware and Installation ...... 9 Board Layout ..................
  • Page 5 3.4.1 North Bridge....................... 31 3.4.2 South Bridge ...................... 32 Security Menu ..................33 Boot Menu ..................34 Save & Exit Menu ................35 Section 4 Driver and Installation ......37 Operating System ................37 4.1.1 Installing System Drivers ................37 Touch Screen ..................
  • Page 6 This page is intentionally left blank.

  • Page 7: Introduction

    (vehicle, railway, marine) and industrial machinery markets. To suit the need of high capacity storage, the GOT3217W-845-PCT can work in operation mode under 1.0G (i.e. gravitational acceleration) (10 ~ 500Hz, random for HDD™) with a patent of anti-vibration design.

  • Page 8: Specifications

     WLAN antenna supported (optional) The GOT3217W-845-PCT comes with 2 PCI Express Mini Card slots as an add-on option to connect s a wireless LAN card under 802.11 a/b/g/n protocols, or with other 3G/GPRS applications, etc. These slots also come with 3 optional fixed rotational WLAN/3G antennas for wireless network connection.

  • Page 9: System Specifications

    GOT3217W-845-PCT User’s Manual  Power connector  Phoenix power connector or screw power connector System Specifications  21.5” FHD (1920x1080) LCD with LED backlight  10-point Multi- PCAP touch  A design of fanless heat dispensation  IP65 aluminum front bezel ...

  • Page 10: Dimensions And Outlines

    GOT3217W-845-PCT User’s Manual Dimensions and Outlines Diagram 1-1 shows the dimensions and outlines of the front panel of the GOT3217W-845-PCT Diagram 1-1 Front dimensions and outline of the GOT3217W-845-PCT Front dimensions: 547.6 x 339.1 x 57.6 mm Introduction...
  • Page 11 GOT3217W-845-PCT User’s Manual Diagram 1-2 Back outline of the GOT3217W-845-PCT Diagram 1-3 Cutting-out dimensions of the GOT3217W-845-PCT Cut out dimensions: 534.69 x 326.15 mm Introduction...

  • Page 12: I/O Outlets

    GOT3217W-845-PCT User’s Manual I/O Outlets Please refer to Figures 1-2 and 1-3 for I/O locations of the GOT3217W-845-PCT. Figure 1-2 Bottom view of the GOT3217W-845-PCT Figure 1-3 Side view of the GOT3217W-845-PCT Introduction...

  • Page 13: Packing List

    Phoenix connector x 1 (DC power version only)  Panel mount kit x 16  Screws for HDD x 2  SATA data cable x 1  SATA power cable x 1 Please contact an Axiomtek distributor immediately if any of the above-mentioned items is missing. Introduction...
  • Page 14 GOT3217W-845-PCT User’s Manual This page is intentionally left blank. Introduction...

  • Page 15: Hardware And Installation

    GOT3217W-845-PCT User’s Manual Section 2 Hardware and Installation The GOT3217W-845-PCT provides rich I/O ports and flexible expansion for users to meet different demands; for example, in a case of CF card expansion. This Section describes hardware installation, including the following subsections: ...

  • Page 16: Jumper And Connector Settings

    Pins 1-2 open Pins 1-2 close Pins 1-2 close All pins open Before applying power to GOT3217W-845-PCT, please make sure all of the jumpers and connectors are in default position as listed in Table 2-1. Table 2-1 Factory mode of jumper settings...

  • Page 17: Com Port Connector

    No use 2.2.4 Ethernet Connector There are two RJ-45 connectors, LAN1 and LAN2, inside the GOT3217W-845-PCT. Ethernet connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end (phone jack) to a 1000/100/10-Base-T hub.

  • Page 18: Mounting Methods

    There are four ways to install the GOT3217W-845-PCT, namely: panel/ VESA/ wall/ desktop mount. The GOT3217W-845-PCT provides a standard panel mount kit. It can be installed by way of panel mount (see Figure 2-1, 2-2). Figure 2-1 Panel mount (back chassis)
  • Page 19 GOT3217W-845-PCT User’s Manual Alternatively, the GOT3217W-845-PCT can be installed by way of VESA mount which is in the dimensions of 100x100 mm. Simply fix four screws to fasten the kit from the back chassis, as shown in Diagram 2-3. Additionally, users can otherwise go for wall mount as an option, as shown in Diagram2-4.

  • Page 20: Hardware Installation

    GOT3217W-845-PCT User’s Manual Hardware Installation 2.4.1 Installing a HDD The GOT3217W-845-PCT provides a convenient Hard Disk Drive (HDD) bracket for users to install a 2.5” SATA HDD. Please follow the steps: Step 1 Refer to Section 2.1 to open the back cover and dissemble the HDD tray by un-screwing the 2 screws (as shown in the red circles in Figure 2-5).
  • Page 21 GOT3217W-845-PCT User’s Manual Step 3 Lodge the two points on to the holes on the HDD tray (see red circles in Figure 2-7) and fix the bracket onto the HDD tray with two screws. Also, please make sure the two holes at the back of the HDD are embedded into the...

  • Page 22: Installing A Dram

    GOT3217W-845-PCT User’s Manual 2.4.2 Installing a DRAM The GOT3217W-845-PCT provides one 204-pin DDR3L SODIMM socket that supports system memory up to 8GB. Please follow steps below to install a memory module: Step 1 Refer to Section 2.1 to open the back cover.

  • Page 23: Installing A Wireless Lan Card

    GOT3217W-845-PCT User’s Manual 2.4.3 Installing a Wireless LAN Card The GOT3217W-845-PCT comes with two Mini card slots for users to install wireless LAN cards. Users can choose either Slot 1 or Slot 2 to install the wireless LAN card. Please refer to the following instructions and illustration for the installation of the wireless LAN card.
  • Page 24 GOT3217W-845-PCT User’s Manual Step 3 Locate the antenna cable and connect it to the wireless LAN card (see Figure 2-13). Figure 2-13 Connecting the antenna to the wireless LAN card Step 4 Remove the antenna plug from the top of back cover, and then install the antenna on the antenna connector (see Figures 2-14 and 2-15).

  • Page 25: Connecting The Power Input

    GOT3217W-845-PCT User’s Manual 2.4.4 Connecting the Power Input The GOT3217W-845-PCT is equipped with a Phoenix type of power connector which adopts 24VDC. Please follow the signs on the power connector to connect DC power source (see Figure 2-16). Figure 2-16 Power connector －:Power negative...
  • Page 26 GOT3217W-845-PCT User’s Manual This page is intentionally left blank. Hardware and Installation...

  • Page 27: Ami Bios Setup Utility

    GOT3217W-845-PCT User’s Manual Section 3 AMI BIOS Setup Utility This Section provides users with detailed descriptions about how to set up basic system configurations through the AMI BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the hot keys for the BIOS setup utility can be used at any time during the setup navigation process.

  • Page 28: Main Menu

    GOT3217W-845-PCT User’s Manual Main Menu Figure 3-1 Main menu System Date / Time Use this option to change the system time and date. Highlight System Time or System Date using the up/ down/ left and right arrow keys (see Figure 3-1). Enter new values through the keyboard.

  • Page 29: Advanced Menu

    GOT3217W-845-PCT User’s Manual Advanced Menu Figure 3-2 Advanced Menu The Advanced menu allows users to set configurations of the CPU and other system devices. Select any item on the left to go to the sub-menus (as shown in Figure 3-2).
  • Page 30 GOT3217W-845-PCT User’s Manual Figure 3-3 Entering ‘NCT6106D Super IO Configuration’ ► Serial Port 1 (COM1) / Serial Port 2 (COM2) Serial port This option is used to enable or disable serial port COM1/COM2. Device Setting This item specifies the base I/O port address and the Interrupt Request (IRQ) address of the serial ports.

  • Page 31: Hardware Monitor

    GOT3217W-845-PCT User’s Manual 3.3.2 Hardware Monitor Figure 3-5 shows a screen reflecting the health status of the hardware in real time. Figure 3-5 Entering ‘Hardware Monitor’ AMI BIOS Setup Utility...

  • Page 32: Acpi Settings

    GOT3217W-845-PCT User’s Manual 3.3.3 ACPI Settings This screen is used to select options of the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. ACPI Sleep State This item allows users to select the Advanced Configuration and Power Interface (ACPI) state to be used for system suspension.

  • Page 33: Cpu Configuration

    GOT3217W-845-PCT User’s Manual 3.3.4 CPU Configuration Figure 3-7 shows a page of CPU configuration with item Intel Virtualization Technology [enable/disable] highlighted. Figure 3-7 Entering ‘CPU Configuration’ AMI BIOS Setup Utility...

  • Page 34: Sata Configuration

    GOT3217W-845-PCT User’s Manual 3.3.5 SATA Configuration This screen allows users to select options for SATA Configuration, and change the value of the selected option (see Figure 3-8). SATA Controller Highlight this item to set up SATA Controller to be Enable or Disable.

  • Page 35: Usb Configuration

    GOT3217W-845-PCT User’s Manual 3.3.6 USB Configuration Please see Figure 3-9 to see what items can be set up under the page of USB Configuration. Figure 3-9 Entering ‘USB Configuration’ 3.3.7 Utility Configuration Figure 3-10 shows the page once entering Utility Configuration.

  • Page 36: Pcie/Msata Mini Card Configuration

    GOT3217W-845-PCT User’s Manual 3.3.8 PCIE/mSATA Mini Card Configuration Highlighting item PCIE/mSATA Mini Card Configuration under the Advanced Menu, hit <Enter> to enter a sub-screen as shown in Figure 3-11. There are two choices for Mino Card Mode: PCIE and mSATA.

  • Page 37: Chipset Menu

    GOT3217W-845-PCT User’s Manual Chipset Menu The Chipset menu gives memory information about the North Bridge and TXE information about the South Bridge (see Figure 3-12). Figure 3-12 Chipset Menu 3.4.1 North Bridge Memory information about the North Bridge is show in Figure 3-13.

  • Page 38: South Bridge

    GOT3217W-845-PCT User’s Manual 3.4.2 South Bridge TXE information about the South Bridge is show in Figure 3-14. Figure 3-14 Entering ‘South Bridge’ AMI BIOS Setup Utility...

  • Page 39: Security Menu

    GOT3217W-845-PCT User’s Manual Security Menu Figure 3-15 Security Menu AMI BIOS Setup Utility...

  • Page 40: Boot Menu

    GOT3217W-845-PCT User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Users can highlight any of the items on the left frame of the screen to go to any particular sub menus (as shown in Figure 3-16).

  • Page 41: Save & Exit Menu

    GOT3217W-845-PCT User’s Manual Save & Exit Menu Figure 3-17 Save & Exit Menu AMI BIOS Setup Utility...
  • Page 42 GOT3217W-845-PCT User’s Manual This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 43: Driver And Installation

    Select all files and follow the installing procedure from Steps 1 to 6. Please don’t run Step 7 that is the driver for resistive touch screen. NOTE: During the installation of “Graphic” driver, if the GOT3217W-845-PCT is idle for too long, then the “Power Management” program may turn off the GOT3217W-845-PCT LCD monitor.

  • Page 44: Touch Screen

    GOT3217W-845-PCT User’s Manual Touch Screen The GOT3217W-845-PCT is designed based on the technology of projected capacitive multi-touch screen of which specifications are listed below. The touch driver will be installed automatically and can drive the touch panel to get two fingers touch function that based on the Windows 10 and Windows 10 IoT Enterprise support.
