AXIOMTEK GOT3846T-832 User Manual

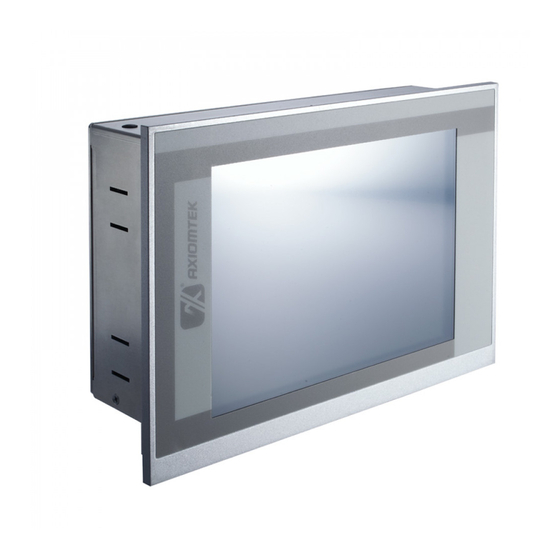

All-in-one 8.4” svga tft fanless compact-size
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT3846T-832
All-in-One
8.4" SVGA TFT Fanless Compact-Size
PANEL PC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT3846T-832 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT3846T-832

Summary of Contents for AXIOMTEK GOT3846T-832

  • Page 1 GOT3846T-832 All-in-One 8.4” SVGA TFT Fanless Compact-Size PANEL PC User’s Manual...
  • Page 2 Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third party’s rights, and any liability arising from such use. Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. Axiomtek does not make any commitment to update the information in this manual.
  • Page 3 Most electronic components are sensitive to static electrical charge. Disconnect the power cord from the GOT3846T-832 before any installation. Be sure both the system and external devices are turned OFF. A sudden surge of power could ruin sensitive components that the GOT3846T-832 must be properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..........................ii Safety Precautions ........................iii CHAPTER 1 INTRODUCTION ......................1 General Description ....................2 Specifications ......................3 1.2.1 Main CPU Board ......................3 1.2.2 I/O System ......................... 3 1.2.3 System Specification ....................4 Dimensions ........................ 5 I/O Outlets ........................

  • Page 5: Chapter 1 Introduction

    GOT3846T-832 User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the GOT3846T-832. Chapter 1 includes the following sections:  General Description  Specification  Dimensions  I/O Outlets  Package List Introduction...

  • Page 6: General Description

    The patent improves the system reliability and sustainability. WLAN Antenna Supported (optional) GOT3846T-832 has a PCI Express Mini Card slot for optional add-ons such as wireless LAN card for 802.11 b/g connections & 3G/GPRS application, and more.

  • Page 7: Specifications

    GOT3846T-832 User’s Manual Specifications 1.2.1 Main CPU Board  ○  Intel Atom N2600 1.6GHz processor onboard  System Chipset ○  Intel NM10 Express  BIOS  America Megatrends BIOS  System Memory  One 204-pin DDR3 800MHz SO-DIMM socket ...

  • Page 8: System Specification

    GOT3846T-832 User’s Manual 1.2.3 System Specification  8.4” SVGA(800x600) LCD with LED backlight  5 wired resistive Touch  Fanless Heat Dispensing Design  IP65 aluminum front bezel  Disk drive housing:  One 2.5” SATA drive  Net Weight ...

  • Page 9: Dimensions

    GOT3846T-832 User’s Manual Dimensions The following diagrams show the dimensions and outlines of GOT3846T-832. Introduction...
  • Page 10 GOT3846T-832 User’s Manual Introduction...

  • Page 11: I/O Outlets

    GOT3846T-832 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT3846T-832. Introduction...

  • Page 12: Packing List

    Phoenix connector x 1  Panel mount kit x 6  Wall mount Kit x 1  Screws for HDD x 4 If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 13: Chapter 2 Hardware Installation

    GOT3846T-832 series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The GOT3846T-832 provides rich I/O ports and flexible expansions for you to meet different demand, for example CF card. The chapter will show you how to install the hardware. It includes: ™...

  • Page 14: Open

    GOT3846T-832 User’s Manual Open back cover This section tells users how to open back cover. Please follow the steps below. Step 1 Unscrew 12 screws on the back cover. Please refer the photo below. Step 2 Remove the back cover.

  • Page 15: Cf Card Installation

    GOT3846T-832 series User’s Manual CF card Installation ™ The GOT3846T-832 provides one CF slot for users to install CompactFlash card. Please refer to the following instructions for installation: Step 1 Unscrew 12 screws on the chassis. Hardware Installation...
  • Page 16 GOT3846T-832 User’s Manual Step 2 Remove the chassis. Step 3 Insert the card into the socket. Hardware Installation...

  • Page 17: Serial Ports Interface

    GOT3846T-832 series User’s Manual Serial Ports Interface The GOT3846T-832 has four serial ports. COM1 is RS-232/422/485, while COM2, COM3, and COM4 are RS-232. The following table shows you the pin assignments of this connector: Description Function Jumper Setting RS-232 (Default)

  • Page 18: Com1&Com2 Connector

    GOT3846T-832 User’s Manual 2.3.1 COM1&COM2 Connector The COM1 and COM2 is a standard DB-9 connector. This connector is equipped with +5V level power capability on DCD and +12V level on RI by setting JP10 and JP11. The pin assignment of RS-232/RS-422/RS-485 is listed on the following table. If you need...

  • Page 19: Ethernet

    GOT3846T-832 series User’s Manual Ethernet The GOT3846T-832 is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 20: Mountings: Panel / Wall / Desktop / Vesa

    Mountings: Panel / Wall / Desktop / VESA There are 4 application options for the GOT3846T-832, Panel/Wall/Desktop/VESA mountings. 2.5.1 VESA-ARM/Wall-Mount The GOT3846T-832 provides VESA mount: 75x75 mm . Screw four screws to fix the kit in the back chassis. Hardware Installation...

  • Page 21: Panel-Mount Kit Assembly

    GOT3846T-832 series User’s Manual 2.5.2 Panel-mount Kit Assembly The GOT3846T-832 is designed for panel mount application. To mount the GOT3846T- 832, the standard set of mounting kit (included in the system packaging) is neede d. Hardware Installation...

  • Page 22: Hdd Installation

    GOT3846T-832 User’s Manual HDD Installation The GOT3846T-832 provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: Step 1 Refer section 2.1 to open the back cover. Step 2 Unscrew 4 screws to take off the HDD bracket.
  • Page 23 GOT3846T-832 series User’s Manual Step 4 Fix the HDD bracket into the cover, fasten the power and data cable in the cable tie, then plug the cables to connectors. Installation completes. Hardware Installation...
  • Page 24 GOT3846T-832 User’s Manual Data Powe Hardware Installation...

  • Page 25: Dram Installation

    GOT3846T-832 series User’s Manual DRAM Installation The GOT3846T-832 provides one 204-pin DDR3 SODIMM socket that support system memory up to 2GB. Please follow steps below to install the memory modules: Step 1 Refer to section 2.1 to open the back cover and find out DIMM socket on mainboard (SBC87832).
  • Page 26 GOT3846T-832 User’s Manual Step 3 Insert the DRAM to the DIMM socket, and then push it down firmly until it is clipped by the socket. Hardware Installation...
  • Page 27 GOT3846T-832 series User’s Manual Step 4 Rip the red mylar from DRAM bracket, then screw it into the chassis. Installation completed. Hardware Installation...
  • Page 28 GOT3846T-832 User’s Manual Hardware Installation...

  • Page 29: Wireless Lan Card Installation

    GOT3846T-832 series User’s Manual Wireless LAN Card Installation The GOT3846T-832 provides one Mini card slot for user to install one wireless LAN card. W hen installing the wireless LAN card, refer to the following instructions and illustration: Step 1 Refer to section 2.1 to open the back cover and find out mini-card slot on mainboard.
  • Page 30 GOT3846T-832 User’s Manual Step 3 Find the built-in Antenna cable and connect it wireless LAN card. Step 4 Lift the rubber stopper from the top of back cover. Step 5 Install the antenna on the antenna connector. NOTE: Please have the extented bracket when using half-size mini card.

  • Page 31: Power

    GOT3846T-832 series User’s Manual Power GOT3846T-832 equips with a phoenix type power connector. It adopts 10VDC to 30VDC. Please follow the signs on power connector to connect DC power source . Power positive Safty ground －: Power negative NOTE: The safty ground must be connected to ensure the uiit working appropriately.
  • Page 32 GOT3846T-832 User’s Manual MEMO: Hardware Installation...

  • Page 33: Chapter 3 Ami Bios Setup Utility

    GOT3846T-832 series User’s Manual CHAPTER 3 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 34: Navigation Keys

    GOT3846T-832 User’s Manual Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include <F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, and so on.

  • Page 35: Main Menu

    GOT3846T-832 series User’s Manual Main Menu W hen you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below.

  • Page 36: Advanced Menu

    GOT3846T-832 User’s Manual Advanced Menu  Launch PXE OpROM Use this item to enable or disable the boot ROM function of the onboard LAN chip when the system boots up.  Launch Storage OpROM Enable or disable boot option for legacy mass storage devices with Option ROM.
  • Page 37 GOT3846T-832 series User’s Manual  ACPI Settings You can use this screen to select options for the ACPI Settings, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 38 GOT3846T-832 User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can c hange the value of the selected option.  Hyper Threading Technology Use this item to enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
  • Page 39 GOT3846T-832 series User’s Manual  IDE Configuration  SATA Controller(s) The optional settings are: [Disabled]; [Enabled].  Configure SATA as The optional settings are: [IDE]; [AHCI]. AMI BIOS Setup Utility...
  • Page 40 GOT3846T-832 User’s Manual  USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 41 GOT3846T-832 series User’s Manual  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears o n the right side of the screen ...
  • Page 42 GOT3846T-832 User’s Manual  PC Health Status This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. AMI BIOS Setup Utility...

  • Page 43: Chipset Menu

    GOT3846T-832 series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus:  Host Bridge Host Bridge For items marked with “”, please press <Enter>...
  • Page 44 GOT3846T-832 User’s Manual  Memory Frequency and Timing This item is for memory frequency and timing settings. P ress <Enter> to go to the sub menu. AMI BIOS Setup Utility...

  • Page 45: Boot Menu

    GOT3846T-832 series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Boot Settings Configuration  Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key.

  • Page 46: Security Menu

    GOT3846T-832 User’s Manual Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

  • Page 47: Exit Menu

    GOT3846T-832 series User’s Manual Exit Menu The Save & Exit menu allows users to load system configuration with optimal or failsafe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 48 GOT3846T-832 User’s Manual  Discard Changes and Reset Select this option to quit Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Reset from the Save & Exit menu and press <Enter>. Select Yes to discard changes and reset.

  • Page 49: Chapter 4 Drivers Installation

    CHAPTER 4 DRIVERS INSTALLATION System GOT3846T-832 supports Windows 7 32-bit and WES 7. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Select all files and follow the installing procedure.

  • Page 50: Touch Screen

    Active: 24.6mA / Idle Mode: 13.4mA 4.2.2 Driver Installation- Windows 7 The GOT3846T-832 provides a touch screen driver that users can install it under the operating system W indows 7. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
  • Page 51 GOT3846T-832 series User’s Manual Click Start menu and select “PenMount Utilities”; and then, a “PenMount Control Panel” pops out. Select the “Standard Calibrate” tab. Installation of Drivers...
  • Page 52 GOT3846T-832 User’s Manual Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Installation of Drivers...

  • Page 53: Embedded O.s

    GOT3846T-832 series User’s Manual Embedded O.S. The GOT3846T-832 provides the W indows 7 Embedded. The O.S. is supported devices which are listed below. 4.3.1 WES 7 Here are supported onboard devices: Onboard Multi I/O  SATA HDD   PS2 Keyboard and mouse ...
