LG MultiSITE CRC1 Series Installation Manual page 12

CONTROLLER INSTALLATION
Installing the Controller – continued
12. Gently align cover to top of base and
snap in place from bottom (Figure 5).
13. Install security screw.
Terminal
Terminal 1
Terminal 2
Terminal 3
Terminal 4
Terminal 5
Terminal 6
Terminal 13
Terminal 14
Terminal 15
Terminal 16
Terminal 17
Terminal 18
Due to our policy of continuous product innovation, some specifications may change without notification.
12
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
Table 1: Controller Terminal Functions

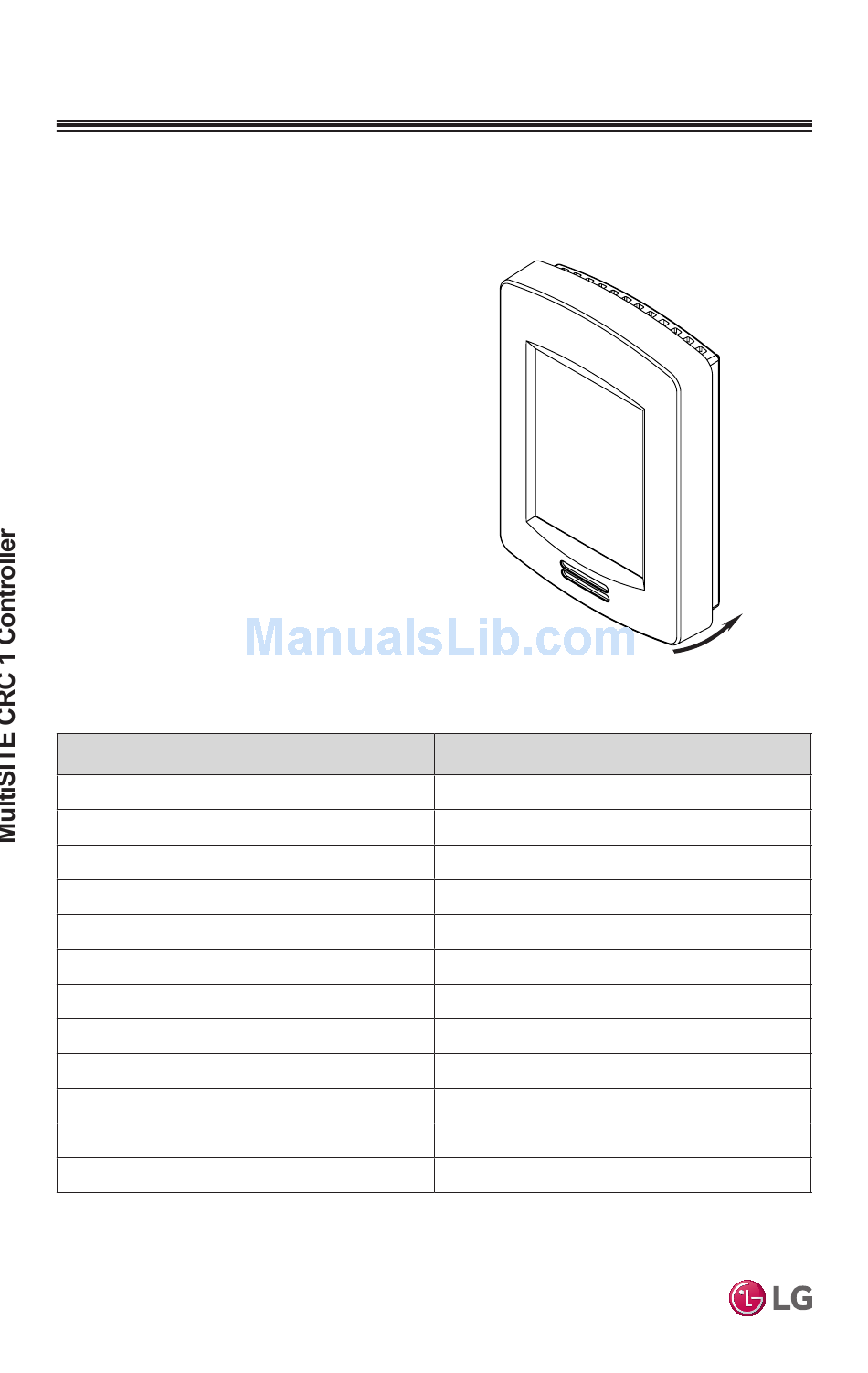

Figure 5: Reinstall Cover
