LG MultiSITE CRC1 Series Installation Manual page 11

Installing the Controller – continued
10. Insert each wire in terminal
block according to wiring dia-
gram (Figure 4). Table 1 lists
the function of all terminal
connections.
11. Carefully push excess
wiring back into hole.
4 5 6
13 14 15
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
CONTROLLER INSTALLATION

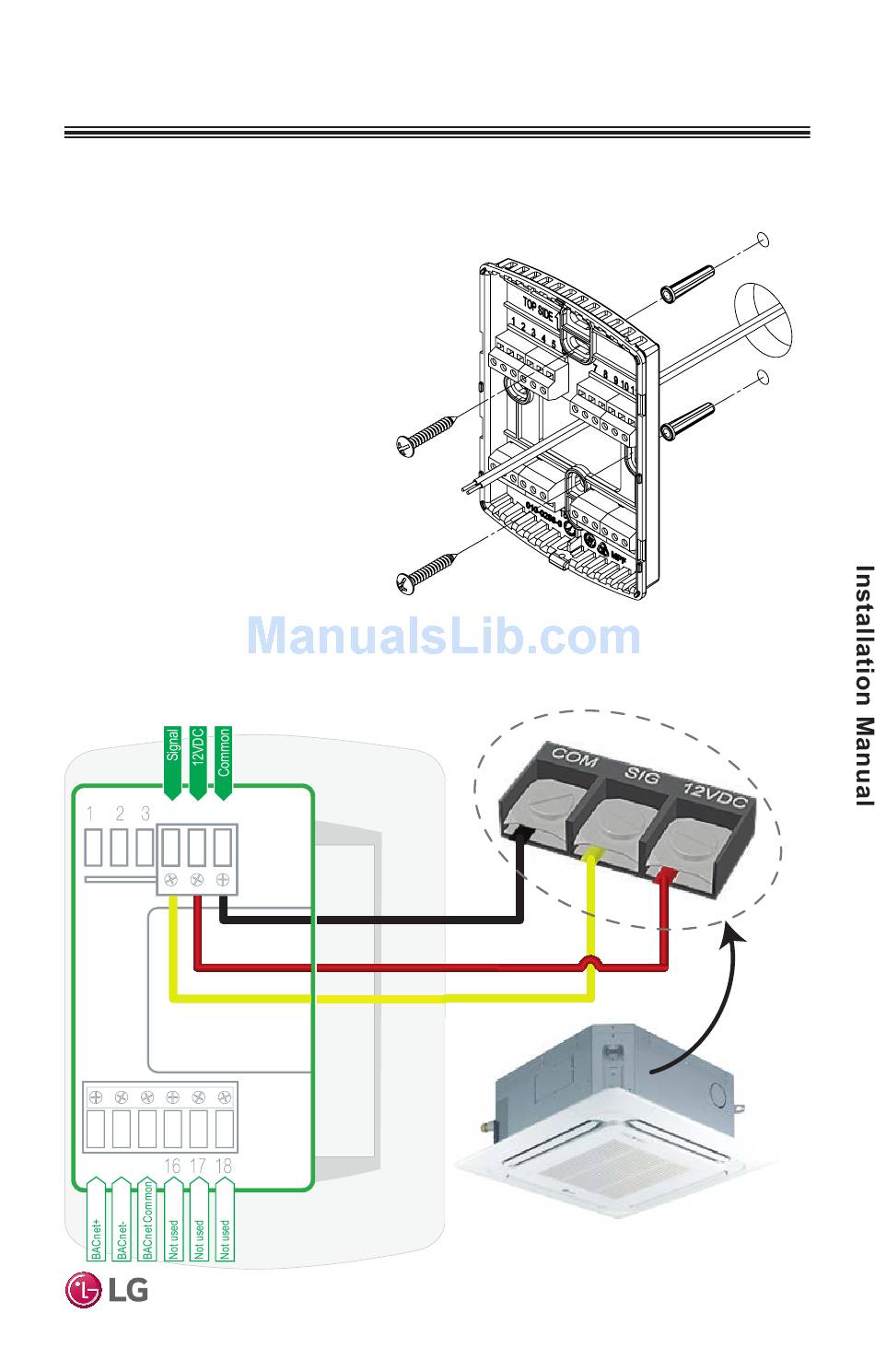

Figure 4: Controller Wiring
Figure 3: Install Base
Typical Indoor Unit
11
