STORM

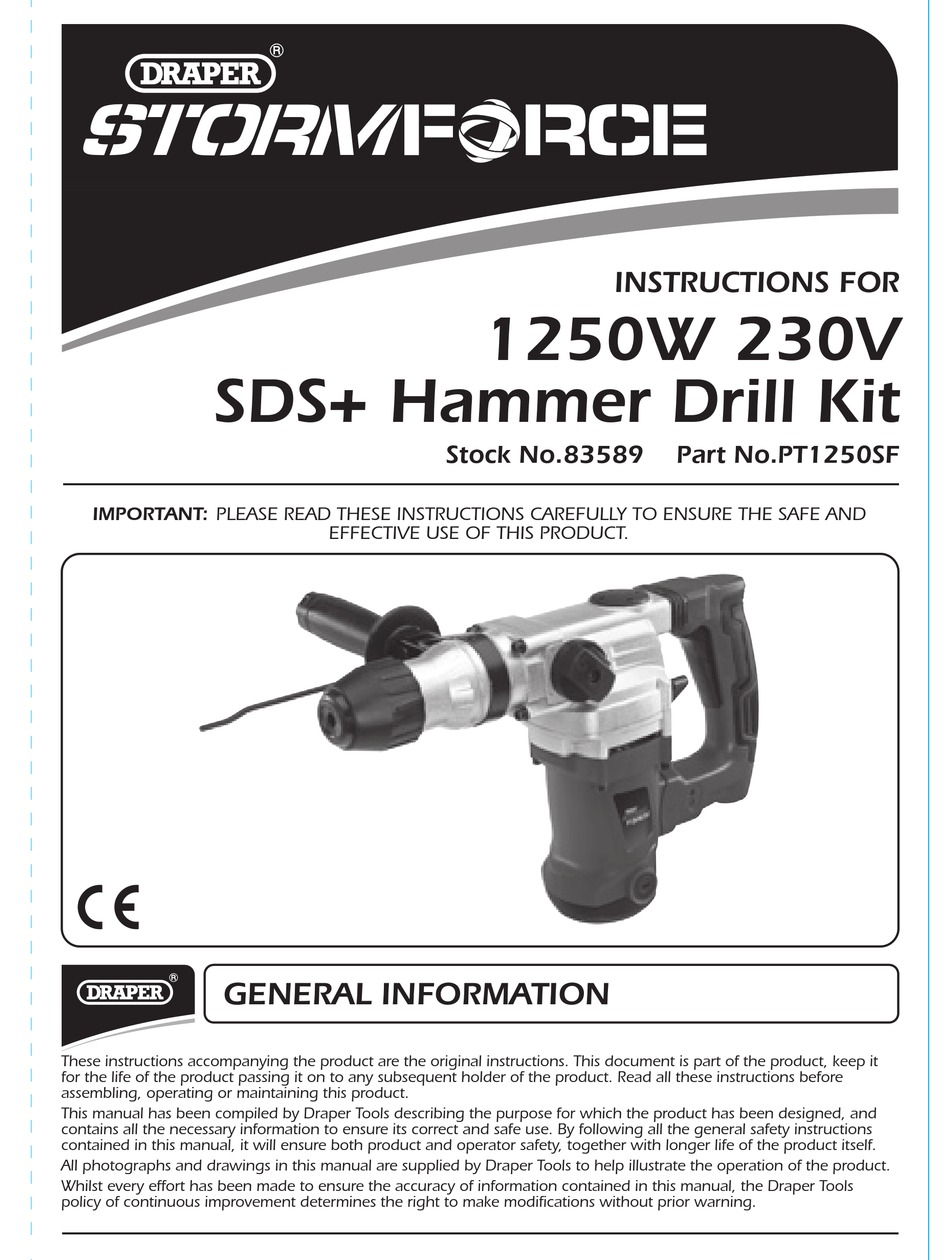

INSTRUCTIONS FOR
1250W 230V

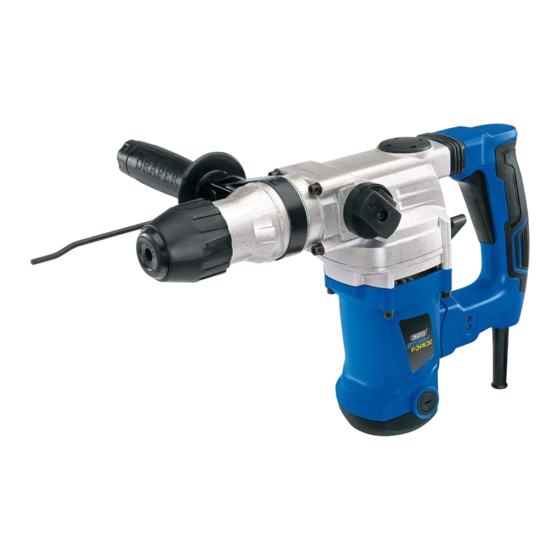

SDS+ Hammer Drill Kit
Stock No.83589
Part No.PT1250SF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 1250W
Summary of Contents for Draper 1250W
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE..................... 2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ..................... 5 HANDLING & STORAGE ..................5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
Any other application is considered misuse. 4.2 SPECIFICATION Stock no..........................83589 Part no......................... PT1250SF Rated voltage ......................230V~50Hz Rated input ........................1250W Drilling capacity: Wood ..........................40mm Mild steel ........................13mm Masonry ........................30mm Impact force........................ -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS General Power Tools Safety Warnings WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... -
Page 7: Additional Safety Instructions
HEALTH & SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards. 4) Power Tool Use And Care a) Do not force the power tool. -
Page 8: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION SDS+ chuck Rotary/hammer selector Gearbox access cover Plug & cable On/off trigger switch Rotation/stop selector Hand grip Auxiliary handle... -
Page 9: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 10: Preparing The Drill
PREPARING THE DRILL NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 AUXILIARY HANDLE - FIG. 1 WARNING: Use auxiliary handle supplied with the tool. Loss of control can cause personal injury. When fitting the auxiliary handle , ensure the hand grip is loose (screw anti-clockwise to loosen) before sliding it over the drill's chuck onto the collar... -
Page 11: Basic Hammer Drill Operations
BASIC HAMMER DRILL OPERATIONS WARNING: Prior to beginning any drilling, carefully check the surface for the presence of electric cable, gas or water pipes and other dangerous or damaging contents. If unsure do not proceed. NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. -
Page 12: Sds+ System
BASIC HAMMER DRILL OPERATIONS 9.6 SDS+ SYSTEM - FIG. 5 FIG.5 The tool holder clamps SDS+ drill bits and chisels without the need for a chuck key. Pull collar back. Insert the bit. It may be necessary to rotate the bit to ensure it engages correctly. Release the collar to lock the bit in place. -
Page 13: Maintenance
2. Brushes worn. 2. Have carbon brushes replaced in motor. 3. Unsure. 3. Return to an authorised service agent for diagnosis. 12. OPTIONAL ACCESSORIES For a full range of optional accessories, please refer to your local Draper Stockist. -
Page 14: Explanation Of Symbols
13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Warning! Wear dust mask. Warning! Read the instruction manual Warning! Warning! Wear suitable eye/face Wear ear defenders. protection. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Class II construction (Double insulated). -
Page 15: Disposal
14. DISPOSAL 14.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 16 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0816...
