Installing the Software

Install the supplied Windows PC Datalogger Software by placing the supplied program disk in the PC's CD-ROM
drive. If the installation program does not automatically open and provide on-screen prompts, open and browse
the CD-ROM drive, then find and double-click on the SETUP.EXE file included on the program disk. Follow the
on-screen prompts to complete the installation.
Before running the graphing software, please connect the TH10 to the PC and install the USB Driver software as
described in the software help file.

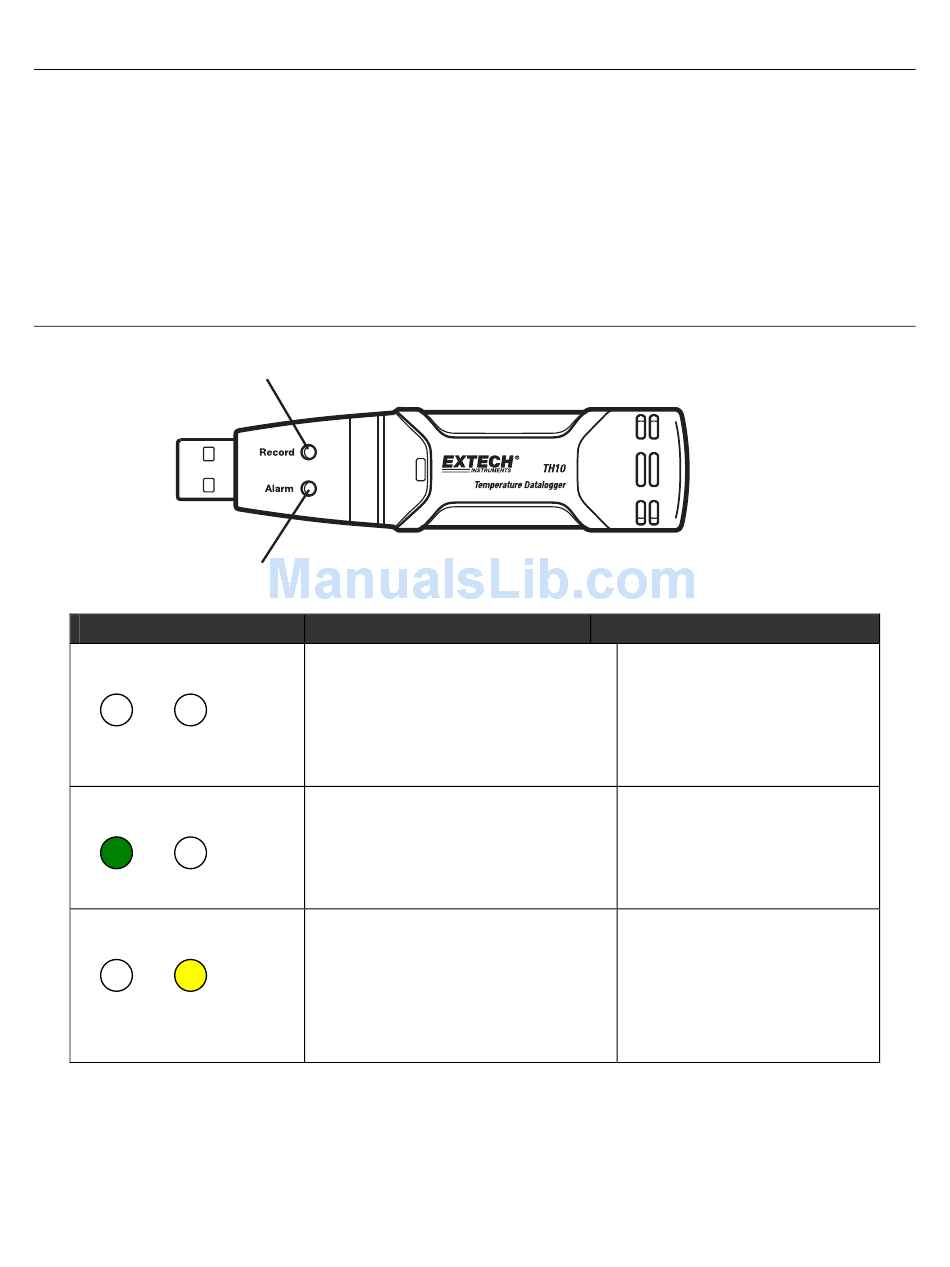

TH10 LED Status Guide

Green LED
Yellow LED
LEDs
Record Alarm
Record Alarm
Record Alarm
* To save power, the TH10's LED flashing cycle can be changed to 20s or 30s via the supplied software.
** To save power, alarm LEDs for temperature can be disabled via the supplied software.
†
When the battery is low, all operations will be disabled
the battery weakens (logged data will be retained). The supplied software is required to restart logging and to
download logged data.
.
Meaning
No LEDs flashing
-No logging in process
Or
-No battery found
Or
-Battery completely discharged
Green single flash every 10 sec. *
-Logging, no alarm**
Green double flash every 10 sec. *
-Delayed start
Yellow single flash every 10 sec. *
-Logging, low alarm for TEMP
Yellow single flash every 10 sec.
-Logging, high alarm for TEMP
Yellow single flash every 60 sec.
- TH10 memory full
automatically. NOTE: Logging automatically stops when
3
Action
Fit battery in place
Replace the battery and
download the data
To start, Hold the start button
until Green and Yellow LED
flash
Download data
