OSD TIME Turns off the OSD after a period of inactivity. The preset choices are 10-240 seconds.
OSD POSITION Determines the location where the OSD appears on the screen.
UP
DOWN
RIGHT
LEFT
INFORMATION OSD Selects whether the information OSD is displayed or not. The information OSD will be displayed when the input
signal or source changes. The information OSD will also give a warning when there is no signal or the signal is
out-of range.
An interval between 3 to 10 seconds for the Information OSD to appear is available.
COMMUNICATION Displays IP ADDRESS and MONITOR ID if ON is set.
INFO.
OSD TRANSPARENCY Set the transparency of the OSD.
OSD ROTATION Determines the OSD display direction between landscape and portrait.
LANDSCAPE Display the OSD with landscape mode.
PORTRAIT Display the OSD with portrait mode.
NOTE: If PORTRAIT is set, CLOSED CAPTION is not available.
KEY GUIDE Key guide is shown when the OSD menu is displayed.
MEMO Sets a title and message via HTTP server. See page 54.
INPUT NAME You can create a name for the INPUT currently being used.
Max: 14 characters, including Space, A-Z, 0-9, and some symbols.
CLOSED CAPTION Activates closed captioning.
VIDEO input only
NOTE: This function is released if the following function is activated: MULTI PICTURE MODE, TEXT TICKER,
PORTRAIT in OSD ROTATION, TILE MATRIX, SCREEN SAVER, STILL, POINT ZOOM, SUPER in INPUT
CHANGE.
RESET Resets the following settings within the OSD menu back to factory setting:
OSD TIME, OSD POSITION, INFORMATION OSD, OSD TRANSPARENCY, CLOSED CAPTION.

MULTI DISPLAY

AUTO TILE MATRIX TILE MATRIX allows one image to be displayed over multiple screens (up to 100) through a distribution amplifi er.
SETUP Allows auto setting of TILE MATRIX by inputting the number of monitors arranged horizontally and vertically on
the primary monitor. Following settings are set automatically: MONITOR ID, TILE MATRIX, TILE MATRIX MEM,
Input Signal, VIDEO OUT SETTING, DisplayPort in TERMINAL SETTINGS.
NOTE: AUTO ID will be automatically executed. When you use this function, it is recommended that monitors be
chained by DisplayPort cable. This function is released if MOTION in SCREEN SAVER is activated.
SETTING COPY In a daisy chain scenario, select the OSD menu categories that you want to copy over to the other monitor.
NOTE: When you use this function, monitors should be daisy chained by LAN. This function resets to default
when power is off. This function has a limit depending on the cable you use.
COPY START Select "YES" and press the SET button to start copying.
ALL INPUT All input terminals settings are copied when you select this item. Default is off.

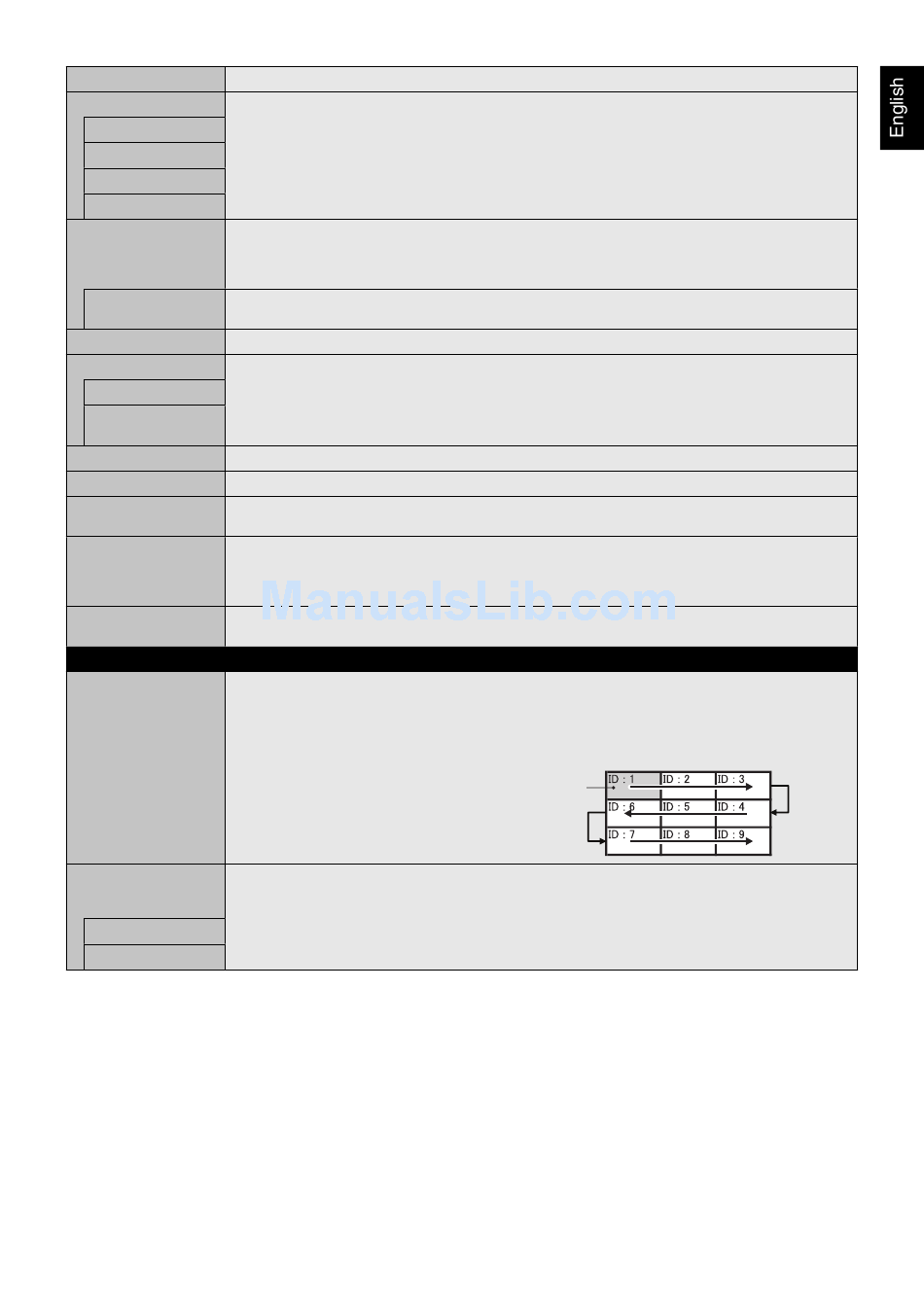

Example of installation via LAN:
H MONITORS 3
V MONITORS 3
English-37
Primary monitor
