Philips SW200 Service Manual page 5

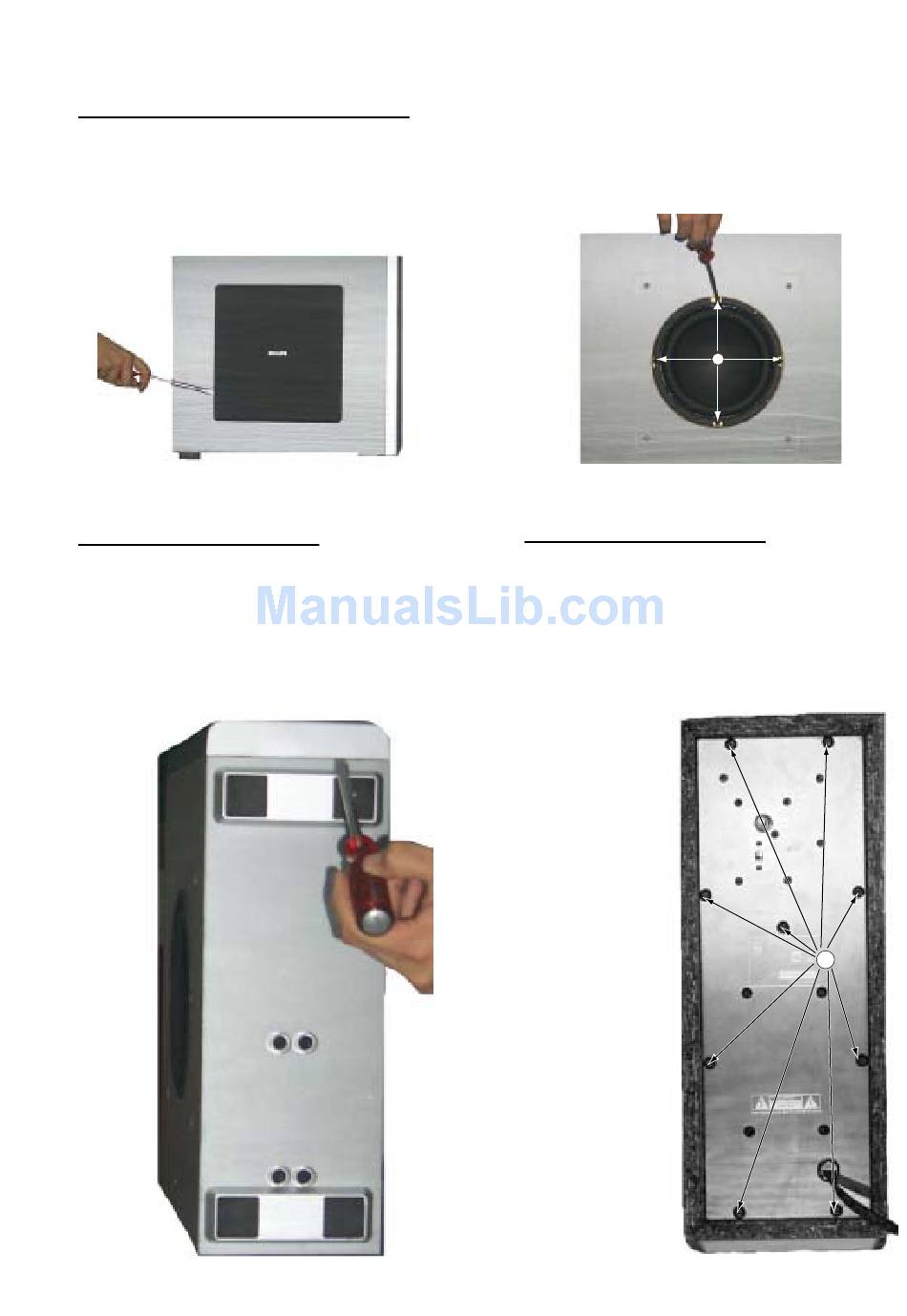

DISASSEMBLY INSTRUCTIONS
Dismantling the Grill Base & Speaker Driver
1. Place the Subwoofer Box as shown in the Picture 1
and use a screw driver to force open the Grill Base.
Caution: Take care the surface when take out the
Grill Base of Subwoofer
Picture 1
Dismantling the Front Assembly
1. Place the Subwoofer Box as shown in the Picture 3
(Bottom view) and use a screw driver to force open the
front assembly.
Caution: Do not break the bundle of wires to the front.
Take care the surface when take out the front
panel of subwoofer
Picture 3
2-1
2. Place the Subwoofer Box as shown in the Picture 2
and loosen 4 screws A to remove the Speaker Driver.
Dismantling the Rear assembly
1. Loosen 9 screws B as shown in the Picture 4 (Rear
View) to pull out the Printed Circuit Board assembly.
Caution: Do not break the bundle of wires to the front.
WARNING: THERE IS ONLY A LED
BETWEEN FRONT PANEL AND
WOOD BOX. IF NOT NECCESSARY,
PLEASE DO NOT TRY TO OPEN THE
FRONT PANEL!!!
A
Picture 2
B
Picture 4
