Philips SW200 Service Manual page 14

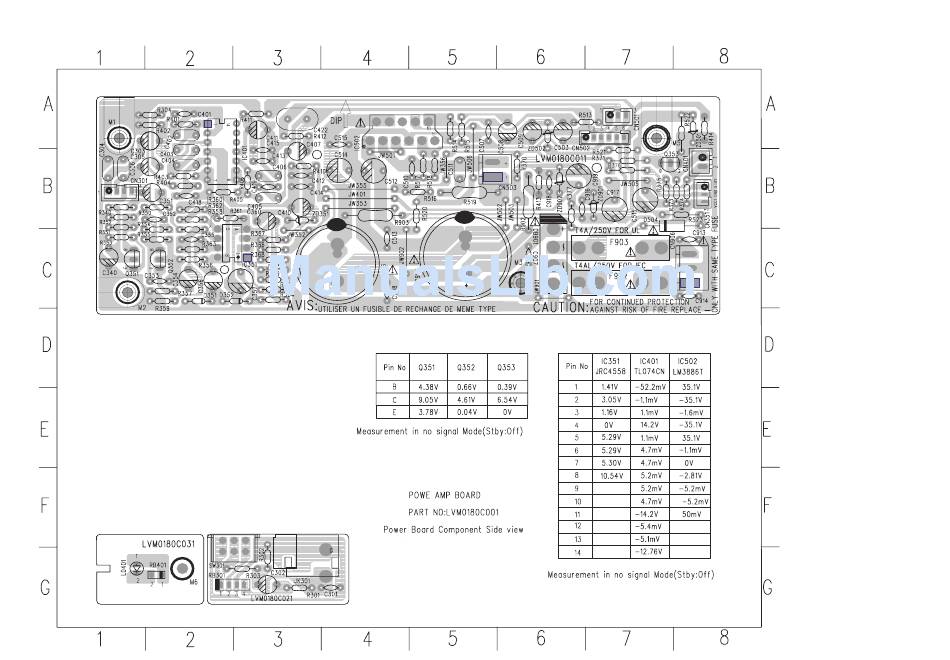

PCB LAYOUT VIEW - COMBI BOARD
5-3 5-3
C301 G4 C918 B6
C302 G3 C919 B6
C303 B1 CN301 B1
C304 A1 CN351 B8
C305 B1 CN401 B8
C306 B1 CN503 B6
C340 C1 CN906 C8
C351 B2 D351 C2
C352 B2 D352 C2
C353 C2 D504 B7
C354 C2 DB901 C6
C355 C2 F902 C7
C356 C2 F903 C7
C357 C3 IC351 C3
C360 B3 IC401 B3
C401 A2 IC502 A4
C402 A2 JK301 G3
C403 B2 JW351 C3
C404 B2 JW352 C3
C405 B3 JW353 B4
C406 B3 JW355 B4
C407 A3 JW356 B4
C410 B3 JW401 B4
C411 A3 JW501 B4
C412 B3 JW502 B6
C413 B3 JW503 B6
C414 B3 JW505 B7
C415 A3 JW506 B5
C422 A3 JW901 C6
C507 A5 JW902 C4
C508 A6 LD401 G1
C509 A6 Q351 C1
C510 B5 Q352 C2
C511 B5 Q353 B7
C512 B4 R301 G3
C513 C4 R302 G3
C514 B4 R303 G3
C515 A4 R304 A2
C516 B7 R350 B2
C905 C5 R351 C1
C906 C4 R352 B1
C907 C6 R353 C1
C908 C4 R354 C2
C913 C8 R355 C2
C914 C8 R356 C2
C916 B6 R357 C2
C917 B7 R358 B2
R359 C2
R360 B2
R361 B2
R362 B2
R363 C2
R364 C3
R365 C3
R366 C3
R367 C3
R368 C3
R369 C3
R370 B7
R373 B7
R374 B8
R375 B7
R376 B7
R401 A2
R402 A2
R403 B2
R404 B2
R405 B2
R406 B3
R410 B3
R411 A3
R412 A3
R413 B6
R414 A8
R513 A6
R514 A5
R515 A5
R517 B5
R518 B5
R519 B5
R520 B5
R521 B7
R522 A8
R523 B8
R902 B6
R903 B4
RB301 G3
RB401 G2
SW301 G2
ZD351 B3
ZD501 A8
ZD502 A6
ZD901 B7
ZD902 B6
