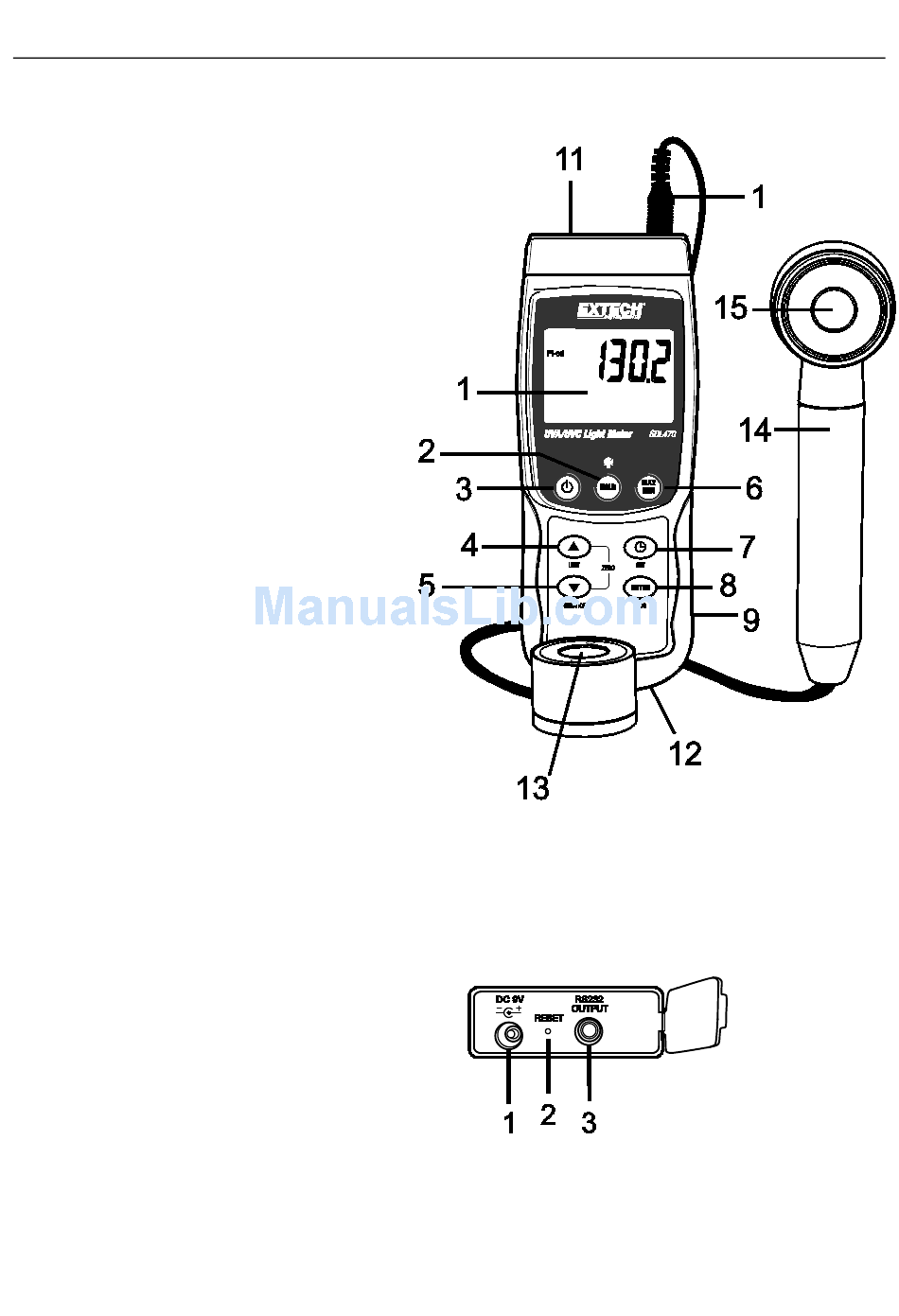

Meter Description

1. LCD display
2. HOLD and LCD Backlight button
3. Power button
4. Up arrow ▲ and UNITS button
Down arrow ▼ and FUNCTION button
5.
6. MAX-MIN button
7. Time/Date Check and SET button
8. ENTER and LOG button
9. Side compartment (detailed below)
10. UVA Probe and UVC Probe input plug
11. Type K/J thermocouple socket
12. SD Card Slot
13. UVC sensor
14. UVA probe handle
15. UVA sensor (protective cover not shown)
Note: Battery compartment, tilt stand, and tripod mount are located on rear of meter
1. DC 9V power adaptor jack
2. Reset button
3. RS-232 output port
3 SDL470-en-GB_v1.4 3/17
