Summary of Contents for Extech Instruments SDL310

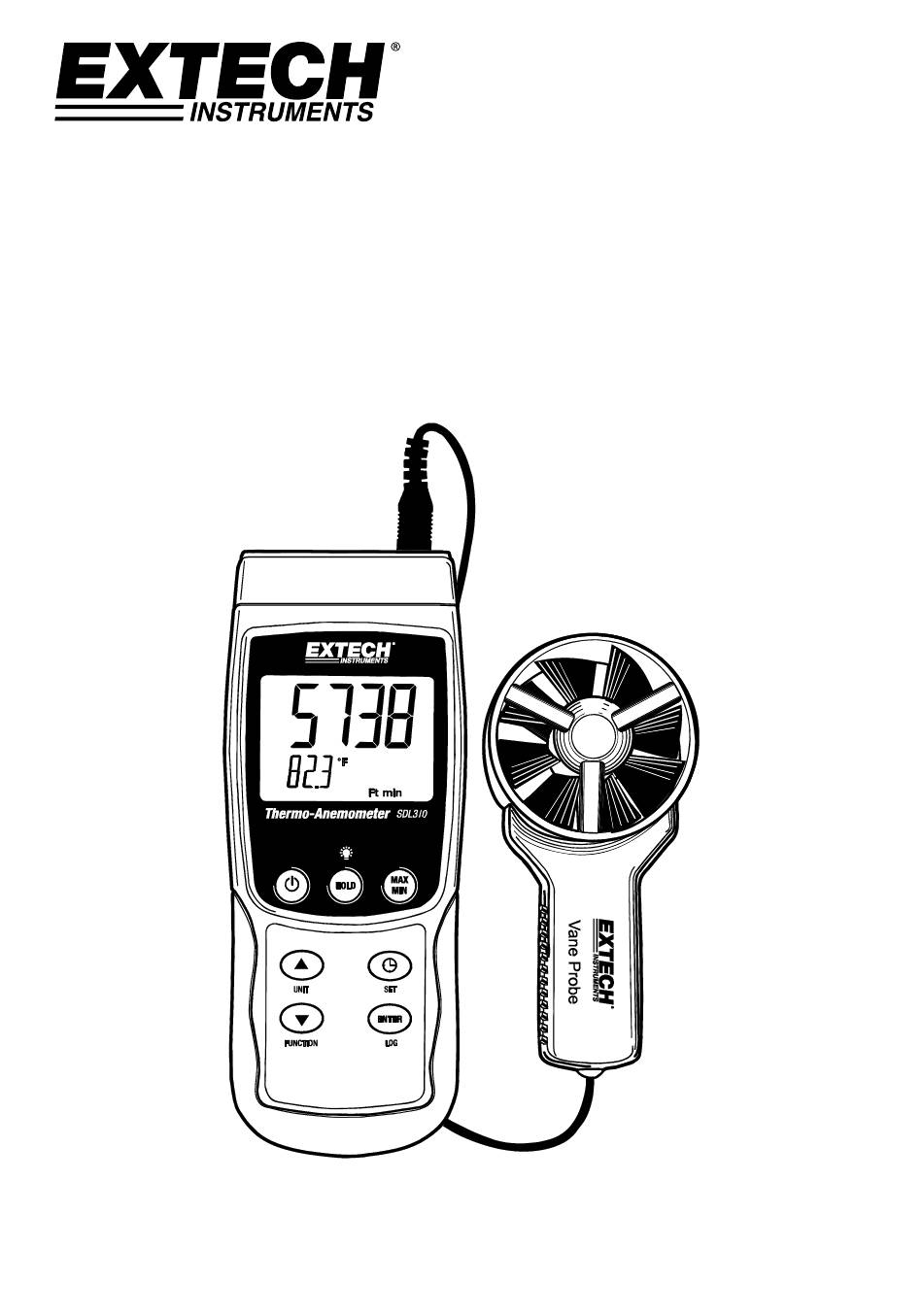

- Page 1 USER GUIDE Vane Thermo-Anemometer / Datalogger Model SDL310 contact: www.ponpe.com sale@ponpe.com...
-
Page 2: Meter Description

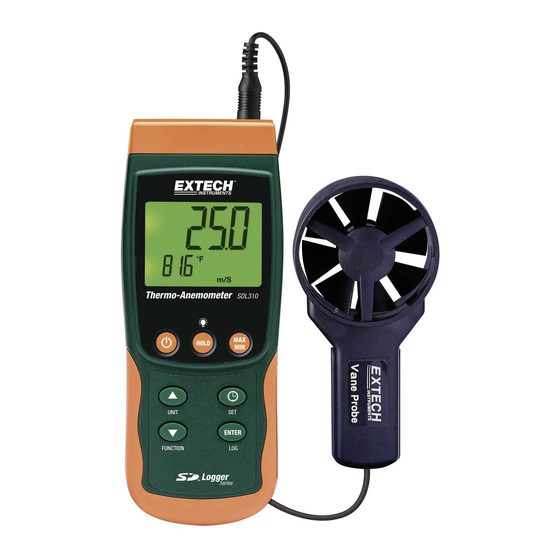

Introduction Congratulations on your purchase of the Extech SDL310 Thermo-Anemometer Datalogger. This meter displays and stores air velocity and temperature readings. Temperature readings from the thermometer built into the vane probe or from an externally connected type K or J thermocouple temperature probe can be displayed and recorded. -
Page 3: Operation
HOLD display icon will switch on. Press the HOLD key again to release the display and exit the Data Hold mode returning the meter to the normal operating mode. SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com... - Page 4 (under the snap-off compartment cover); plug the other end of the adaptor into an AC power source. The meter will now be permanently powered (as long as the adaptor is used) and the power key will be disabled. SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com...
- Page 5 (AMC01002.xls) where another 30,000 readings can be stored. This method continues for up to 99 documents, after which another folder is created (AMC02) where another 99 spreadsheet documents can be stored. This process continues in this same fashion with folders AMC03 through AMC10 (last allowable folder). SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com sale@ponpe.com...
- Page 6 RS-232/USB PC Interface For streaming of data to a PC via the RS232 Output jack, the optional 407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software (available free at www.extech.com/sdl310) are required. SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com...
-
Page 7: Setup Mode
Press ENTER to confirm setting. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com... - Page 8 Press ENTER to confirm setting. Press and hold the SET key for at least 1.5 seconds to exit to the normal operation mode (or simply wait 7 seconds for the meter to automatically switch to the normal operating mode). SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com...
-
Page 9: Battery Replacement And Disposal
Other Battery Safety Reminders Never dispose of batteries in a fire. Batteries may explode or leak. Never mix battery types. Always install new batteries of the same type. SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com sale@ponpe.com... -
Page 10: Specifications
With backlight OFF and datalogging ON: Approx. 36 mA dc Weight 347g (0.76 lbs.); meter only Dimension Main instrument: 182 x 73 x 47.5mm (7.1 x 2.9 x 1.9”) Anemometer sensor head: 72mm (2.8”) diameter SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com sale@ponpe.com... - Page 11 Note: Above specifications tested under an environmental RF Field Strength lower than 3 V/M and a frequency lower than 30 MHz Copyright © 2013 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com SDL310-EU-EN V1.4 07/13 contact: www.ponpe.com sale@ponpe.com...
