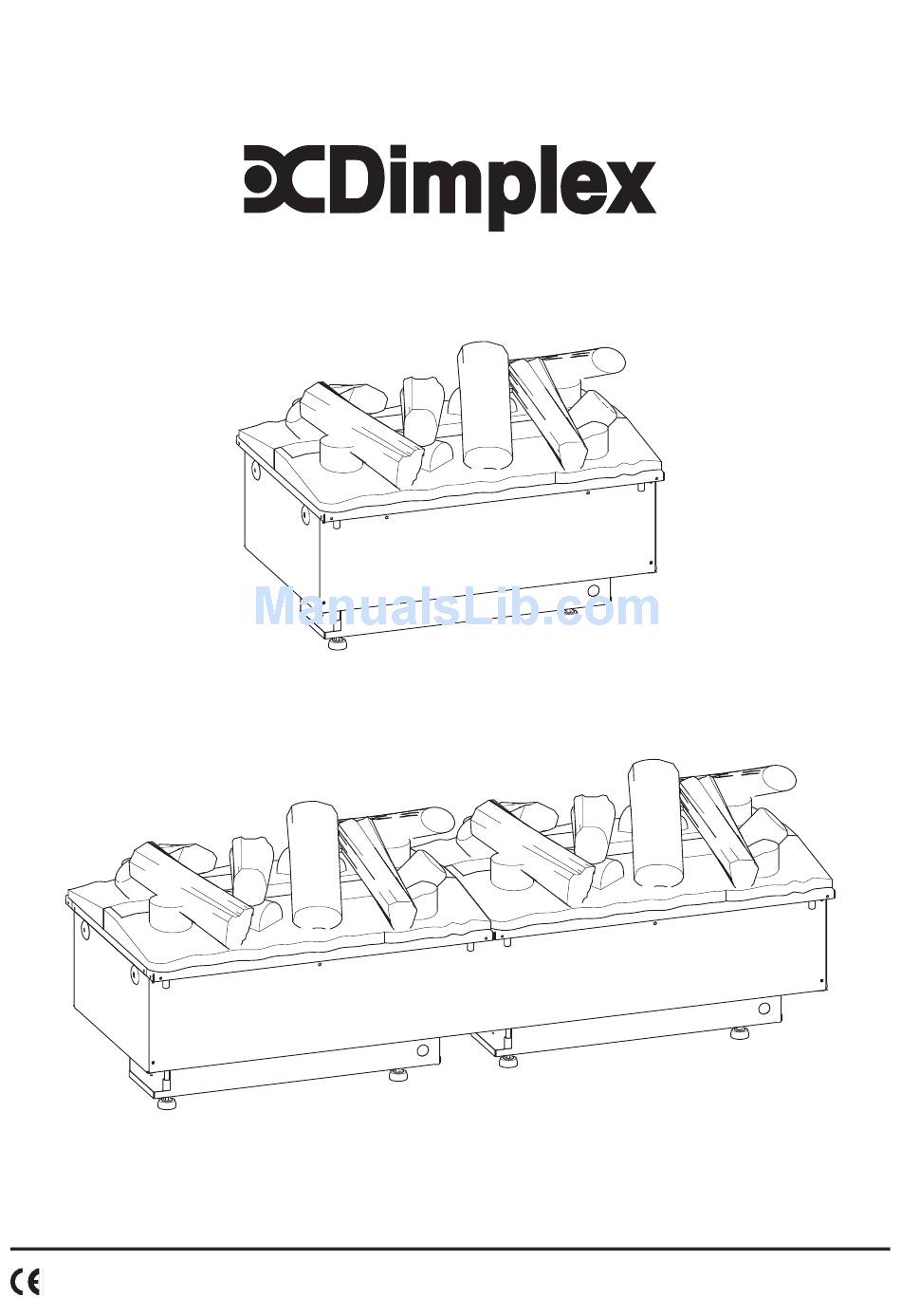

CAS500
CAS1000
08/53148/0
Issue 3
OCN 10604
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC)
EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
Approval Number ESV160149

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAS500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dimplex CAS500

Summary of Contents for Dimplex CAS500

  • Page 1 CAS500 CAS1000 08/53148/0 Issue 3 OCN 10604 The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC Approval Number ESV160149...
  • Page 2 Dimplex CAS500, CAS1000 Introduction Please read this information guide carefully to be able to safely install, use and maintain your product. Important Safety Advice When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation.

  • Page 3: General Information

    Surround Design The CAS500 and CAS1000 are designed to be built into a surround/wall. Using the dimensions provided (Fig.1) you can design a cavity for the appliance. Be sure to allow room under and around the appliance for the water connection and the electrical connection.

  • Page 4: Operating The Product

    Fuelbed, (Fig.7). The product is now assembled and is ready to be switched on. There is also a loose non LED log packed with the Fuelbed. For the CAS500 this can be placed on top of the Fuelbed or stored away with the packaging. For the CAS1000 the loose log can be placed on the center join between the two Fuelbeds.

  • Page 5: Getting The Desired Flame Effect

    1. Carefully lift off the fuelbed and set aside. 2. Press switch ‘A’ to the OFF (O) position. 3. Lift off the water tank(s), 1off on CAS500 and 2off on CAS1000 and take them to your water supply e.g. kitchen 4. Remove the cap by turning it anticlockwise 5.

  • Page 6: Receiver Controls

    To do this, please install the products as described in the “Installation Instructions”. Please ensure that the products are connected to mains power and have water supplied. If you are pairing CAS1000 and CAS500 products please choose the 6 button remote control as the master remote control. Pair the first product as described in the ‘REMOTE CONTROL’...
  • Page 7 We recommend cleaning the following components once every 2 weeks, particularly in hard water areas:- Water Tank, Sump, Nozzle, Tank cap and seal, Air filter. For general cleaning use a soft clean duster – never use abrasive cleaners. To remove any accumulation of dust or fluff the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater.

  • Page 8: Additional Information

    Should you require after sales information or assistance with this product please go to www.dimplex.com.au in Australia or www.dimplex.co.nz in New Zealand and select “Contact”. Please retain your receipt as proof of purchase.

  • Page 9: Troubleshooting

    Troubleshooting Symptom Cause Corrective Action The flame effect will Mains plug is not plugged in. Check plug is connected to wall socket cor- not start. rectly. Low water level. Check that the water tank is full and there is water in the sump. Low voltage connector not connected prop- Check that the connector is inserted correct- erly.
  • Page 10 MODEL DIM ‘A’ CAS500 508mm CAS1000 1017mm Fig.1 Fig.2 Fig.3a Fig.3b Fig.3c Fig.4 Fig.5...
  • Page 11 Fig.6 CAS500 CAS1000 Fig.8a Fig.7 Fig.8b Fig.10 Fig.11...
  • Page 12 Switch ‘A’ CAS500 Fig.9 CAS1000 Fig.12 Fig.13 Fig.14 ‘A’ Fig.16 Fig.15...
  • Page 13 Fig.17 >210cm >210cm Fig.18 >420cm >420cm...
  • Page 14 Web: www.dimplex.co.nz This product is protected by Intellectual property rights and patents owned by Glen Dimplex Australia Pty Ltd or members of the Glen Dimplex Group on an international basis. The Glen Dimplex Group of Companies will actively protect these rights.
