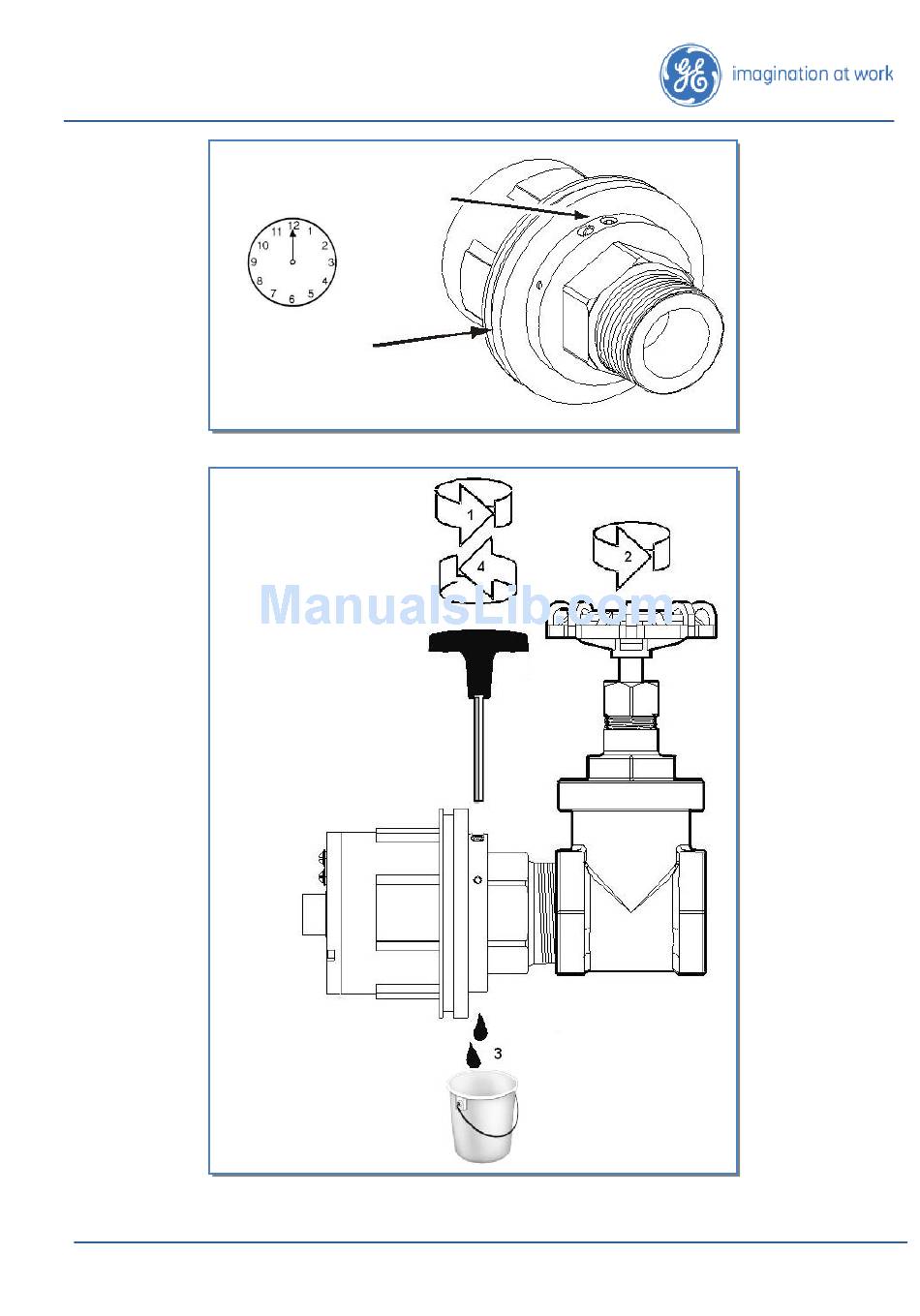

Figure 17: The Bleed Screw Must Be On Top, At The 12 O'clock Position; Figure 18: Opening The Valve And Purging The Air From The Sensor - GE hydran m2 Installation Manual

Hydran* M2 Installation Guide
1.
2.
3.
4.
5.
Note: The clamp ring is not
shown for clarity purposes.
16375 v9.0 Oct 12
Bleed screw must be on top, at
the "12 o'clock" position when
sensor is installed horizontally.
O-ring

Figure 17: The Bleed Screw Must Be on Top, at the 12 O'clock Position

Loosen bleed screw.
Slowly open valve.
Purge air from sensor
(collect oil in bucket).
Tighten bleed screw.
Wipe oil from valve and
sensor using rag.

Figure 18: Opening the Valve and Purging the Air from the Sensor
