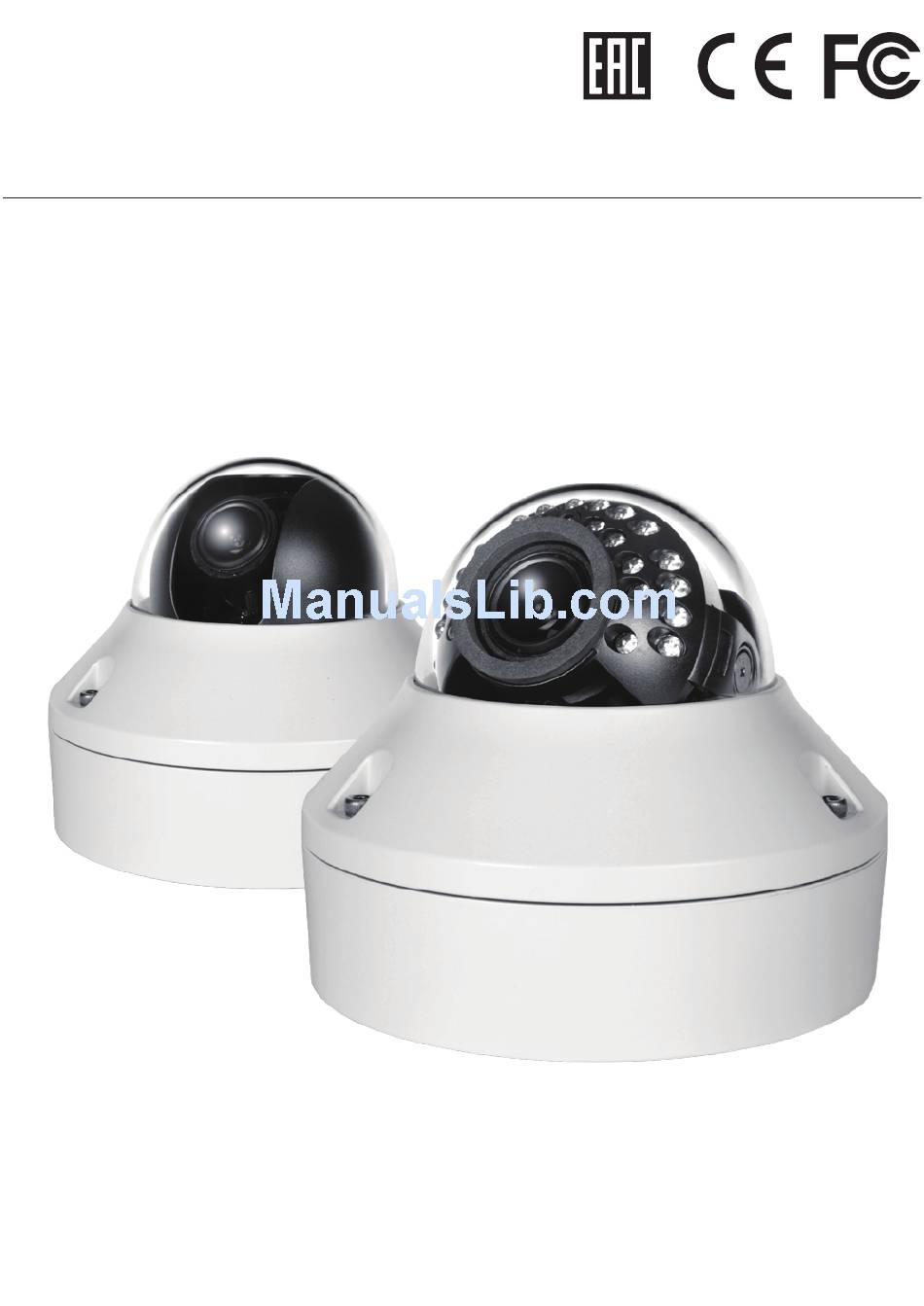

- Page 1 M264-AV(N)82V-001 FULL AHD V AN DAL DOME C AMERA OPER ATI ON M ANUAL Thank you for choosing our high quality camera. Before attempting to connect or operate, please read and follow these instructions.
-
Page 2: Important Safety Instructions
C O NT E NT S 1. NOTICES 2. IMPORTANT SAFETY INSTRUCTIONS 3. FEATURES 4. EQUIPMENT AND ACCESSORIES 5. OVERVIEW AND FUNCTION 6. INSTALLATION 7. CONNECTION 8. DIMENSIONS 9. SPECIFICATION 10. OSD MENU STRUCTURE 11. AHD UTC (UP THE COAX) CAU T ION These servicing instructions are for use by qualified service personnel only. - Page 3 1 . N OT I C E S This device complies with Part 15 of FCC regulations. Operation is subject to the following two conditions: 1. This device may cause harmful interference. 2. This device may receive interference that can cause affect the operation of this equipment.
- Page 4 1 . A T T EN T I O N Ce produit est conforme aux normes FCC section 15. La mise en service est soumise aux deux conditions suivantes : 1. cet appareil ne peut pas provoquer d’interference nuisible. 2. cet appareil doit pouvoir tolerer toutes les interferences auxquelles il est soumis, y compris celles qui pourraient influer sur son bon fonctionnement.
- Page 5 1. N OT IC E S WEEE (Waste Electrical & Electronic Equipment) This marking shown on the product or its remove, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
- Page 6 1. A T T E N T I O N Les Bons Gestes de mise au rebut de ce produit (Déchets d’équipements électriques et électroniques) (Applicable dans les pays de l’Union Européenne et dans d’autre pays européens pratiquant le tri sélectif) Ce symbole sur le produit, set accessoires ou sa documentation indique que ni le produit, ni ses accessoires électroniques usagés (chargeur, casqvue audio, câble USB, etc.) ne peuvent être jetés avec les autres déchets ménagers.
- Page 7 2 . IMP O R TA NT S A FE T Y I NS T RU C T IO N S 1) All warning and instruductions in this manual should be followed. 2) Save this manual for future reference. 3) Heed all warnings. 4) Follow all instructions.
- Page 8 2 . C o n s i g ne s de s é c u ri t é i mp o rt a n t e s 1. Veuillez lire ces instruction. 2. Conservez cette instruction. 3. Prêtez attention à tous les avertissement. 4.
- Page 9 3 . F E AT U R E S • High resolution SONY 1/2.8" 2.1MP Progressive Color CMOS Image Sensor, 1080p(1920x1080)@30fps • Support various digital video output 1080p@30fps / 1080p@25fps / 720p@30fps / 720p@25fps • AHD (Analog HD) Output AHD is suitable for long reach transmission over single coaxial cable. Transmission Distance: 300 m (Color) Max.
- Page 10 4 . EQ UI P ME N T AN D A C CE SS O R I ES Camera Manual Template Screws(3ea) / Plastic Anchors (3ea) Service Video Output Test Cable / Wrench / Micro Screw (1ea) Pigtail Cable (12VDC only) Pigtail Jack (Dual)
-
Page 11: Optional Accessories
O P T I ON A L A C CE S S O R IE S 136.3 26.5 Camera Mounting Hole Box adapter - Junction box mount adapter for outdoor dome camera - Rough-in box adapter fits 1 or 2 gang or 4"... -
Page 12: Ov Er V I E W A N D F Un C T Io N
5 . OV ER V I E W A N D F UN C T IO N • LED Type IR LED OSD Joystick Service Video Connector • Standard Type OSD Joystick Service Video Connector... -
Page 13: Installation
6 . INS T AL LA TI O N • LED Type Plastic Anchors Template Housing Bottom Lens Focus Knob Lens Zoom Knob Screws 3-AXIS Gimbal Shroud Dome Cover Cover Screws... - Page 14 6 . INS T AL LA TI O N • Standard Type Plastic Anchors Template Housing Bottom Lens Focus Knob Lens Zoom Knob Screw 3-AXIS Gimbal Shroud Dome Cover Cover Screw...
- Page 15 7 . C ON NE CT I O N - 12VDC AHD DVR 12VDC POWER SUPPLY - 24VAC/12VDC AHD DVR PIGTAIL JACK 24VAC/12VDC POWER SUPPLY - Service Video Connector HANDHELD MONITOR TEST CABLE VIDEO IN OPEN COVER VIDEO output & VIDEO_EXT signal Press Left key more than 5sec.
- Page 16 8 . D IM EN S I O N S Unit : mm(inch)
-
Page 17: Specification
9 . SPE CIF I C A TI ON Standard type LED type Image Device 1/2.8” PROGRESSIVE SCAN SONY CMOS Effective Pixels 1984 (H) x 1105 (V) Unit cell size 2.8um (H) x 2.8um (V) AHD : 1080P 30fps(25fps) / 720p 30fps(25fps) Video output mode TV Out : CVBS NTSC/PAL (Service Video) Transmission Distance... -
Page 18: Menu Structure
1 0. O SD M E NU ST R U C T UR E • Menu structure Main 1st Sub Menu 2nd Sub Menu Value INDOOR/ OUTDOOR(MIN SHU, MODE MAX SHU) LENS IRIS SPEED 0~15 AUTO, 1/30(25), 1/60(50), FLK, 1/240(200), 1/480(400), 1/1000, SHUTTER 1/2000, 1/5000, 1/10000, 1/50000, X2, X4, X6, X8, X10, X15,... - Page 19 1 0. O SD M E NU ST R U C T UR E Main 1st Sub Menu 2nd Sub Menu Value CAM TITLE 0~9, A~Z, Special Character FREEZE OFF/ ON D-EFFECT MIRROR OFF/ MIRROR/ V-FLIP/ ROTATE NEG. IMAGE OFF/ ON SELECT AREA1/ AREA2/ AREA3/ AREA4 DISPLAY...
- Page 20 1 1. UT C ( U P T HE C O A X) The UTC function supports OSD control via AHD coaxial cable. Important) * When low quality coaxial cable is used, it may not be possible to control OSD menu.
