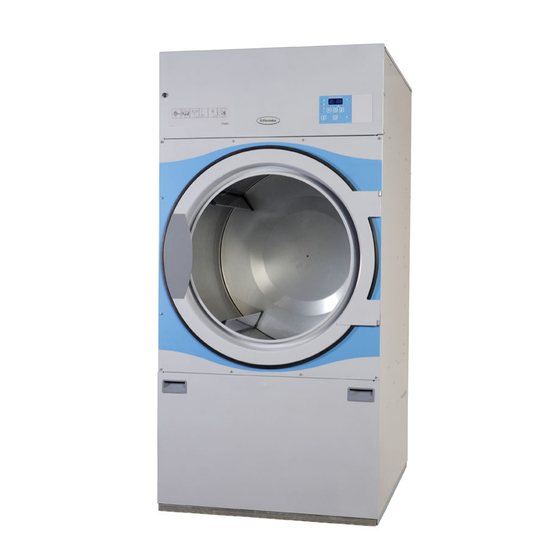

Electrolux T4290 Programming Manual

Electrolux T4290 Programming Manual

Selecta ii control
Hide thumbs Also See for T4290:

Advertisement

Programming manual
Selecta II Control
T4290, T4530, T4650,
T4900, T41200, T4300S, T4420S
TD30, TD50, TD75,
TD100, TD135, TD30x30, TD45x45
WD4130, WD4240
T4250 from machine no. 23350/0006970
T4350 from machine no. 23250/0003715
487 05 40 01/EN
2011.01.11

Advertisement

Table of Contents
loading

Summary of Contents for Electrolux T4290

  • Page 1 Programming manual Selecta II Control T4290, T4530, T4650, T4900, T41200, T4300S, T4420S TD30, TD50, TD75, TD100, TD135, TD30x30, TD45x45 WD4130, WD4240 T4250 from machine no. 23350/0006970 T4350 from machine no. 23250/0003715 487 05 40 01/EN 2011.01.11...
  • Page 3: Table Of Contents

    Contents Contents Safety precautions­..................5 Programming­ ....................7 Gas reset button­ ..................7 Operating panel­ ..................8 Quick-diagram­..................9 Changing of parameters in Group 0­............10 Reading the hour counter in Group 1­..........12 Parameter overview- Area A­ ..............13 Error codes overview­ ................14 The manufacturer reserves the right to make changes to design and com­...
  • Page 5: Safety Precautions

    Safety Precautions Safety Precautions Do not dry unwashed items in the machine The machine is not to be used if industrial chemicals have been used for cleaning. Do not allow minors to use the machine. Do not hose down the machine with water. The machine's door lock must under no circumstances be bypassed.
  • Page 7: Programming

    Programming Programming To enter the programming mode press service button A. After pressing the service button A the display shows: 0 -- = Group 0. Program­the­dryer,­see­Service­Manual­for­Selecta­Control­from­ver.­4.xx­ for­programming­details. Gas reset button The button B­is­the­gas­reset­button. High voltage on the printed circuit board Note that there is high voltage on the circuit board.
  • Page 8: Operating Panel

    Programming Operating panel There­are­different­types­of­operating­panels. On the dryer operating panel the buttons might not have any symbols in which­case­they­are­only­usable­when­the­dryer­is­in­service­mode. In­service­mode­the­4­buttons­are­used­for­changing­the­parameters. Selected temperature Light emitting diode is lit at the selected temperature or show the default- temperature­setting.­ Default­temperature­can­be­set­in­Group­B­in­parameter­A­05. SELECTA CO N TRO L High Medium Down...
  • Page 9: Quick-Diagram

    Programming Quick-diagram Main groups Subgroups Group 0 - Temperature / drying time 0 01 - 0 08 Group 1 - Reading total counters 1 01 - 1 05 Group 2 - Code to area B Area B see service manual Selecta Control from ver.
  • Page 10: Changing Of Parameters In Group 0

    Programming Changing of parameters in Group 0 SELECTA CO N TRO L Adjusting drying time 1.­ Press­Enter. The display shows 0 01, indicating Group 0, parameter location­01­=­High­temperature. 487 09 10 00.00 487 22 93 40.00 2.­ Press­Up­to­reach­parameter­location­0­06.­ This is the parameter location for the Time per coin or push­value.­The­value­in­this­location­is­the­number­of­...
  • Page 11 Programming Adjusting operating temperatures SELECTA CO N TRO L 1.­ Press­Enter. The display shows 0 01, indicating Group 0, parameter location­01­=­High­temperature. 2.­ Press­Enter­again­to­enter­this­parameter­location.­The­ 487 09 10 00.00 487 22 93 40.00 display­shows­_­70­(°C). Note: The flashing bar at the bottom of the left digit SELECTA CO N TRO L indicates that this is a two-digit parameter.
  • Page 12: Reading The Hour Counter In Group 1

    Programming Reading the hour counter in Group 1 SELECTA CO N TRO L Example: 1.­ Press­Up. The display shows 1 _ _ indicating Group 1 = Reading total 487 22 93 40.00 counters 2.­ Press­Enter. The display now shows 1 01 indicating Group 1, parameter 01 = Permanent total hour counter.­...
  • Page 13: Parameter Overview- Area A

    30 - 70°C 1°C Air outlet temperature Medium 0 03 Low temperature 30 - 70°C 1°C Air outlet temperature Low T4290, T4530, T4650, T4900, T41200 0 01 High temperature 30 - 80°C 1°C Air outlet temperature High 0 02 Medium temperature 30 - 80°C...
  • Page 14: Error Codes Overview

    Programming Error codes overview Error Description code E 01 Not in use E 02 Not in use E 03 The input sensor has short circuited The thermistor that measures air temperature at the drum inlet or the wires running to the sensor has short circuited.
  • Page 15 Programming Error codes overview Error Description code E 19 Not in use E 20 Machine is out of operation The tumble dryer has been deactivated by the PC software. E 21 Network error, no polling CMIS The computer has not called the tumble dryer during the timeout period. E 22 Network error, no polling CBT The computer has not called the tumble dryer during the timeout period.
  • Page 16 Electrolux Laundry Systems Sweden AB 341 80 Ljungby, Sweden www.electrolux.com/laundrysystems Share more of our thinking at www.electrolux.com...
