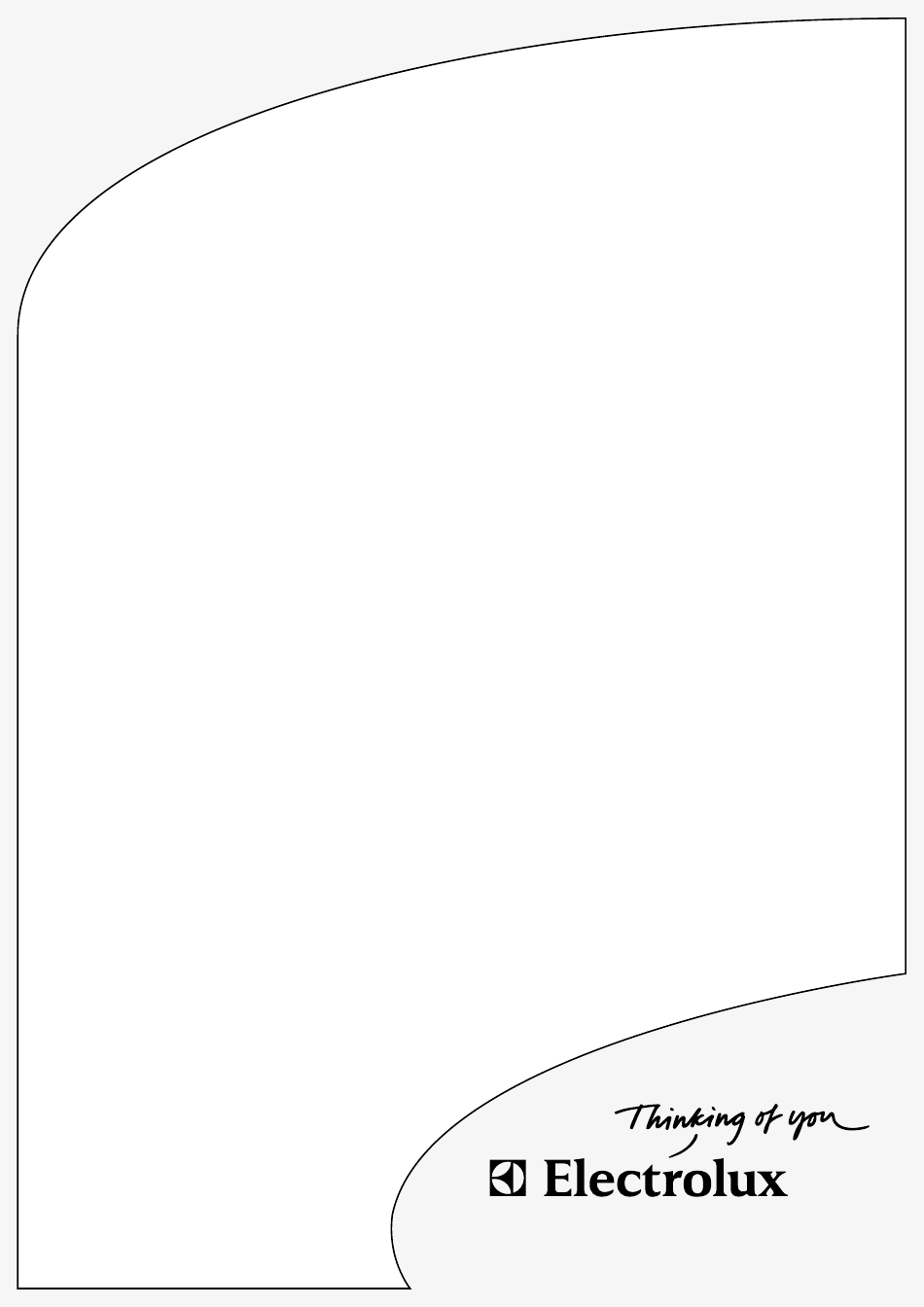

  • Page 1 Installation manual T4300S Selecta Control 487 05 45 80/US 09.26...
  • Page 3 Safety and warning signs WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR ELECTROLUX MACHINE. KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE REFERENCE. Warning: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personnel injury or death.
  • Page 4 Safety and warning signs NOTICE TO: OWNERS, OPERATORS AND DEALERS. IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS.
  • Page 5 Safety and warning signs WARNING– Risk of fire Clothes dryer installation must be performed by a qualified installer. Install the clothes dryer according to the manufacturer's instructions and local codes. Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, use duct that has been investigated and found acceptable for use with clothes dryers.
  • Page 6 Safety and warning signs Safety and warnings signs Located at the front of the dryer Replace if missing or illegible. One or more of these signs must be affixed on each machine. WARNING! CAUTION! Dry water-washed A clothes dryer fabrics ONLY. produces combustible To avoid hazard, do not lint and the area around...
  • Page 7 Safety and warning signs Located at the rear of the dryer CAUTION Risk of Fire A clothes dryer produces combustible lint and should be exhausted outdoors. See installation manual. THIS DRYER MUST BE EXHAUSTED TO THE OUTDOORS. INSTRUCTIONS 487 18 97 34 487 18 97 33 INSPECT EXHAUST DUCTING EVERY 6 “Warning”...
  • Page 8 Safety and warning signs Electrical Information It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electrical connections, material, and workmanship must conform to the applicable requirements of the NATIONAL ELECTRIC CODE, see the data plate.
  • Page 9 Safety and warning signs Gas Information t is your responsibility to have ALL plumbing connections made by a qualified professional to insure that the installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of the National Fuel Gas Code, see the data plate.
  • Page 10 Safety and warning signs Gas Data Natural Gas The natural gas supply pressure to the dryer must be between 6 and 10 inches water column. If the pressure is too low, ignition failure and/or slow drying times may result. Excessively high supply pressure will result in erratic operation of the gas valve’s internal pressure regulator.
  • Page 11 Safety and warning signs IMPORTANT: Water column pressure of 4.2 -inches for natural gas dryers and 11.0 inches for propane gas dryers is required at the gas valve pressure tap (2) of each dryer for proper and safe operation. A 1 /8” N.P.T. plugged tap, accessible for test gauge connection, must be installed in the main gas supply line immediately upstream of each dryer.
  • Page 12 Safety and warning signs Additional safety instructions and warnings Using the dryer • Do not operate this appliance before reading the instruction booklet. • Do not put articles containing foam rubber, plastic or similarly textured rubberlike materials in the dryer. •...
  • Page 13 Safety and warning signs FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE, DO NOT DRY MOP HEADS IN THE DRYER. DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES. IMPORTANT YOU MUST DISCONNECT and LOCKOUT THE ELECTRIC SUPPLY and THE GAS SUPPLY or THE STEAM SUPPLY BEFORE ANY COVERS or GUARDS...

  • Page 15: Table Of Contents

    Contents Contents Safety precautions ................17 Technical data ..................19 Setup ....................23 Positioning ..................23 Connection to network ..............24 Unpacking ..................25 Remove the dryer from the pallet ..........25 Installation .................... 27 Mechanical installation ..............27 Connection branch ................. 27 Evacuation system ................

  • Page 17: Safety Precautions

    Safety Precautions Safety Precautions This machine is only intended for drying water-washed garments. Clothes that have been cleaned with chemicals/flammable liquids, must NOT be dried in the machine. Remove clothes from the tumble dryer as soon as they are dry. This prevents them from becoming creased, and reduces the risk of spontaneous ignition.

  • Page 19: Technical Data

    Technical data Door opening = Ø 580 mm / 22 13/16 inch Operating panel Electric connection Gas connection Pipe connection, evacuation 1115 1940 1270 1210 1930 inch 31 1/8" 43 8/9" 76 1/4" 50" 47 5/8" 12 5/8" 10 1/4" 35 5/8"...
  • Page 20 Technical data Technical data - Gas heated dryer Metric and non metric version (USA 60Hz) Metric Non metric version version Drum volume: 2 x 300 litre 2 x 10.6 cu.ft. Weight: Net 282 kg 620 lbs Drum: 760 mm 29 15/16” Diameter Depth 660 mm...
  • Page 21 Technical data Technical data - motor specifications 120V / 1 / 60 Hz Blower motor (No. 487028120): 550W Effect 3410 rpm Revolutions per minute: Drum motor (No. 487028121): 520W Effect 3415 rpm Revolutions per minute: 208-240V / 1 / 60 Hz Blower motor (No.

  • Page 23: Setup

    Setup Setup Positioning Locate the dryer to ensure easy use and service. The distance to the wall or other equipment behind the dryer should be min. 20 inch (500 mm). Apart from the minimum distances shown on fig. 1 there are no further requirements to the distance around the dryer.

  • Page 24: Connection To Network

    Setup Connection to network If several tumble dryers are to be connected to a network, the plugs A in the side panels must be removed before the dryers are installed. A bushing for network cables must be installed from the inside in the right-hand side panel. The bushing must be pushed right through the hole in the left-hand side panel on the side of the dryer.

  • Page 25: Unpacking

    Setup Unpacking Handle the machine carefully when unpacking. There are no transport fittings. Remove the dryer from the pallet At least 2 people are required to remove the dryer from the pallet. The dryer is secured to the pallet with 3 transport screws.

  • Page 27: Installation

    Installation Installation Mechanical installation Adjust the dryer so that it is horizontal and stable on all four feet. The height of the feet can be regulated by a maximum of 50 mm / 1 15/16 inch. Once adjustment is complete, lock the feet with the self-locking nuts.

  • Page 28: Evacuation System

    Installation Evacuation system Fresh-air For maximum efficiency and the shortest possible drying time, it is important to ensure that fresh air is able to enter the room from the outside in the same volume as that blown out of the room. To avoid a draught in the room, it is advisable 5 x A to place the air inlet behind the dryer.

  • Page 29: Exhaust Duct

    Installation Exhaust duct • The exhaust duct must be smooth on the inside (low air resistance). • The exhaust duct must lead to the outdoors. • The exhaust duct must lead clear of the building as condensation may cause frost damage to the building. • The exhaust duct must be protected against rain and foreign objects. • The exhaust duct must have gentle bends. • The exhaust duct must not be a shared duct between dryers and appli- ances using gas or other fuels as their energy source. When several dryers share an exhaust duct • The exhaust duct diameter must increase after each dryer. The table below shows the exhaust duct diameter and the necessary fresh-air inlet area.
  • Page 30 Installation Gentle bends W00049 Several dryers share an exhaust duct W00123...
  • Page 31 Installation Exhaust duct The exhaust duct must be designed to minimize backpressure. The end of the exhaust duct must never be exposed to wind pressure. Maximum duct length With With With 1 elbow 2 elbow 3 elbow 30 ft 24 ft 18 ft Exhaust illustrations Acceptable...

  • Page 32: Gas Installation

    Installation Gas installation It is your responsibility to have all plumbing connections made by a qualified professional to insure that the gas plumbing installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL plumbing connections, material, and workmanship must conform to the applicable requirements of the National Fuel Gas Code ANSI Z223.1- LATEST EDITION or the CAN/CGA-B149, INSTALLATION CODES - both the...

  • Page 33: Test Run

    Installation Test run Loosen the pressure measuring tap screw (2) 1/4 of a turn. Connect a manometer to the measuring tap. Select a program that uses heat. Start the dryer. Check the nozzle pressure, see table. If necessary adjust the regulator setting screw (4) found behind cover screw (3).

  • Page 34: Conversion To Propane Gas / Natural Gas

    Conversion kit for propane gas is enclosed in secondary packing. Please contact your dealer or Electrolux if the current gas type is not propane/ natural gas. Nozzles sizes depending on altitudes The nozzles have to be ordered separately from the Spares Dept.

  • Page 35: Conversion Instructions

    Installation Conversion instructions 1. Disconnect the power to the dryer. 2. Dismount the back panel. 3. Remove nozzle (1), see Fig. 3. 4. Mount the enclosed nozzle (1), see Fig. 1. 5. Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring branch (2), see Fig.

  • Page 36: Tables Of Pressure And Adjustments

    Installation Tables of pressure and adjustments ** Nozzle dimension at Heat effect 2 x 71600 Btu/h altitude up to 1999 ft Gas pressure Ø Label Country Upper Heat Heat Gas type Nozzle calorific effect effect Nozzle pressure Inlet **mm fig. 4 (Measuring branch 2) value total...

  • Page 37: Electric Installation - Gas Heated Tumble Dryer

    Installation Electrical installation Gas heated tumble dryer It is your responsibility to have ALL electrical connections (including grounding) made by a properly licensed and competent electrician, to assure that the electric installation is adequate and conforms with local and state regulations or codes. In the absence of such codes, ALL electric connections, material, and workmanship must conform to the applicable requirements of the NATIONAL or the CANADIAN ELECTRICAL CODE,...

  • Page 38: Before Servicing The Tumble Dryer

    Installation Before servicing the tumble dryer While one tumbler in a dryer is being serviced, the other must not be in use. If the top dryer or the bottom dryer needs servicing, the remaining tumbler may be kept in service if it is operating properly. While one pocket is being serviced, all power to the machine must be shut off at the circuit breakers.

  • Page 39: Function Check

    Function check Function check To be carried out by qualified personnel Check that the drum is empty and the loading door is closed. Start the dryer Check if the switches are working properly: • The dryer must stop if the loading door is ope- ned. W00130 • The dryer must stop when the lint drawer is opened. Checking the direction of rotation Correct direction of rotation: clockwise.

  • Page 41: Dimenstion Sketch - Adapter For Direct Fresh-Air Intake

    Dimension sketch - Adapter for direct fresh-air intake Dimension sketch - Adapter for direct fresh-air intake Adapter kit no. 988 802 050 - Gas and electric heated dryer Connecting branch in top / bottom for fresh-air intake, diameter Ø12” (Ø 315 mm) 1195 mm 790 mm 210 mm...
