SAVE THESE
INSTRUCTIONS

Charging

Your vacuum can be manually charged
via the jack plug or automatically charged
via the charging dock.
• Before first use, the battery must be
charged for at least 5 hours.
NOTE: While charging, the charger may
become warm. This is normal and does
not indicate a problem. The appliance
can be left connected to the charger
indefinitely.
WARNING:
battery at ambient temperatures below
50 °F or above 104 °F.

LED INDICATORS

The power indicator (4) has various
settings that show the charging status.
NOTE: If the power switch (11) is turned
off, the power indicator will not illuminate.
Pulsing Blue
Solid Blue
Solid Orange
All lights on

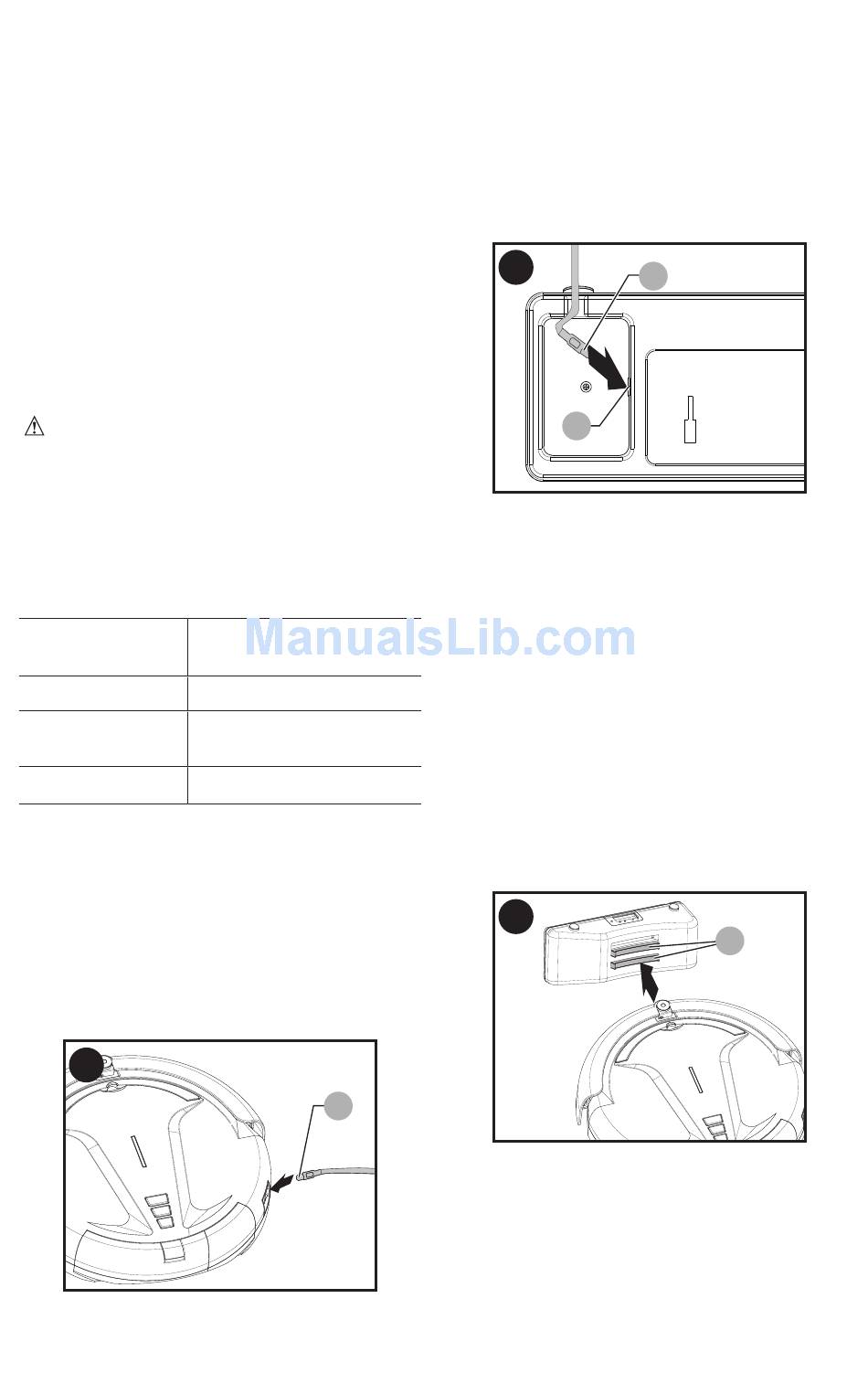

MANUALLY CHARGE (FIGURE A, B)
1. Plug the battery charger (23) into a
wall outlet.
2. Slide the jack plug (27) end of the charger
into the charging socket (12) of the
vacuum.
3. The power indicator (4) will blink,
meaning the vacuum is charging. The
power indicator will remain lit when the
vacuum is fully charged.
B
AUTOMATICALLY CHARGE
(FIGURE A, C, D)
1. Plug the battery charger (23) into a
Do not charge the
Charging—charged
enough to vacuum
Fully charged
Low battery—can not
vacuum
Error, robot stuck
27
wall outlet.
2. Slide the jack plug (27) end of the charger
into the charging dock's (21) charging
socket (28) as shown in Figure C. The
charging dock's LED screen (22) will
turn on.
3. Place the charging dock on the floor.
NOTE: Do not place anything under the
charging dock. It will prevent the vacuum
from automatically charging.
C
28
4. Place the vacuum against the charging
dock so that the charging electrodes
(7) contact the two charging plates (29)
as shown in Figure D.
5. The power indicator (4) will blink and
the charging icon on the LED screen
(22) will scroll, meaning the vacuum
is charging. The power indicator
will remain lit when the vacuum is
fully charged.
NOTE: The vacuum will search for the
charging dock when it is low on battery.
However, if the room is too large or the
vacuum is obstructed from "seeing"
the dock, it may fail to find the dock to
automatically recharge. If this occurs,
place the vacuum at the charging dock as
described above.
D

Operation

SWITCHING ON AND OFF
In order for the vacuum to operate in any
cleaning mode, the power switch (11)
must first be switched on.
1. Press the side of the power switch
marked "ON".
4
27
29
