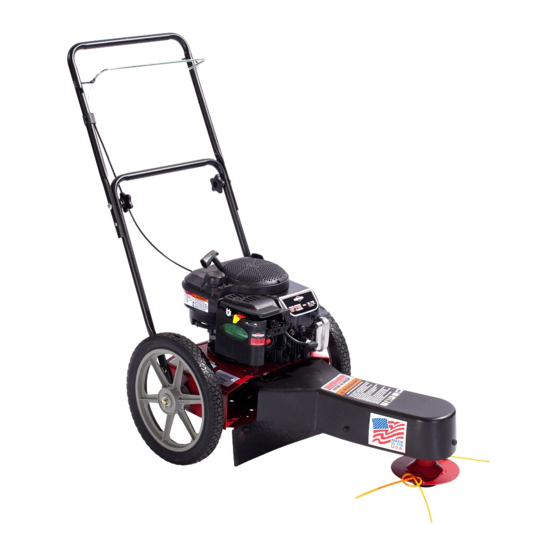

OWNER'S
MANUAL
MODEL NO.
ST50022STDQ
ST60022Q
ST60022DXQ12RK
ST65022Q
ST65022DXQ
ST6002212V
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
Rev 04-114
1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
OTRIMSTD03
Visit us at : www.swisherinc.com
Trim-Max
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE 660-747-8183 FAX 660-747-8650
Trim-N-Mow
Made In The
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST60022Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swisher ST60022Q

Summary of Contents for Swisher ST60022Q

  • Page 1 Visit us at : www.swisherinc.com OWNER’S Trim-N-Mow MANUAL MODEL NO. ST50022STDQ ST60022Q ST60022DXQ12RK ST65022Q ST65022DXQ ST6002212V Trim-Max IMPORTANT Read and follow all Safety Precautions and Instructions Assembly before operating this Operation equipment. Service and Adjustment Rev 04-114 Repair Parts 1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093...

  • Page 2: Limited Warranty

    1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Safety Instructions

    Safety Instructions This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. • Read, understand and follow all instructions in the manual and on the trimmer before starting •...

  • Page 4: Slope Operation

    Slope Operation Slopes are a major factor related to loss of control and slip accidents, which can result in severe injury. All slopes require extra caution. If you feel uneasy on it do not trim it. • DO: Trim across the face of a slope and not up and down. •...
  • Page 5 The operation of any cutter can encounter foreign objects to be thrown into the eyes, resulting in severe eye damage. Always wear certified safety glasses or wide-vision safety goggles for over spectacles before staring any cutting machine and while operating such a machine. The operation of any cutter produces sound waves that are damaging to the human ear.
  • Page 6 Assembly Contents of Box: • Trimmer • Parts bag containing: • Manual • Engine manual • Safety goggles • Bottle of engine oil • 4 sets of .155 trimmer line Tools Required: • ?” wrench Handle Adjustment Installation of handles •...

  • Page 7: Operation

    Preparing Unit For First Use • Fill engine crankcase with oil. A bottle has been provided with this unit. DO NOT OVERFILL. • Fill the engine fuel tank with gasoline. GASOLINE SHOULD BE ADDED OUTSIDE IN A WELL-VENTILATED AREA. • Check to ensure string has been installed properly.

  • Page 8: Trim-Max Operation

    Installing String Important! Use the proper length of string. Using a string too long for the unit will cause stalling and unacceptable operation. 3 – 5 HP use 16” String 5+ HP use 18” String • Loosely fold string in half. •...

  • Page 9: Trimmer Maintenance

    Trimmer Maintenance Make sure your trimmer is in safe working condition by keeping the following guidelines in mind every time you use your trimmer. • Keep trimmer in good operating condition and keep all guards and shields in place. DO NOT operate this trimmer if any of the shields and guards are missing.
  • Page 10 Trim-N-Mow 14” Wheel Part # 2002 Paint Reference Chart Color Paint Code Texture Black Texture Red See Detail Page 11 Briggs & Stratton Engine Upper Handle 2016 Trimmer Pulley & Washer 2065 Operator Presence Bail 2020 5/16-18 X 3/4 Serr Flg Bolt NB596 Rope Guide 2046...
  • Page 11 Trimmer Head Assembly for Standard Item # Description Part # 5/8-11 2 Way Lock Jam Nut NB595 Blade Pulley- 4.5" 2049 5/8 ID X 1 OD 14 GA Washer NB149 Blade Bearing B985/8 Compression Spring 2033 Head Weldment 2010 Std Trimmer Stabilizer Weldment 2032 Spinner Shaft 2024...
  • Page 12 Trim-Max Axle Setup Deluxe Axle 12 Volt Deluxe Axle Item # Description Part # 16" Wheel 2003 16" Steel Spoke Wheel 2094 #3 Hair Pin NB127 1/2 USS Flat Washer ZP NB555 Axle 2025 Axle (Zinc Plated) 2093Z Axle Plate 2106...
  • Page 13 Deluxe Paint Reference Chart Color Paint Code Texture Black Texture Red See Detail Page 11 Item # Description Part # Item # Description Part # Briggs & Stratton Engine Upper Handle 2016 Engine Pulley- 6" 2065 Operator Presence Bail 2020 Sheild Strap 2018 5/16-18 X 1 1/2 Carriage Bolt...
  • Page 14 12 Volt Deluxe Paint Reference Chart Color Paint Code Texture Black Texture Red For Additional Parts See Page 13 Item # Description Part # 12 Volt Handle Sub-Assy- Lower 2089-12V Battery for Weedtrimmer 2101 Battery Cover 2105 Bolt NB253 NB170 Nut Nylock NB181 Not Shown...
  • Page 15 2101 2102 Notes...
  • Page 16 MANUAL All trimmer parts listed herein may be ordered directly from Swisher Mower & Machine Co. Inc. or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the MODEL NO.
