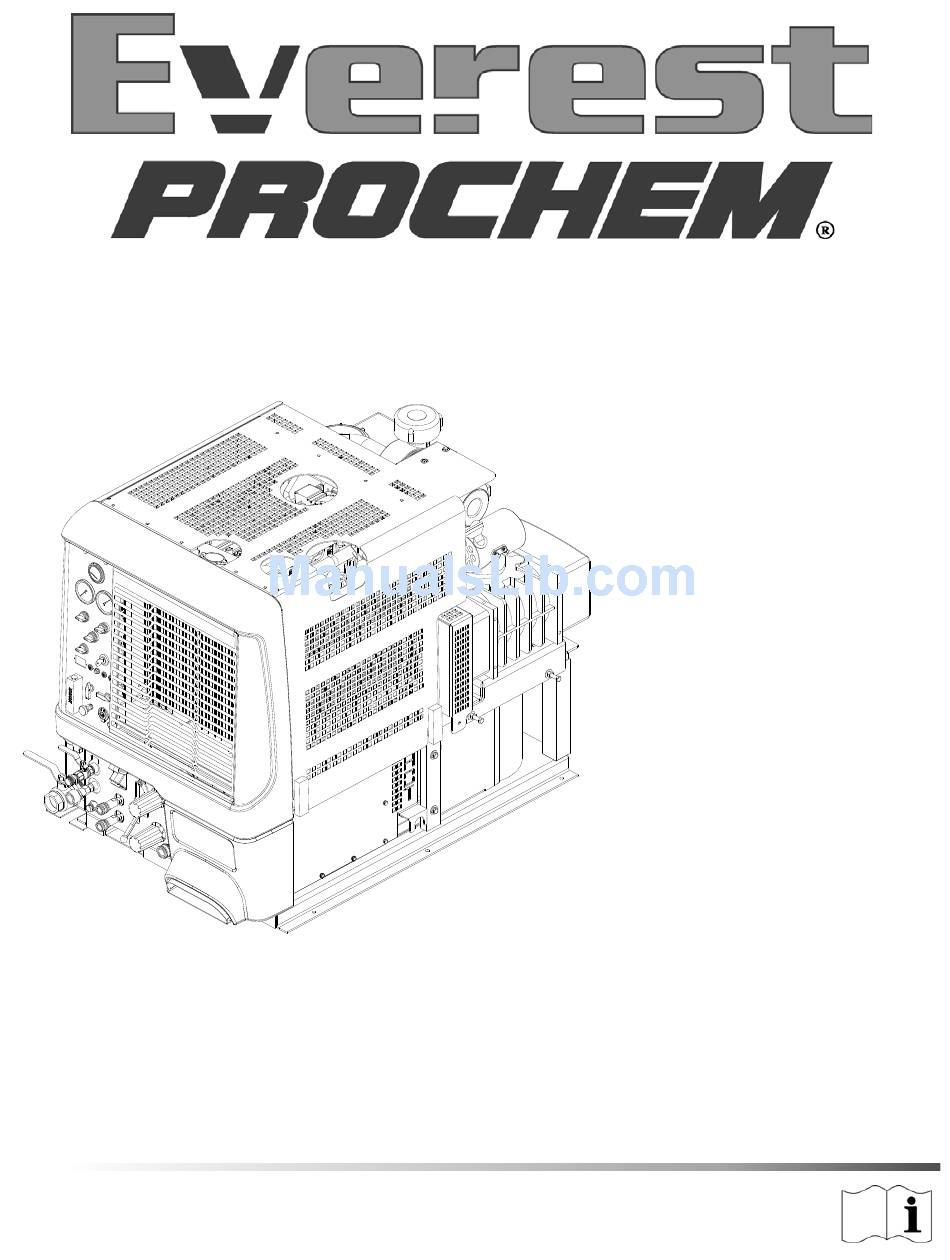

Operating instructions (ENG) MODELS: EVEREST 650 HIGH PRESSURE 1.001-145.0 EVEREST 650 LOW PRESSURE 1.001-146.0 EVEREST 408 HIGH PRESSURE 1.001-151.0 EVEREST 408 LOW PRESSURE 1.001-152.0 Prior to Serial Number (Ref No. 1) See Serial Number page or call manufacturer. Read these instructions before using the machine.
THIS UNIT MUST BE INSTALLED BY THE DEALER FROM WHOM YOU PURCHASED IT IN ACCORDANCE WITH THE PRESCRIBED INSTALLATION PROCEDURES. Information in this document is subject to change without notice and does not represent a commitment on the part of PROCHEM. 86352170 EVEREST...
Receiving Your Unit Acceptance Of Shipment Equipment List: Every part of your cleaning unit was carefully checked, 1. Console. tested, and inspected before it left our manufacturing 2. Waste tank. plant. Upon receiving the unit, make the following acceptance check: 3.
How To Use This Manual This manual contains the following sections: • How To Use This Manual The INSTALLATION section contains information on how to properly install the unit in your vehicle. • Safety • Installation The OPERATIONS section is to familiarize the operator •...
Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. These symbols mean WARNING or CAUTION. Failure to follow warnings and cautions could result in fatality, personal injury to yourself and/or others, or property damage.
Page 9
Safety Before disconnecting the negative (-) ground cable, make sure all switches are OFF. If ON, a spark will occur at the ground cable terminal which could cause an explosion if hydrogen gas or gasoline vapors are present. When disconnecting the battery, ALWAYS disconnect the negative (-) terminal FIRST. DO NOT smoke around the unit.
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Prochem approved replacement parts. 86352170 EVEREST...
Safety Safety Labels The following WARNING LABELS are found on your cleaning unit. These labels point out important Warnings and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality, personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove these labels.
Installation Dealer Responsibility 4. We do not recommend using flooring materials that absorb water. This could result in rust and Your distributor from whom you purchased this mobile corrosion of the vehicle floor. cleaning unit is responsible for correct installation of 5.
Installation Lifting Unit Onto Vehicle Bolting Down Unit And Waste Tank Since the console weighs approximately 1150 lbs., we When positioning waste tank with respect to console, recommend using a forklift to lift unit onto vehicle. hook up the vacuum hose from blower to waste tank. Position forks under unit from front and make CERTAIN This will ensure that waste tank is positioned correctly.
Installation Waste Tank To Console Connection Fuel Pump Assembly Installation NOTE: Before connecting any hoses to the waste tank, make certain the hose clamps are on each hose. Before drilling the fuel line holes in the vehicle floor, make certain that when drilling you will not do 1.
Installation Van Bulkhead Installation 1. Select a location on the vehicle floor to drill the hole for the bulkhead adapter. This location should be situated in a position that eliminates the possibility of fuel line contact by either the operator(s) or accessories during the working hours or maintenance periods.
Installation Fuel Supply & Return Line Installation (Underneath Van) 1. Spray the inside of the supplied 90 degree plastic barbed fitting with water displacing lubricant. Push plastic fitting onto the return tube on filler neck adapter tube until fitting securely snaps into place. 2.
Installation Battery Connection Dangerous Acid, Explosive Gases! Batteries contain sulfuric acid. To prevent acid burns, avoid contact with skin, eyes, and clothing. Batteries produce explosive hydrogen gas while being charged. To prevent a fire or explosion, charge batteries only in well-ventilated areas. Keep sparks, open flames, and other sources of ignition away from the battery at all times.
Operations Water Requirements If you are operating this unit in an area where the unit will be using water in which the hardness exceeds Hard water deposits will adversely affect the plumbing 3-1/2 grains, we highly recommend a suitable water and heat exchange systems on this unit.
This unit is not compatible with E-85 optimum results with this unit, we recommend using the fuel. PROCHEM line of chemicals. For information on using the cleaning compounds, refer to the PROCHEM Engine Oil Requirements chemical manual.
When referring to an engine for assistance from your labels are located on the valve cover of the engine near dealer, Prochem, or ZPP please identify your engine by the oil fill cap, and on the side of the catalytic converter.
Operations Trouble Codes A feature of the ZPP 416 ECM is that DTC's (Diagnostic Trouble Codes) can be displayed to a technician to indicate what historic faults are present without requiring the use of a personal computer. The DTC's can be flashed over the MIL output while the RS232 serial receive input (PC RX) is grounded.
Page 24
Operations DTC/ Turns on MIL Flash Fault Description Pcode MIL? Code P0223 Throttle Position Signal 2 high voltage 520251 P0261 Injector 1 Low/Open P0262 Injector 1 High/Short P0264 Injector 2 Low/Open P0265 Injector 2 High/Short P0267 Injector 3 Low/Open P0268 Injector 3 High/Short P0270 Injector 4 Low/Open...
Page 25
Operations DTC/ Turns on MIL Flash Fault Description Pcode MIL? Code P1155 Closed-loop gasoline bank 1 A/F is too lean 520204 P1156 Closed-loop gasoline bank 1 A/F is too rich 520204 P1551 Aux Digital Input 1 High (Float Switch Voltage High) 1551 AUX DIGITAL INPUT 1 low voltage-force idle-waste P1552...
Operations Lower Control Panel 8. High Pressure Solution Outlet (Option) The high-pressure solution outlet is the connecting 1. Lubrication Cup point for the high-pressure washing hose. This The lubrication cup allows lubricant spray to reach outlet is a quick disconnect that allows the the vacuum blower.
Operations Upper Control Panel 86352170 EVEREST...
Page 29
Operations Upper Control Panel 8. Circuit Breakers These serve to protect the circuits from electrical 1. Service Engine Soon (Amber) spike and over loads and protects wires from This light, when flashing, signals a problem with damage and fire. the unit. When this occurs, troubleshooting is 9.
Operations 14. Hour Meter 17. Auxiliary Water Tank Pump Switch The hour meter records the number of hours the unit The Auxiliary Water Tank Pump Switch is used to has run. This serves as a time recorder for servicing actuate an optional fresh water demand pump the machine.
Operations Water Pumping And Heat Transfer System The third stage of plumbing and heat exchange takes place in the 2nd and 3rd heater cores located in the Cold water enters the console through the water inlet. heat exchanger box. This is the hottest point of the When the water box is full the valve will automatically gases coming from the vac pump and the engine shut off.
Operations Chemical Injection System The chemicals flow to the chemical selector valve, which can turn off the chemical flow or when set to The chemical injection system is unique in that it "Prime" sends it into the waste tank to purge air from utilizes the pressure spikes generated by the high- the system, or when "CHEM"...
Operations Vacuum System The vacuum pump compresses and heats the incoming air. The hot discharged air is forced down stream into a The engine turning a vacuum pump that generates silencer for noise abatement. After exiting the silencer, vacuum. The air is channeled in one side of the this hot air is mixed with hot gases from the engine vacuum pump, compressed and discharged on the exhaust.
Operations Pre-run Inspection / Setup High Pressure Solution Hose NOTE: Operation of this unit is simple. However, only Before starting the unit, connect the high-pressure trained personnel should proceed. solution hose to the outlet connection at the front of the unit.
The unit will automatically shut-down when the waste tank is full. This will prevent water being drawn into the vacuum pump. If shut-down occurs, empty the waste tank before proceeding. If shutdown occurs due to foam created by chemicals used, add Prochem defoamer. 86352170 EVEREST...
Check with your chemical vendor for proper safety requirements. Prochem also recommends the use of Prochem high-pressure spray wands. Prochem offers a dual barrel wand. Contact your Prochem dealer for recommendations in your particular application.
Operations High Pressure Shutdown & Return To Low Freezing Protection Pressure System 1. Turn off solution pump and release pressure. 2. Bleed off excessive pressure build-up by operating If the unit is exposed to freezing weather the water pressure washer gun for 5 seconds. in the unit may freeze, causing SERIOUS DAMAGE to the unit.
Operations Winterizing Your Unit Allow the unit to run for approximately 3 minutes with the winterizing loop hose attached. 1. Shut off the water supply. Disconnect the water 9. Prime the chemical system with 50/50 anti-freeze/ inlet hose from the front of your console. water mix.
Operations Removing Anti-freeze From The Unit 5. Submerge the chemical inlet tube in water. Turn the chemical valve to the PRIME position until clear 1. Connect the water inlet hose to the water inlet water is observed in the Flow meter. connection on the console.
Maintenance Service Schedule Engine Daily Check engine oil level. *** Fill to proper level Engine Daily Check coolant level in overflow bottle Spray water displacing lubricant in lubrication cup at Daily Vacuum Pump front of console for 5 sec. Solution Pump Daily Check oil level.
Page 43
Maintenance Service Schedule Vacuum 50 hrs Retighten belts Vacuum 100 hrs Check belt tension Heat Exchanger Box 500 hrs Inspect & clean door guides (as needed) Solution Pump 500 hrs Change oil** Pulley Set Screws & Hub Cap Screws 500 hrs Check for proper torque values.
Maintenance Key Checkpoints Heat Exchanger System Note: Initiation of a planned preventative maintenance The heat exchange system in your unit transfers program will assure that your unit has optimum perfor- energy between the heat of the engine exhaust and the mance, a long operating life, and a minimal amount of blower discharge air, to the solution supply system.
Maintenance Engine 3. Check the air cleaner element every 250 hours. Replace the element annually. 4. Check the coolant level in the radiator overflow container daily. If no coolant is seen, remove the DO NOT service this unit while it is running. The cap and add coolant.
5. Vacuum pump lubrication is vital to performance of NOTE: AEON PD-XD is the oil that PROCHEM puts the pump. Failure to follow the maintenance in the vacuum pump at the factory. Topping off or...
Maintenance Vacuum Pump Drive Belts Solution Pump To tighten the vacuum pump belts: Refer to the Solution Pump Operation and Service Manual for specific instructions. 1. Loosen the four bolts that hold the adjusting plate to the frame and the 2 bolts at the back of the belt 1.
Maintenance Solution Pump Drive Belt To tighten the solution pump belt: 1. Loosen the bolts which hold the solution pump mount to base. 2. Adjust the position of the belt tension adjusting bolt until the proper belt tension is achieved. (1/2" deflection in the center of the belt, halfway between the pulleys).
Maintenance Check Valve (Outlet) Optional Waste Pump-Out Inspect the check valve when rebuilding the chemical At the end of each work day, make certain that you pump or as needed. Remove and disassemble the remove any debris or sediment which may be inside the check valve.
Maintenance General Service Adjustments Chemical Pump The only repairs that the chemical pump may require Check Valve (Solution Outlet) are the replacement of the diaphragm, plastic disk or check valves. To replace the diaphragm and plastic Inspect the check valve whenever doing service on the disk, disconnect hoses and unscrew the cover from the chemical pump or if flow problems occur in the body.
Maintenance Packing Nut Adjustment For Chemical High Pressure Regulator (Optional) Valves To adjust: Examine the packing nut on all chemical valves for Set the high-pressure regulator to desired pressure, up proper tension every 200 hours. When turning the to 3000 PSI. Adjust as necessary to meet your knob, there should be a small amount of resistance.
Maintenance Troubleshooting Problem Cause Solution Turn the water supply on or up. Check for Water supply is turned off or the float valve kinks in the water supply hose. Examine the is stuck or improperly adjusted. float valve and adjust or replace. Examine the water inlet strainer inside the water box.
Page 53
Maintenance Troubleshooting Problem Cause Solution Waste tank filter or pre-filter basket is Clean or replace filter. Clean strainer basket. plugged. Examine the tubing between the vacuum relief Vacuum gauge is giving an improper valve and the vacuum gauge and remove any reading.
Page 54
Maintenance Troubleshooting Problem Cause Solution Solution pump has not been activated Turn solution pump switch to on. Check the solution pump circuit breaker on the Solution pump circuit breaker has been control panel. Press the circuit breaker reset tripped button. Examine switch, electrical connections, and Solution pump does Defective electrical connection in the...
Page 55
Maintenance Troubleshooting Problem Cause Solution Descale unit, repair or replace Flow restriction caused by hard water damaged plumbing components as scaling. Excessive heating necessary. Install water softener. Not enough water flow. Check jet size of tool. Heat exchanger leaks. NOTE: The exhaust heat Inspect heat exchangers for leaks.
Page 65
Control Panel SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86180380 ELL, 1/4 FP X 1/4 POLY BR 86273790 SCR, 6-32 X 3/4 PPHMS 86270920 NUT, 6-32 HEX NYLOCK SS 86278930 WASHER, #8 LOCK EXT. STAR PLT 86050670 PANEL, CONTROL 86179460 DECAL, CONTROL PANEL 86186930 LIGHT, WARNING, IDEC AP2M...
Page 69
Engine SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86293490 ENG, HYUNDAI, 1.6L W/ALUM PAN 86279500 WASHER, M10 SPLIT LOCK PLTD 86277790 SCR, M10 X 1.25 X 25 MM HXHD DIN933 86277800 SCR, M12 X 1.25 X 25 MM HXHD 86259440 WASHER, M12 SPRING LOCK 86177370 CLMP,FUEL LINE 5/16x1/4B...
Page 85
Solution Pump - Parts SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86014860 KIT, PLUNGER MAINTENANCE, 20MM 86186220 KIT, SEALS CRANKCASE 86014870 KIT, PLUNGER SEALS, 20MM GP 86186250 KIT, CHK VALVE, GEN PMP, 6PC 86189320 O-RING, CAP, GEN PMP 86014880 PLUNGER, 20MM GP 86014890 O-RING, PLUNGER SEAL GP 86014900...
Water Box - Low Pressure OVERFLOW TO WATER INLET TO WASTE TO COPPER TANK HEAT EXCHANGER TO WARM TO BYPASS WATER TO SOLUTION ORIFICE OUTLET PUMP 86352170 EVEREST...
Page 103
Water Box - Low Pressure SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86057180 STRAP, WTR BOX HOLDDOWN 86176400 CAP, WATER BOX 86293150 MLDG, WATER BOX 86190480 PLUG, 1/2 SOCHD BR 86180250 ELL, 1/2 BR 86181360 FTTG, BRB 1/2P X 5/8H BR 86177260 CLMP, HOS #10 9/16 MIN 86175860...
Water Box - High Pressure OVERFLOW TO WATER INLET TO HIGH TO WASTE PRESSURE TANK REGULATOR TO COPPER TO WARM HEAT WATER TO SOLUTION EXCHANGER OUTLET PUMP TO BYPASS ORIFICE 86352170 EVEREST...
Page 105
Water Box - High Pressure SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86057180 STRAP, WTR BOX HOLDDOWN 86176400 CAP, WATER BOX 86293150 MLDG, WATER BOX 86180250 ELL, 1/2 BR 86181360 FTTG, BRB 1/2P X 5/8H BR 86177260 CLMP, HOS #10 9/16 MIN 86180170 ELL, STREET 1/2 BR MACH 86175860...
Waste Tank SERIAL NO. PART NO. DESCRIPTION NOTES FROM 98411770 KIT, WASTE TANK, EV 100G, PC COMPLETE 86288660 LID, WASTE TANK 86182780 GSKT, WST TNK 86177220 CLMP, HOS#32 1.5625/2.5, SST 86049060 HOSE, INT VAC 2.0 X 56 BLK 86350780 ASSY, WASTE TANK LID, EV100G 86193540 STRNT, WST TNK, RECT, 1/5”...
Page 119
Chemical Jug Floor Mount SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86298250 HOLDER, 5 GAL JUG 86273190 SCR, 1/4-20 X 1-1/2 HXHD 86270770 NUT, 1/4-20 HEX 86270330 FLATWASHER, 1/4 86185720 JUG,5 GAL, SINGLE HNDL, WHITE 86010780 WASHER 1/4 SPLIT LOCK PLTD 86352170 EVEREST...
Page 123
Wiring Diagram SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86297880 CIRCUIT BOARD, SERVICE ENG LT 86266060 TERM, 18-16G BUTT SPLICE 86176280 CABLE, BATTERY, 81" BLACK 86176270 CABLE, BATTERY, 81" RED 86011650 SLEEVE, CABLE 36" BLUE 86265870 TERM, 18G #10 RING 86265910 TERM, 14G #10 RING 86183060...
Wand - Titanium Six Jet - Optional 86352170 EVEREST...
Page 133
Wand - Titanium Six Jet - Optional SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86288350 WD, TM, 6 JET, TITANIUM (8001) PC COMPLETE 86273310 SCR, CAP 1/4-20 X 1 1/4 SOC 86192030 SCR, CAP 10-32 X 1 1/4 SOCH 86006680 SCR, 10-32 X 1/4 PPHMS SS 86270990 NUT, 10-32 HEX NYLOCK SS...
Water Tank Dual with Demand Pump - Optional TO DEMAND PUMP OVERALL DIMENSION: 32-1/2" TALL 62-5/8" WIDE 15-1/2" DEEP 86352170 EVEREST...
Page 147
Water Tank Dual with Demand Pump - Optional SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86041730 TANK, DUAL SADDLE W/DMD PUMP COMPLETE 86041710 SINGLE SADDLE TANK W/DMND PMP COMPLETE 86048310 HOLD DOWN, SADDLE TANK GRAY 86279510 WASHER, 3/8 FLAT 86010790 WASHER 3/8 SPLIT LOCK 86277830 SCR, 3/8-16 X 2' HXHD...
Auxiliary Water Tank with Pump-Optional 4X Ø.406 2X 18.7 MOUNTING DETAIL 2X 16.5 28.8 WIDE Vehicle Floor 58.8 LENGTH 30.0 TALL 86352170 EVEREST...
Page 151
Auxiliary Water Tank with Pump-Optional SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86041580 ASSY, AUX WTR TNK W/PMP COMPLETE 86277830 SCR, 3/8-16 X 2” HXHD 86277850 SCR, 10-32 X 1” SOCHD SST 86270330 FLATWASHER, 1/4 86177310 CLMP, HOSE #16 1-1/2 MIN 1-3/4 86280550 HOSE, 5/8 ID BLU X 55”...
E Z - Charge Water Softener - Tank & Tray - Optional 86352170 EVEREST...
Page 159
E Z - Charge Water Softener - Tank & Tray - Optional SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86041740 WATER SOFTENER 30" PC COMPLETE 86179710 DCS, 3/8F X 3/8FP 86188220 NIP, 3/8 X CL SST 86175880 BUSH, 3/4 X 3/8 ALUM 86173650 ADPT, TNK#50-0271 86179650...
E Z - Charge Water Softener - Brine System - Optional PART OF ITEM 3 86352170 EVEREST...
Page 163
E Z - Charge Water Softener - Brine System - Optional SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86195930 FUNNEL, BIG BLU 86180470 ELL, 1/4P X 3/8 POLY BR 86177620 CONN, 1/4P BLKHD LNG BR 86180480 ELL, BRB 1/4P X 1/4H BR 86176990 CLAMP, HOSE #4 SST 86280630...
Serial Numbers REF. MODEL: SERIAL # 10011450100261, 10011460100065, 10011510000025, 10011520000050 86352170 EVEREST...
Page 167
1 Year 1 Year The warranty starts on the purchase/service date by the original end user from an authorized Prochem Kärcher Group dealer, subject to proof of purchase. The warranty is non-transferable and is intended for the original purchaser only.
Page 168
Any repairs resulting from poor initial service work or improper diagnosis. Tune-up parts such as plugs, plug wires and condensers. Any design alterations performed by an organization not authorized or specified by Prochem Kärcher Group. High-pressure washing. Electrical components exposed to moisture.
