Summary of Contents for Sennheiser ADN-W C1

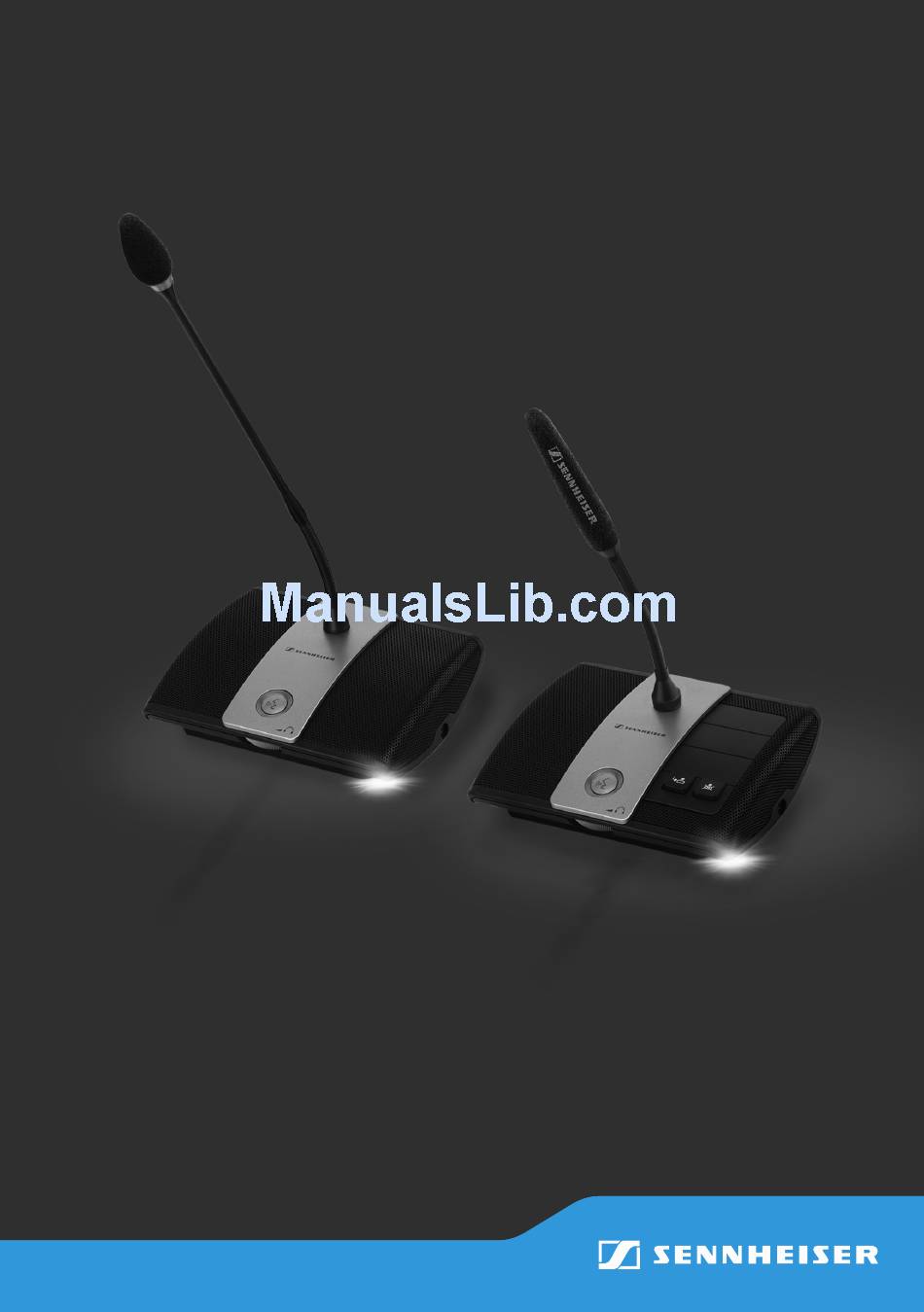

  • Page 1 ADN-W C1 ADN-W D1 ADN C1 ADN D1 Wireless Units Wired Units Instruction manual...

  • Page 3: Table Of Contents

    The ADN D1/C1 and ADN-W D1/C1 conference units The ADN D1 wired delegate unit and the ADN C1 wired chairperson unit as well as the ADN-W D1 wireless delegate unit and the ADN-W C1 wireless chairperson unit are part of the Sennheiser ADN conference system.

  • Page 4: Package Contents

    ADN CU1 central unit by means of system cables (detailed information can be found in the ADN system manual). ADN wireless components Console of the wireless 1 console of the ADN-W D1 wireless delegate unit or ADN-W C1 conference unit wireless chairperson unit (without...

  • Page 5: Components Required For Operation

    SDC CBL RJ45-3, 3 m 009843 conference units SDC CBL RJ45-5, 5 m 009844 SDC CBL RJ45-10, 10 m 009845 SDC CBL RJ45-20, 20 m 009846 SDC CBL RJ45-50, 50 m 009847 ADN C1/ADN D1 | ADN-W C1/ADN-W D1...
  • Page 6 Gooseneck microphones wireless to make contributions ADN-W MIC 36-29 504751 confer- ADN-W MIC 15-50 504752 ence units ADN-W MIC 36-50 504753 Additional accessories for the ADN conference system can be found at www.sennheiser.com. ADN C1/ADN D1 | ADN-W C1/ADN-W D1...

  • Page 7: Product Overview Adn D1/C1

    Sound inlet basket with glued windshield Microphone key Signal light ring Microphone LED Headphone socket Loudspeaker < Priority key socket Next key socket Headphone volume control for Type plate (see bottom) headphone socket ADN C1/ADN D1 | ADN-W C1/ADN-W D1...

  • Page 8: Product Overview Adn-W D1/C1

    Sliding contacts Headphone socket Microphone connection Priority key Guide rails for ADN-W BA battery pack Next key Connection for ADN-W BA battery pack Headphone volume control for Type plate headphone socket Microphone key ADN C1/ADN D1 | ADN-W C1/ADN-W D1...

  • Page 9: Preparing The Adn-W D1/C1 Wireless Conference Units For Operation

    ADN-W BA battery pack supplies power to the wireless conference unit. The conference system automatically recognizes if the connected wireless conference unit is a chairperson unit (ADN-W C1) or a delegate unit (ADN-W D1) and initializes it automatically. Information on how...
  • Page 10 ADN-W AM antenna module is established, the microphone LED and the signal light ring go off. The RF status indicator on the ADN-W BA battery pack indicates the transmission quality: ADN C1/ADN D1 | ADN-W C1/ADN-W D1...
  • Page 11 The manual switch-off function via the microphone key can be deactivated (detailed information can be found in the ADN system manual). ADN C1/ADN D1 | ADN-W C1/ADN-W D1...

  • Page 12: Operating A Delegate Unit

    The loudspeaker is muted. Depending on the conference mode and the speaker limit set, the microphone of the previous speaker will be deactivated. 10 | ADN C1/ADN D1 | ADN-W C1/ADN-W D1...
  • Page 13 At switch-off, the headphone volume is reset to a medium level. Vol - The volume of the conference units’ loudspeakers can be set via Vol + the central unit (detailed information can be found in the ADN system manual). ADN C1/ADN D1 | ADN-W C1/ADN-W D1 | 11...

  • Page 14: Operating A Chairperson Unit

    Operating a chairperson unit Operating a chairperson unit The operation of the ADN C1 wired conference unit and the ADN-W C1 wireless conference unit is identical. Beside the chairperson functions, chairperson units offer the same functions as delegate units. A chairperson unit allows you to take the floor at any time without having to “apply”...

  • Page 15: Cleaning And Maintaining The Conference Units

    Cleaning and maintaining the conference units Remove the ADN-W BA battery pack from the ADN-W C1 or ADN-W D1 wireless conference units (see page 8). Only use a dry and soft cloth to clean the products. Clean the grids of the conference units with a soft brush or paintbrush in order to avoid dust deposits.

  • Page 16: Specifications

    190 Hz to 14.5 kHz In compliance with Europe: EN 55103-1/-2 Safety EN 60065 ADN-W D1 and ADN-W C1 wireless conference units Console RF frequency ranges 2.4 GHz, 5.1 to 5.9 GHz RF output power max. 100 mW Audio quality...
  • Page 17 Japanese Radio Law ( 電波法 ) and the Japanese Telecommunications Business Law ( 電気通信事 業法 )This device should not be modified (other- wise the granted designation number will become invalid) ADN-W D1: 3100-15-7356 Brazil ADN-W C1: 3108-15-7356 ADN C1/ADN D1 | ADN-W C1/ADN-W D1 | 15...
  • Page 18 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by Sennheiser electronic Corp. could void the user’s authority to operate the equipment.
  • Page 20 Sennheiser electronic GmbH & Co. K Sennheiser electronic GmbH & Co. KG G Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 08/16, 549160/A03...
