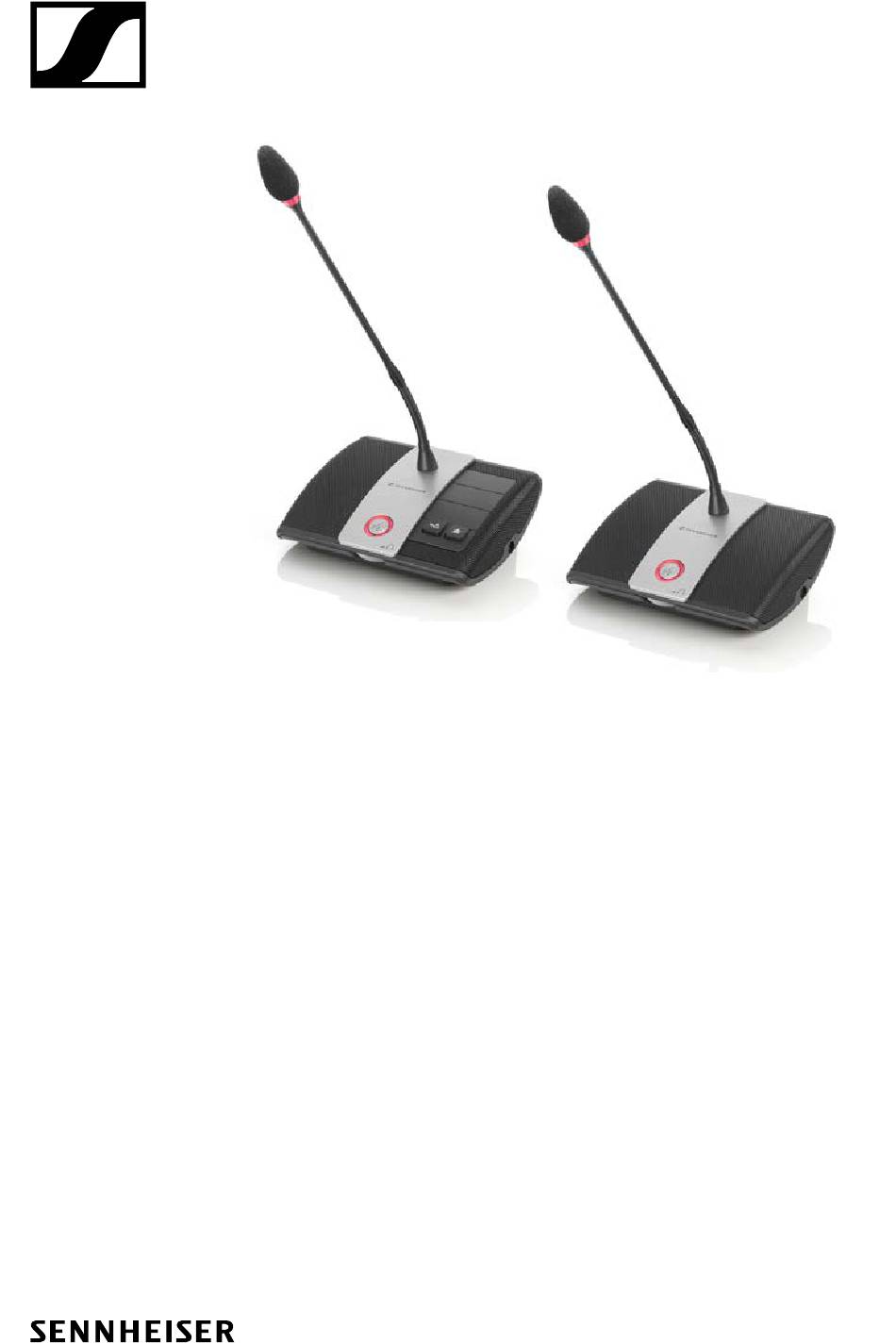

- Page 1 ADN-W C1 / D1 Wireless Units ADN C1 / D1 Wired Units Instruction manual Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com Publ. 05/19, 583944/A01...
-
Page 2: For Your Safety
The ADN D1 wired delegate unit and the ADN C1 wired chairperson unit as well as the ADN-W D1 wireless delegate unit and the ADN-W C1 wireless chairper- son unit are part of the Sennheiser ADN conference system. -
Page 3: Package Contents
ADN CU1 central unit by means of system cables (detailed informa- tion can be found in the ADN system manual). ADN wireless components Console of the wireless conference unit Console of the ADN-W D1 wireless delegate unit or ADN-W C1 wire- less chairperson unit (without battery pack and gooseneck micro-... -
Page 4: Components Required For Operation
Components required for operation Components required for operation Wired and wireless components can be combined arbitrarily. Central unit Number Description Cat. No. Function ADN CU1-EU central unit, 505553 Controls the conference EU version (wired and wireless com- ponents) and supplies ADN CU1-UK central unit, 505554 power to a max. -
Page 5: Wireless Components
ADN-W AM-US antenna 505715 module US-version Wireless conference units Number Description Cat. No. Function max. 150 ADN-W D1 wireless dele- 504748 Allows to make contribu- gate unit tions to the conference 1 - 10 ADN-W C1 wireless chair- 504745 Allows to manage the... - Page 6 Product overview ADN D1/C1 Product overview ADN D1/C1 ADN C1 ADN D1 Sound inlet basket with glued Microphone key windshield Signal light ring Microphone LED Headphone socket Loudspeaker 10 IN socket Priority key socket Next-key Headphone volume control for Type plate (see bottom) headphone socket...

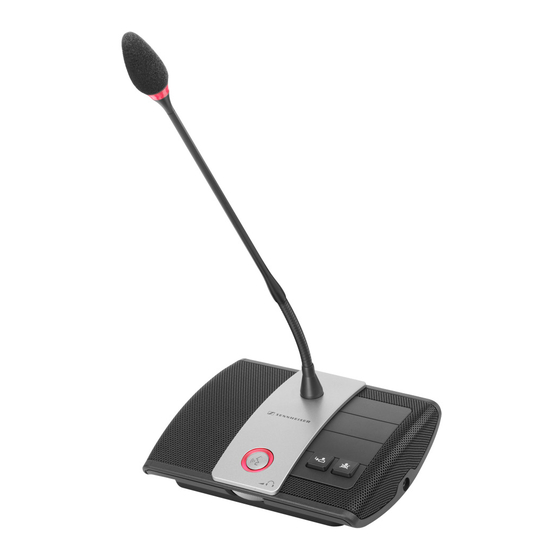

- Page 7 Product overview ADN-W D1/C1 Product overview ADN-W D1/C1 ADN-W D1 ADN-W C1 Sound inlet basket with glued wind- Microphone LED shield ADN-W MIC 15: glued windshield ADN-W MIC 36: plug-on windshield Signal light ring Loudspeaker Headphone socket Fastening thread Sliding contacts...
-
Page 8: Preparing The Adn-W D1/C1 Wireless Con- Ference Units For Operation
The conference system automatically recognizes if the connected wireless conference unit is a chairperson unit (ADN-W C1) or a delegate unit (ADN-W D1) and initializes it automatically. Information on how to configure the wireless conference components can be found in the ADN system manual or in the instruction manuals of the ADN CU1 central unit and the ADN-W AM antenna module. -
Page 9: Inserting/Removing The Battery Pack
Preparing the ADN-W D1/C1 wireless conference units for operation Replace the defective microphone by a new one. If you screw the microphone to or unscrew it from the wireless conference unit during operation (wireless conference unit is switched on), proper func- tioning of the conference unit cannot be guaranteed, i.e. - Page 10 Preparing the ADN-W D1/C1 wireless conference units for operation ADN-W BA Status-LED RF status indictor Color Meaning good transmission quality blue, flashing transmission quality is slowly temporarily reduced blue, flashing transmission quality is rapidly permanently reduced If no connection to an antenna module can be established within 5 minutes, the wireless conference unit automatically switches off.
-
Page 11: Operating A Delegate Unit
Operating a delegate unit Operating a delegate unit The operation of the ADN D1 wired conference unit and the ADN-W D1 wireless conference unit is identical. Taking the floor/Making a request to speak If the conference mode is set to “Direct... -
Page 12: Connecting Headphones
Operating a delegate unit Press the microphone key once more. The microphone LED and the signal light ring go off. If the conference mode is set to “Push to talk”: Release the pressed microphone key 7. The microphone LED and the signal light ring go off. -
Page 13: Operating A Chairperson Unit
Operating a chairperson unit Operating a chairperson unit The operation of the ADN C1 wired conference unit and the ADN-W C1 wireless conference unit is identical. Beside the chairperson functions, chairperson units offer the same functions as delegate units. A chairperson unit allows you to take the floor at any time without having to “apply”... - Page 14 Operating a chairperson unit Setting Function of the priority key „On“ Pressing the priority key deactivates all delegate units. All requests to speak are deleted. „Off“ Pressing the priority key deactivates all currently active delegate units. All requests to speak are retained. Briefly press the priority key 4.
-
Page 15: Cleaning And Maintaining The Conference Units
Cleaning and maintaining the conference units Cleaning and maintaining the conference units Remove the ADN-W BA battery pack from the ADN-W C1 or ADN-W D1 wireless conference units (see „Inserting/removing the battery pack“). Only use a dry and soft cloth to clean the products. - Page 16 Specifications ADN-W D1 and ADN-W C1 wireless conference units Voltage for optional external 12 V$ via ADN-W BA battery pack power supply Charging time of battery typ. 4 hours pack Headphone socket 3.5 mm stereo jack socket Output level at headphone 50 mW/16 Ω...
