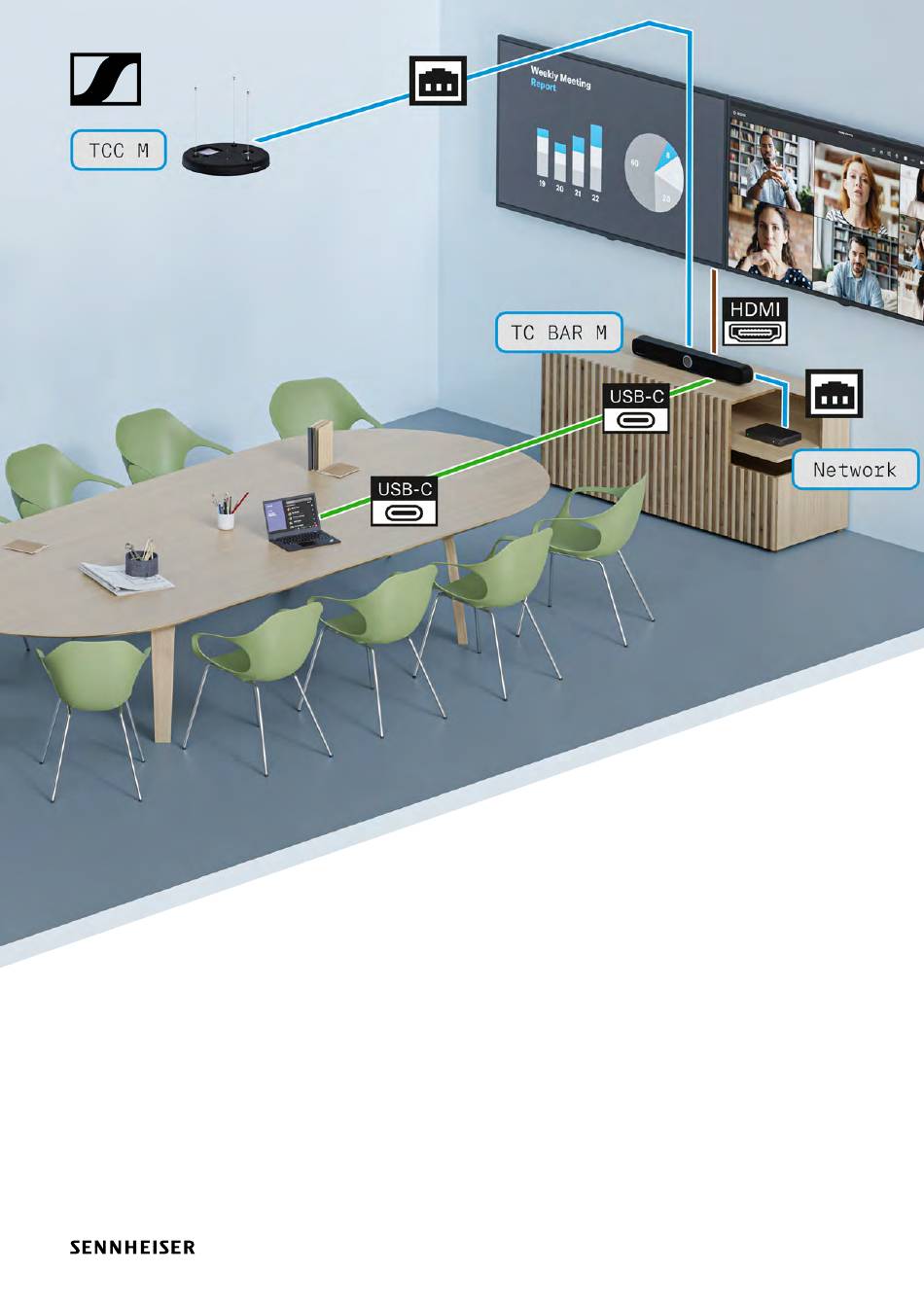

- Page 1 TeamConnect Bar Network Guide for System Integrators Sennheiser electronic SE & Co. KG Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com v1.0...
-
Page 2: Table Of Contents
Selecting the Network Switch ................16 Managing Energy Efficiency Ethernet (EEE) ............16 Configuring Dante Network .................. 16 7. Ports and Protocols ......................17 7.1. Sennheiser Control Cockpit Ports ................17 Port Requirements ....................17 7.2. Dante Ports ........................18 External Dante Ports ....................18 Internal Dante Ports .................... -
Page 3: Introduction
This document is intended for system integrators and room planners and serves as a planning guide for the network integration of the TeamConnect Bar (TC Bar) in a room. The network guide contains recommendations for the optimal operation of the TC Bar, which is op- erated in particular with extended or routed Sennheiser devices in a networked environment (e.g. -
Page 4: Cabling
15 W via the LAN cable (IEEE 802.3af Type 1, PoE). Detailed information on activating Power over Ethernet in the Sennheiser Control Cockpit software can be found in chapter „Activating Power over Ethernet (for PSE devices only (e.g. TC Bar M))“. -
Page 5: Network Modes
The TC Bar can be integrated into any existing or new network. Different network modes are avail- able, which can be configured for the TC Bar in the Sennheiser Control Cockpit software. The following network settings are available for the TC Bar: •... -
Page 6: Device-Dependent Network Set-Up
Network Guide TeamConnect Bar Device-Dependent Network Set-Up Depending on the model, the TC Bar offers various options for integrating the device into a network. The following is an overview for quick orientation of outgoing use cases and for setting up preferred network configurations. -
Page 7: Single Domain Mode
TeamConnect Bar 3.4. Single Domain Mode This mode is usually used if you want to use both the controller (Sennheiser or third-party provider) and Dante on the same physical port with only one available IP in the same network. To set up both configurations, you need the Sennheiser Control Cockpit for the control network and the Dante Controller for other routed Sennheiser devices. - Page 8 Make sure you always connect the TC Bar M to two different networks that do not run via a common switch. • The other port is used to connect routed Sennheiser devices (e.g. TCC M) • Any extensions connected can be managed both via the Dante Controller and via the Control Cockpit, as the Bar M forwards the flows using the integrated switch.
-
Page 9: Dual Domain Mode
Network Guide TeamConnect Bar 3.5. Dual Domain Mode This mode is generally used if you receive a merged flow from two separate networks via a single network line and you want to resolve this merged flow back into two different IP and MAC addresses. - Page 10 Network Guide TeamConnect Bar TC Bar M • Both Ethernet ports can be used to address the TC Bar both via the Control Cockpit and via the Dante Controller. In this case, one IP is available for Dante and one IP for Cockpit.
-
Page 11: Split Mode
The Split Mode is available for the TC Bar M only. In this mode, the Sennheiser Control Cockpit and the Dante Controller are located in different net- works and both have different IP and MAC addresses. All data packages are untagged. -
Page 12: Network Availability And Extensions
Make sure you always connect the TC Bar M to two different networks that do not run via a common switch. Example: • Ethernet I: Sennheiser Control Cockpit network • Ethernet II: Dante® network 2. Both ends of an Ethernet cable are plugged into the same router. -
Page 13: Dante Features For Tc Bar S And M
Network Guide TeamConnect Bar Dante Features for TC Bar S and M With the built-in Dante Embedded Platform (DEP), the TC Bar integrates media and control of your entire AV system over a single IP network. The Dante functionality is deactivated by default and must be activated in the Control Cockpit („Activating Dante Protocols“). -
Page 14: Best Practice
Network Guide TeamConnect Bar Best Practice 6.7. Configuring Network Settings (Control Cockpit) Selecting Network Mode First, the network mode must be selected in the Control Cockpit. To select your desired Network Mode: f In the Control Cockpit, navigate to Devices > TC Bar > Network. -
Page 15: Activating Vlan Tagging
Activating 3rd Party Access The TC Bar can be accessed by third-party applications via a media control protocol. To do this, third-party access must be activated in the Sennheiser Control Cockpit and protected using a password. Note: Please refer to the media control protocol for the TC Bar to obtain the complete range of func- tions and list of methods that can be called up. -
Page 16: Designing And Configuring Dante Network
Network Guide TeamConnect Bar 6.8. Designing and Configuring Dante Network Dante AV-over-IP is based on common IT standards, enabling Dante to run alongside data traffic on networks comprised of readily available conventional switches and cabling. For detailed information please refer to the Dante Information for Network Administrators:... -
Page 17: Ports And Protocols
TeamConnect Bar Ports and Protocols 7.1. Sennheiser Control Cockpit Ports In order to use the Control Cockpit software, certain ports must be enabled (especially for the organiza- tion firewall) for communication between software and devices. If necessary, please contact the local administrator to configure the required ports. -
Page 18: Dante Ports
Network Guide TeamConnect Bar 7.2. Dante Ports To set up a Dante network, defined port information is required. The table below shows which ports, URLs and servers are used. For detailed information, please refer directly to the website: https://www.getdante.com/support/faq/which-network-ports-does-dante-use/ External Dante Ports... -
Page 19: Trouble Shooting
3 DeviceReportsError : Update error f The device reports an update error. f Please read the error message and react accordingly / contact the Sennheiser support. 4 NoDeviceReaction: Error after image upload f The device does not react after firmware image upload. - Page 20 Network Guide TeamConnect Bar v1.0 | 20/21...
- Page 21 Network Guide TeamConnect Bar v1.0 | 21/21...
