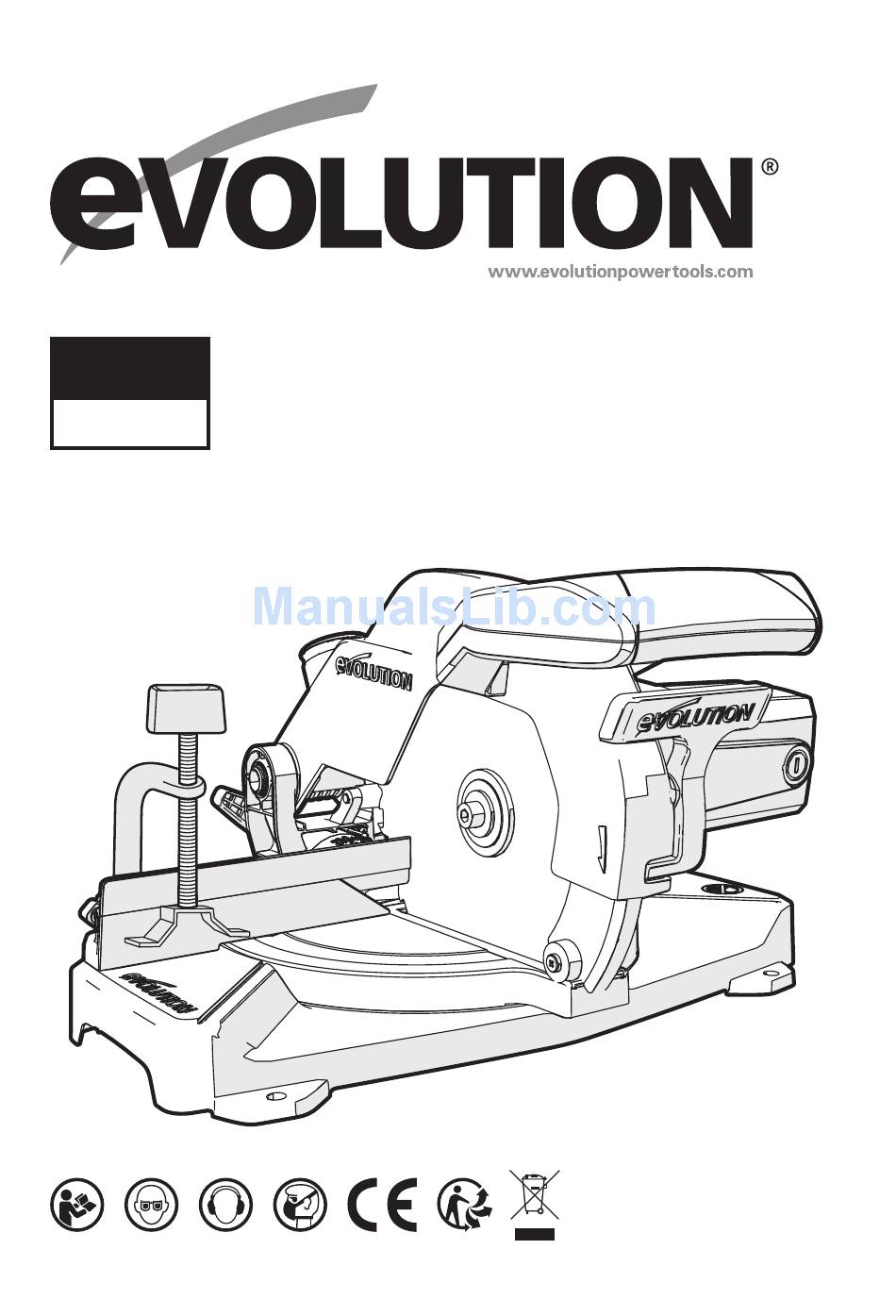

- Page 1 F210 Original Instructions ursprünglichen Anweisungen Instructions d’origine originele handleiding Date Published: 01 / 04 / 2016 Original written in UK English...
-
Page 2: Table Of Contents
Page 10 Installing or Removing a Blade Page 20 Carrying your Mitre Saw Use of Optional Page 21 Getting Started Page 11 Evolution Accessories Unpacking Page 11 Dust Bag Page 21 Serial No. / Batch Code Page 11 Items Supplied... -
Page 3: Introduction
You can also scan the QR code In no event shall Evolution Power Tools be found on the leaflet with a smart phone. liable for loss or damage resulting directly or... -
Page 4: Machine Specifications
www.evolutionpowertools.com MACHINE SPECIFICATIONS MACHINE METRIC IMPERIAL Motor (230-240V ~ 50 Hz) 1200W Motor (110V ~ 50 Hz) 1200W Speed No Load 3750min 3750rpm Weight (Net) 5.8 kg 12.8 lb Dust Port Diameter 35mm 1-3/8 In. Tool Dimensions (H x W x L) (0° / 0°) 10-15⁄64 x 260 x 393 x 381mm 15-15⁄32 x 15 In. -
Page 5: Labels And Symbols
LABELS & SYMBOLS WARNING: Do not operate this machine if CE Certification warning and/or instruction labels are missing or damaged. Contact Evolution Power Tools for replacement labels. EAC Certification Note: All or some of the following symbols may appear in the manual or on the product. -
Page 6: Intended Use Of This Power Tool
ELECTRICAL SAFETY Mitre Saw and has been designed to be used This machine is fitted with the correct moulded with special Evolution blades. Only use plug and mains lead for the designated market. accessories designed for use in this machine... - Page 7 www.evolutionpowertools.com (2.2) (2.4) 1) General Power Tool Safety Warnings 3) General Power Tool Safety Warnings [Work area safety] [Personal Safety]. a) Keep work area clean and well lit. Cluttered a) Stay alert, watch what you are doing or dark areas invite accidents. and use common sense when operating a b) Do not operate power tools in explosive power tool.
-
Page 8: Health Advice
www.evolutionpowertools.com (2.5) (2.6) 4) General Power Tool Safety Warnings 5) General Power Tool Safety Warnings [Power tool use and care]. [Service] a) Do not force the power tool. Use the a) Have your power tool serviced by a qualified correct power tool for your application. The repair person using only identical replacement correct power tool will do the job better and parts. -
Page 9: Mitre Saw Specific Safety
www.evolutionpowertools.com wherever practicable. It is not advisable to (3.5) MITRE SAW SPECIFIC SAFETY wear gloves when operating the mitre saw. The following specific safety instructions for Mitre Saws are based on the requirements of (3.7) SAFE OPERATION EN 61029-2-9:2012+A11. Always ensure that you have selected the BLADE SAFETY correct saw blade for the material being cut. -
Page 10: Perform Cuts Correctly And Safely
www.evolutionpowertools.com fails to operate it shall be repaired or replaced • Lock the Cutting Head in its lowest position. by the manufacturer or his authorised agent. Ensure that the Cutting Head Locking Pin is The saw blade shall only be replaced as completely engaged in its socket. detailed in this Instruction Manual. -
Page 11: Getting Started
In addition to the standard items supplied machine and its accessories should be with this machine the following accessories returned together in their original packaging are also available from the Evolution online to the retailer. Do not throw the packaging shop at www.evolutionpowertools.com or away; keep it safe throughout the guarantee from your local retailer. -

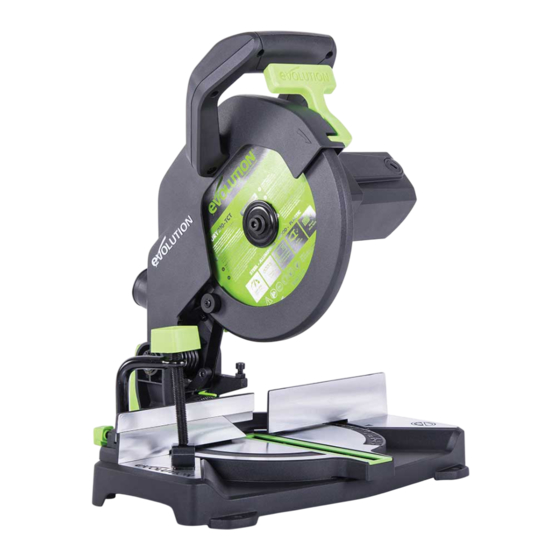

Page 12: Machine Overview
www.evolutionpowertools.com MACHINE OVERVIEW 1. ON/OFF TRIGGER SWITCH 10. BLADE GUARD LOCKING LEVER 2. BEVEL LOCKING HANDLE 11. UPPER BLADE GUARD 3. MITRE LOCKING SCREW 12. SLIDING FENCE 4. HEAD LATCHING PIN 13. LOWER BLADE GUARD 5. MITRE ANGLE SCALE 14. ROTARY TABLE 6. -
Page 13: Assembly And Preparation
www.evolutionpowertools.com (7.1) ASSEMBLY AND PREPARATION WARNING: Always disconnect the saw from the power source before making any adjustments. (7.2) PERMANENTLY MOUNTING THE MITRE SAW To reduce the risk of injury from unexpected saw movement, place the saw in the desired location either on a workbench or other suitable machine stand. -
Page 14: Hold Down Clamp
www.evolutionpowertools.com (7.4) HOLD DOWN CLAMP (Fig. 4) Two sockets (one either side) are incorporated into the rear of the machines fence. These sockets are for positioning the top hold down clamp. • Fit the clamp to the retaining socket that best suits the cutting application, ensuring that it is fully pushed down. • Place the workpiece to be cut onto the saw rotary table, against the fence and in the desired position. -
Page 15: Body And Hand Positioning
www.evolutionpowertools.com (8.3) BODY AND HAND POSITIONING (Fig. 7) • Never place your hands within the ‘No Hands Zone’ (at least 150mm away from the blade). Keep hands away from the path of the blade. No Hands Zone • Secure the workpiece firmly to the table and against No-Hands Zone No-Hands Zone the fence to prevent any movement. No-Hands Zone • Use a top hold down clamp if possible but check that it is so positioned that it does not interfere with the path... -
Page 16: Cutting Head Travel
www.evolutionpowertools.com 45° Bevel Stop Adjustment • Loosen the bevel locking handle and tilt the cutting head completely to the left until it rests against the 45° stop. • Use a set square (avoiding the TCT tips of the blade teeth), check that the blade is at 45° to the table. • If the saw blade is not in exact alignment adjustment is necessary. • Return the cutting head to its upright position. • Loosen the locknut on the 45° bevel adjustment screw with a 10mm spanner and 3mm Hex key (Not supplied). -
Page 17: Mitre Angle Scales & Pointer
www.evolutionpowertools.com • If adjustment is necessary, loosen the two fence attachment screws using a 5mm Hex key (Not supplied). • Re-position the fence in its elongated slots until alignment is achieved. • Securely tighten the socket head Hex screws. MITRE ANGLE SCALES & POINTER Note: There are dual mitre angle scales cast into the RH (Right Hand) side of the rotary table. A small pointer machined into the machines base indicates the angle selected (Fig. -
Page 18: The Motor On/Off Switch
www.evolutionpowertools.com To release the cutting head from the locked down position: • Gently press down on the cutting handle. • Pull out the head latching pin (Fig. 16) and allow the cutting head to rise to its upper position. If release is difficult: • Gently rock the cutting head up and down. • At the same time twist the head latching pin clockwise and pull outwards. Fig. 17 Note: We recommend that when the machine is not in use the cutting head is locked in its down position with the latching pin fully engaged in its socket. -
Page 19: Bevel Cutting
www.evolutionpowertools.com Positive stops are provided at 45°, 30°, 22.5°, 15°, and 0° to both the right hand and left hand sides. • Loosen the mitre locking screw (Fig. 20) by turning it anti-clockwise. • Turn the rotary table to the desired angle. A mitre angle protractor scale is incorporated into the rotary table to aid setting. • Tighten the mitre locking screw when the desired angle is achieved. -
Page 20: Cutting Bowed Material
Note: It is recommended that the operator wears protective gloves when handling the blade during installation or when changing the machines blade. Warning: Only use genuine Evolution blades or those blades specifically recommended by Evolution Power Tools and which Fig. 27 are designed for this machine. -
Page 21: Use Of Optional
Ensure the hex key is removed and the arbor lock button has released before operating. Ensure the blade guard is fully functional before using the machine. (8.12) USE OF OPTIONAL EVOLUTION ACCESSORIES Not supplied as original equipment (see ‘Additional Accessories’). DUST BAG (8.13) -
Page 22: Maintenance
www.evolutionpowertools.com (6.1) (6.4) MAINTENANCE ENVIRONMENTAL PROTECTION Note: Any maintenance must be carried Waste electrical products should not be out with the machine switched off and disposed of with household waste. disconnected from the mains/battery power Please recycle where facilities exist. supply. Check that all safety features and Check with your local authority or retailer for guards operating correctly on a regular basis. -
Page 23: Declaration Of Conformity
EC DECLARATION OF CONFORMITY The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below. - Page 24 Evolution Power Tools Ltd Evolution Power Tools LLC Evolution Power Tools SAS Venture One 8363 Research Drive 61 Avenue Lafontaine Longacre Close Davenport 33560 Holbrook Industrial Estate Iowa Carbon-Blanc Sheffield 52806 Bordeaux S20 3FR +44 (0)114 251 1022 +1 866-EVO-TOOL...
