Steering Link Rod Fasteners

IMPORTANT: The steering link rod that connects the steering cable to the
engine must be fastened using special washer head bolt ("a" ‑ Part Number
10‑849838) and self‑locking nylon insert locknuts ("c" & "d" ‑ Part Number
11‑826709113). These locknuts must never be replaced with common nuts
(non‑locking) as they will work loose and vibrate off freeing the link rod to
disengage.
Improper fasteners or improper installation procedures can result in
loosening or disengagement of the steering link rod. This can cause a
sudden, unexpected loss of boat control, resulting in serious injury or death
due to occupants being thrown within or out of the boat. Always use required
components and follow instructions and torque procedures.
d

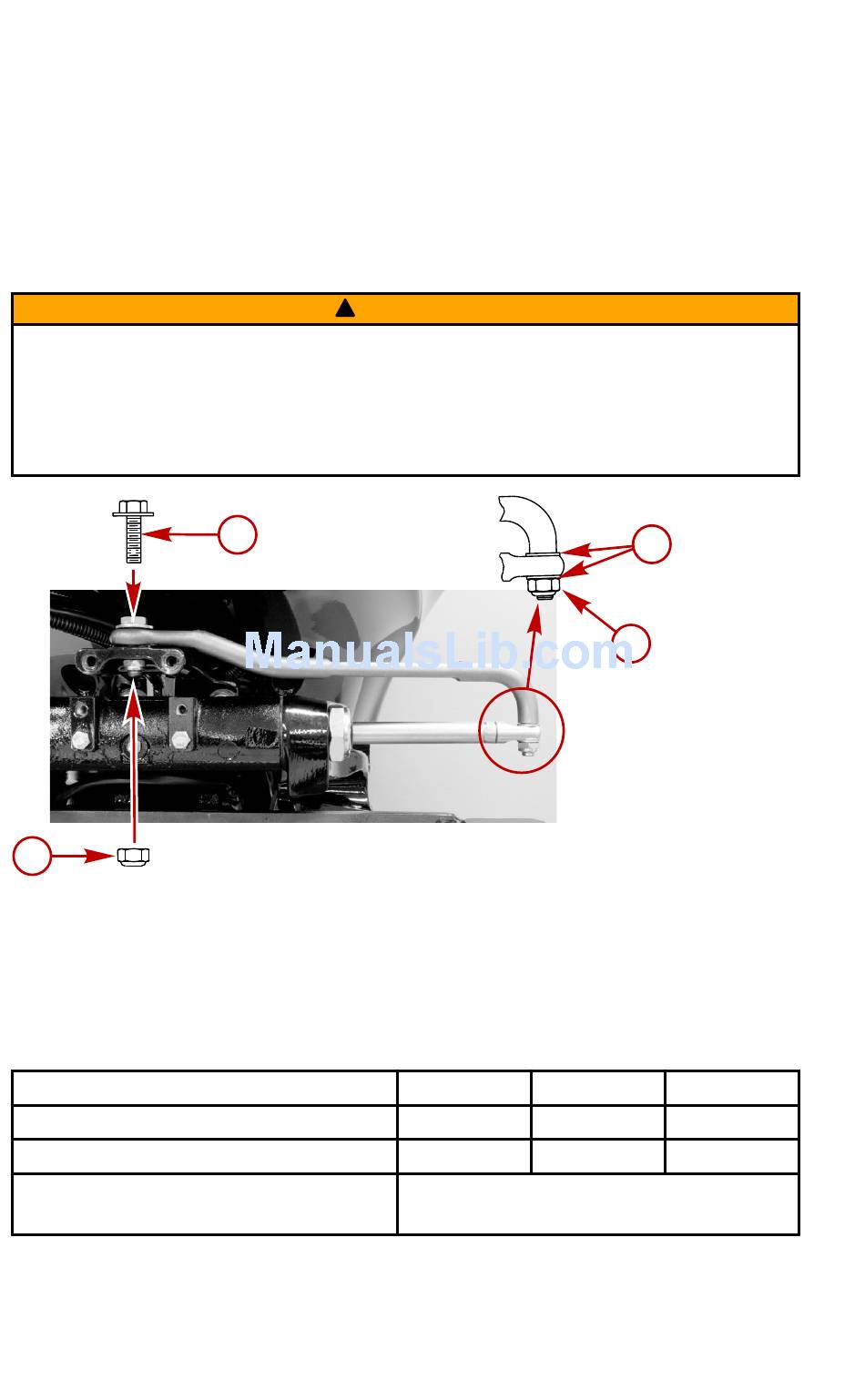

a - Special washer head bolt (10‑849838)
b - Flat washer (2)
c - Nylon insert locknut (11‑826709113)
d - Nylon insert locknut (11‑826709113)
Description
Special washer head bolt
Nylon insert locknut "d"
Nylon insert locknut "c"
Assemble the steering link rod to steering cable with two flat washers and
self‑locking nylon insert locknut. Tighten the locknut until it seats, then back nut
off 1/4 turn.
MAINTENANCE
WARNING
!
a
82
29746
Nm lb‑in.
27
27
Tighten until seats, then back off 1/4
turn
b
c
lb‑ft
– 20
– 20
