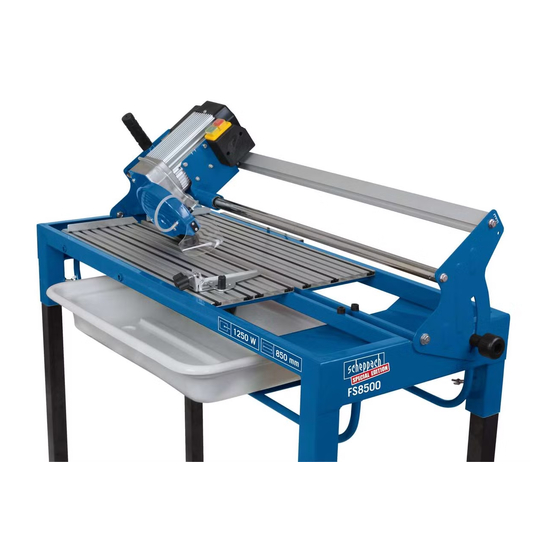

- Page 1 Art.Nr. 5906703903 5906703850 | 05/2014 FS85000 Tile-cutting machine Translation from the original manual...
- Page 2 Nur für EU-Länder. Kun for EU-lande. Werfen Sie Elektrowerkzeuge nicht in den Hausmüll! Elværktøj må ikke bortskaffes som allmindeligt affald! Gemäß europäischer Richtlinie 2012/19/EU über Elektro- und Elektronik- I henhold til det europæiske direktiv 2012/19/EF em bortskaffelse af Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektro- elektriske og elektroniske produkter og gældende national lovgivning skal werkzeuge getrennt gesammelt und einer umweltgerechten Wiederverwer- brugt elværktoj indsamles separat og bortskaffes på...
- Page 3 Tile-cutting machine 4 - 17...
-
Page 4: Dear Customer
D-89335 Ichenhausen DEAR CUSTOMER, We wish you lots of fun and success in working with your new scheppach machine. NOTE: As per the applicable Product Liability Law, the manu facturer of this device will not be liable for damages that... -
Page 5: General Instructions
• Use only original parts for accessories as well as con- sumables and spare parts. Spare parts can be obtained from your scheppach retailer. • Please quote our article numbers as well as type and production year in all your orders. -
Page 6: Safety Instructions
Wear eye protection Wear hearing protection Wear dust protection masks We have marked the places that affect your safety with the following signs: m m Safety instructions Working with the tile-cutting machine can be risky, if sa- fe and correct work procedures are not followed. As with all machines, working with the product involves certain inherent risks. - Page 7 in rotating components. Skid-free shoes are recommen - ded. Protect long hair with a net. • Always wear protective goggles (corresponding to ANSI Z87.1). A normal pair of glasses cannot provide ade quate protection. In dusty environments, use a face- or dust mask.
-
Page 8: Other Safety Instructions
OTHER SAFETY INSTRUCTIONS Please read all the instructions before using this product! Workplace To rule out the risk of physical injury, machine damage, fire and electric shock, please ensure that your workplace is protected • against humidity, wetness and rain, •... -
Page 9: Residual Risks
fied immediately! • The safety-, workplace- and maintenance specifica- tions of the manufacturer as well as the dimensions specified in the technical data must be observed. • The applicable accident prevention measures and the other generally recognized technical safety rules must be observed. -
Page 10: Before Start-Up
Before start-up Replace cracked diamond cutting discs. • Get to know your machine. Familiarize yourself with its use and its restrictions, but also with the specific potential risks. • Check the machine carefully for damages to ensure that it is able to achieve the intended output. In case of doubt, please replace the concerned component. - Page 11 EQUIPMENT FIG.1-2 Fig. 1 Machine head Base frame Legs Alu. table Angled stop Stop rails Guide rails Cutting disc protection 10 Diamond cutting-disc 11 Handle 12 Star knob screw for angle adjustment 13 Pin for transport lock Fig. 2 14 Cooling water pump 15 Hose 16 Motor 17 ON/OFF switch...
- Page 12 Assembly Fig.3-5 Fig. 3 For technical packaging reasons, your machine is not as- sembled fully. Take the machine out of the packing and place it laterally on the floor very carefully. Introduce the legs (3) into the base frame and lock them with butterfly nuts (A) (Fig.
-
Page 13: Electric Connection
45° diagonal cutting (Fig. 8) Fig. 8 Set angled stop (6) to 45° Carry out cutting as described. 45° longitudinal cutting, (Fig. 9) Fig. 9 Loosen the star knob screw (E) on both sides Slant guide rail (8) at the left to 45° of the angle scale (18). -
Page 14: Maintenance
cable is a specification DAMAGED ELECTRIC CONNECTING CABLES Insulation damages frequently occur on electric connec- ting cables. The reasons are: • Pressure points, if connecting cables are routed through window or door gaps. • Kinks due to improper mounting or routing of connec- ting cables. - Page 15 Leakage current circuit-breaker ADDITIONAL INSTRUCTIONS FOR LEAKAGE CURRENT CIRCUIT-BREAKER. Please observe the following important instructions on start-up and handling. Pay attention to the instructions even if you hand over the product to a third party. Preserve this operating Instruc- tions manual for subsequent reference. SAFETY INSTRUCTIONS! •...
- Page 16 this operating instructions manual, all warranty claims will become null and void. We do not accept any lia- bility for consequential damages. • Check the product for damage before each use! If you detect a damage, do not connect the product to the mains power supply! •...
-
Page 17: Troubleshooting
Trouble shooting Panne Cause possible Dépannage Diamond cutting disc comes off Fastening nut not tightened properly Tighten fastening nu when motor is deactivated. when motor is deactivated. a) Failure of mains circuit-breaker a) Check mains circuit-breaker b) Extension cable defective b) Replace extension cable c) Connection with motor or switch is c) Have it checked by an electrician... - Page 19 Fabrikation von Holzbearbeitungsmaschinen GmbH • Günzburger Str. 69 • D-89335 Ichenhausen Konformitätserklärung erklärt folgende Konformität gemäß prehlasuje nasledujúcu zhodu podla smernice EU a EU-Richtlinie und Normen für den Artikel noriem pre výrobok kinnitab järgmist vastavus vastavalt ELi direktiivi ja...
