Winmate R10IH8M-RTT2GP User Manual

10.4'' ultra-rugged tablet computer intel core i5-5200u broadwell 2.2 ghz, up to 2.7 ghz
Hide thumbs Also See for R10IH8M-RTT2GP:
Table of Contents

Advertisement

Quick Links

Download this manual

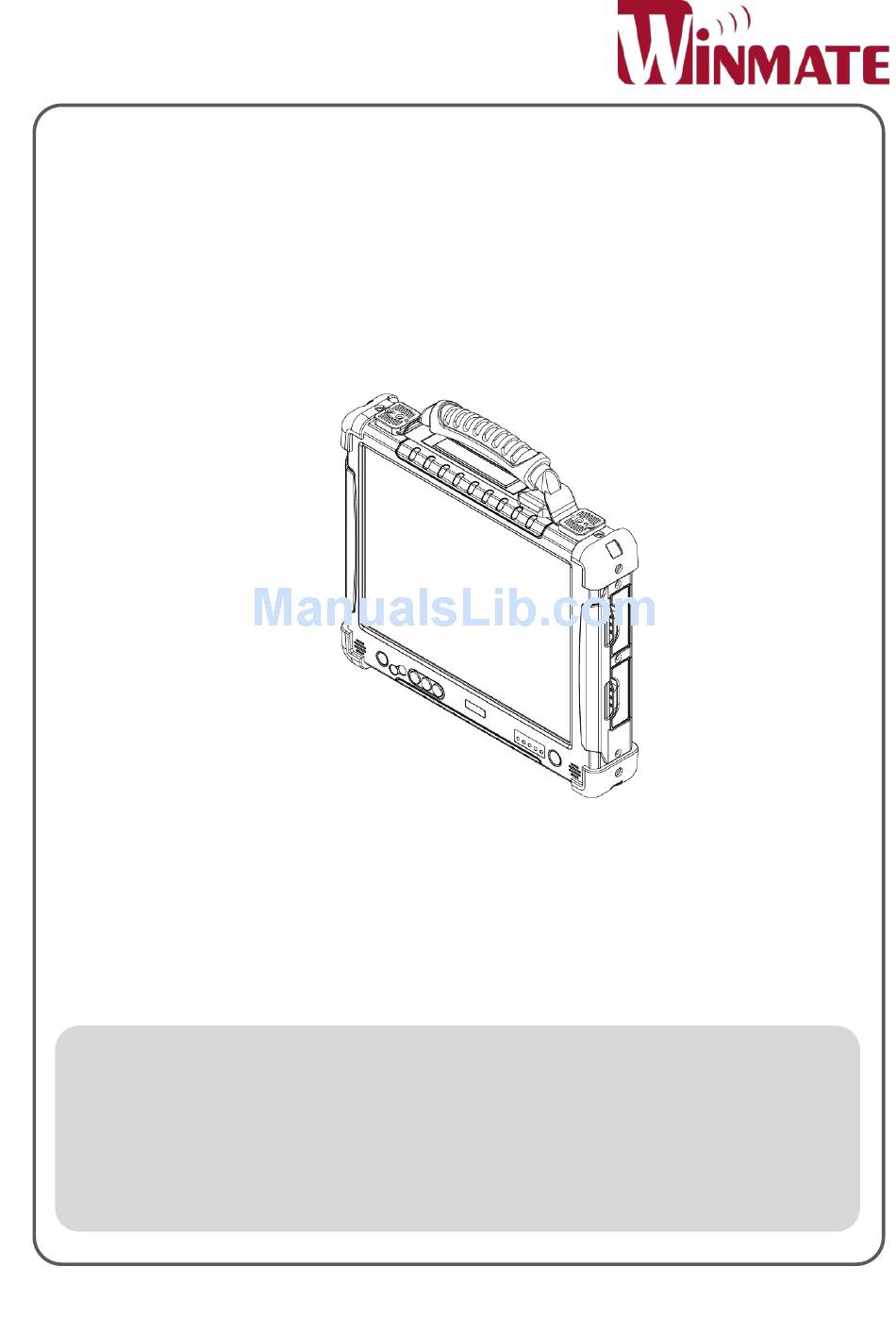

Ultra-Rugged Tablet Computer
Intel ® Core i5-5200U Broadwell 2.2 GHz, up to
2.7 GHz
R10IH8M-RTT2GP, 10.4" Ultra Rugged Tablet PC

User Guide

Version 1.0
Please read this instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading

Related Manuals for Winmate R10IH8M-RTT2GP

Summary of Contents for Winmate R10IH8M-RTT2GP

  • Page 1: User Guide

    Ultra-Rugged Tablet Computer Intel ® Core i5-5200U Broadwell 2.2 GHz, up to 2.7 GHz R10IH8M-RTT2GP, 10.4” Ultra Rugged Tablet PC User Guide Version 1.0 Please read this instructions carefully before using this product, and save this manual for future use.

  • Page 2: Customer Service

    Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 3 You may need the following information ready before you call:  Product serial number  Software (OS, version, application software, etc.)  Description of complete problem  The exact wording of any error messages In addition, free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

  • Page 4: Important Information

    Important Information Countries/ This equipment complies with essential Symbol Area requirements of: European Union Electromagnetic Compatibility Directive(2014/30/EU) Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) FCC Part 15 Subpart B Regulations Class B Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules.

  • Page 5: Table Of Contents

    Contents PREFACE ....................................I ABOUT THIS USER GUIDE ................................. 1 ..................................1 OCUMENTATION ..................................1 HAPTER ESCRIPTIONS CHAPTER 1: READ ME FIRST ..............................2 ..................................2 AFETY NFORMATION ................................5 ANDLING AND AINTENANCE CHAPTER 2: GETTING STARTED ..............................7 ....................................7 NTRODUCTION ..................................
  • Page 6 ................................38 ASIC ROUBLESHOOTING APPENDIX A: SPECIFICATIONS ..............................40 APPENDIX B: DIMENSIONS AND SCHEMATICS........................42 APPENDIX E: SOFTWARE DEVELOPMENT KIT (SDK) ........................ 43...

  • Page 8: About This User Guide

    Some pictures in this guide are samples and can differ from actual product. NOTE Documentation Set The documentation set for the R10IH8M-RTT2GP series provides information for specific user needs, and includes:  Ultra Rugged Tablet PC Series Quick Start Guide - describes how to get the R10IH8M-RTT2GP up and running.

  • Page 9: Chapter 1: Read Me First

    R10IH8M-RTT2GP User Guide Do Not Short the Positive (+) and Chapter 1: Read Me First Negative (-) Terminals of the Battery. Generation of heat, ignition or rupture may result. When carrying or storing the device, do not place the battery pack...
  • Page 10 Chapter 1 Read Me First When the Battery Pack Has Deteriorated, General Product Replace It with a New Battery. Continued Safety use of a damaged battery pack may result in heat generation, ignition or Sécurité générale battery rupture. des produits Lorsque la pile est détériorée, la This product should not be used near remplacer par une nouvelle pile.
  • Page 11 R10IH8M-RTT2GP User Guide Do not disregard the safety that a Use only with its transport carriage, polarized or grounded connection can stand, tripod, console or table specified provide. A polarized connection consists by the manufacturer or sold with the of two plugs, one of which is larger than product.

  • Page 12: Handling And Maintenance

    Chapter 1 Read Me First To maximize the life of the backlight in the display, allow backlight to Handling and Maintenance automatically turn off as a result of power management. Avoid using a screen saver Follow and adhere to all warnings and or other software that prevents the power management from working.
  • Page 13 R10IH8M-RTT2GP User Guide When there is a noticeable discrepancy in Touchscreen the operation of the touchscreen function Guideline (your touch does not correlate to the proper location on the screen), recalibrate Guide de l'écran the touchscreen display. tactile Lorsqu'il y a un écart sensible dans le Use your finger or the stylus on the display.

  • Page 14: Chapter 2: Getting Started

    Introduction Thank you for purchasing Winmate® R10IH8M-RTT2GP Rugged Tablet Computer. Winmate® R10IH8M-RTT2GP Rugged Tablet PC is powered by a Haswell 1.6 GHz Intel Core i5-5200U processor that was designed for high performance computing and uses the Intel HD 4400 Graphics chipset. The R10IH8M-RTT2GP comes with a 10.4” high-quality XGA (1024 x 768)

  • Page 15: Unpacking

    R10IH8M-RTT2GP User Guide Unpacking If any of the following items are missing or damaged, contact us. Standard packing list includes:  Tablet Computer  Standard Battery  Power Adapter  Power Cord and Plugs  Driver CD  User Manual...

  • Page 16: Description Of Parts

    Chapter 2 Getting Started Description of Parts Left: Front: Right: No Item Description Item Description Resistive Display acts as one of Power Mode Touch Screen the inputs for the Tablet Computer Battery Status Speaker 2 x 1 Watt Speaker Menu Menu function to show Storage Status brightness, volume,...
  • Page 17 R10IH8M-RTT2GP User Guide Rear: Bottom: Top: Item Description Item Description Stylus Stylus pen to optimize Docking Port to docking the touch performance Connector solutions such as Adjustable This adjustable vehicle docking to Kickstand kickstand allows user provide power and to adjust their viewing external antenna angle.

  • Page 18: Hotkey For Specific Functions

    Getting Started HotKey for Specific Functions For the physical buttons on the R10IH8M-RTT2GP Tablet Computer, in addition to their dedicated functions detailed in the previous section, they can also be used to emulate commonly used keyboard key strokes. Under different scenario, a single physical button or a combination of...

  • Page 19: First-Time Operation

    R10IH8M-RTT2GP User Guide First-time Operation To start using the R10IH8M-RTT2GP for the first time:  Install the Battery Pack  Installing Hot-swappable Battery  Charge the R10IH8M-RTT2GP  Power on the R10IH8M-RTT2GP  Configure the R10IH8M-RTT2GP Inserting Battery Pack To insert the standard battery pack into the Tablet Computer: 1.

  • Page 20: Installing Hot-Swappable Battery

    Chapter 2 Getting Started Installing Hot-swappable Battery This Hot-swappable battery carries 2600mAh back-up battery that can support half of the main battery operating hours. To installed the hot-swappable battery perform this following steps: 1. Plug the hot-swappable battery while the main battery in low power mode 2.

  • Page 21: Connecting To Power Supply

    R10IH8M-RTT2GP User Guide Connecting to Power Supply The Tablet Computer operates either on external AC power or internal battery power. It is recommended to use AC power when you start up the Tablet Computer for the first time. Use only the AC adapter included with your Tablet Computer. Using other AC adapters may damage the Tablet Computer and the Battery.

  • Page 22: Powering On

    Chapter 2 Getting Started Powering On Press and hold the power button for 3 seconds until the blue LED power indicator light up.  Do not press the power button repeatedly.  Do not perform the following operations until the Disk Activity Indicator o Connecting or disconnecting the AC adapter NOTE o Pressing the power button...

  • Page 23: Chapter 3: First Time Operation

    R10IH8M-RTT2GP User Guide Chapter 3: First Time Operation For users starting up the Tablet Computer for the first time with internal battery power, please make sure the battery is full charged before using. IMPORTANT This section details how to setup different version of the Windows that may be installed on the tablet for the first time.
  • Page 24 Chapter 3 First Time Operation 3. On the Personalize screen, choose a color you like – you can always change this later from the Start screen. 4. In the PC name field, type a name for your computer, and then click or tap Next.
  • Page 25 R10IH8M-RTT2GP User Guide 5. On the Settings page screen, choose Use express settings for the fastest setup. 6. Windows will then try to connect to network. Ignore attempt to connect to internet as you do not need internet connection to finish setup your pc.
  • Page 26 Chapter 3 First Time Operation 7. On Your account screen, type your username and password to create a local account, and then click or tap Finish. 8. Windows may take some time to finalize your settings.
  • Page 27 R10IH8M-RTT2GP User Guide 9. On the Windows Sign-in screen, enter the user name and password that you set up earlier, and then press Enter. 10. Once Windows finishes login, you are now ready to use the PC...

  • Page 28: Setting Up Windows 10 Iot Enterprise

    Chapter 3 First Time Operation Setting up Windows 10 IoT Enterprise This section details how to setup different version of the Windows that may be installed on the tablet for the first time. 3.1 Setting up Windows 10 IoT Enterprise Follow the steps below to complete the setup process.
  • Page 29 R10IH8M-RTT2GP User Guide Windows will then try to connect to network. Tap Skip this step to continue without a wireless connection as you can then set up the network later. On the Get going fast screen, click Use Express settings for the fastest setup. If you would like more information, tap Learn more, or if you would like to select your own options, click Customize settings.

  • Page 30: Chapter 4: Quick Access With Hottab

    Chapter 4 Quick Access with Hottab Chapter 4: Quick Access with Hottab Hottab Introduction Hottab provides quick access to the Tablet’s functions and features, such as setting up shortcuts, using camera, powering on/off built-in devices, programming function key, and changing power management.

  • Page 31: Shortcuts

    R10IH8M-RTT2GP User Guide Setting button provides users information such as PC Information, Battery status, and also device settings such as power management setting, and function key mappings. Shortcuts Set up On-screen Software Shortcuts Hottab Shortcuts Menu provides user-friendly interface to configure on-screen software short cuts and allow users to quickly access programs with a few tabs.

  • Page 32: Camera

    Chapter 4 Quick Access with Hottab Camera Using Camera Features This Hottab menu option allows users take a picture or record a video. Before use, make sure the Camera is powered on under Devices ON/OFF menu with the following scenarios: 1.
  • Page 33 R10IH8M-RTT2GP User Guide Description of Camera User Interface Buttons: No Item Description 1 Camera Switch Switch between front camera or rear camera. 2 Settings Brings up Camera settings page. Available Settings:  Picture Save: modify/inspect saved location for pictures.  Video Save Folder: modify/inspect saved location for video recordings.

  • Page 34: Device On/Off

    Chapter 4 Quick Access with Hottab Device ON/OFF This section provides a quick access to set-up built-in devices, including turning on/off RF modules, setting up barcode reader, RFID reader, and expansion modules.

  • Page 35: Using The Wireless Lan (Wi-Fi)

    R10IH8M-RTT2GP User Guide Using the Wireless LAN (Wi-Fi) To use the wireless LAN (Wi-Fi) feature to connect to the network, perform the following procedure: 1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application.

  • Page 36: Using The Wireless Wan (3G/Lte)

    Chapter 4 Quick Access with Hottab Using the Wireless WAN (3G/LTE) Insert SIM card (For optional 3G/LTE equipped device) Power off the tablet before installing the 3G/LTE module and micro SIM card, or the Tablet Computer might be damaged by the incorrect installation behaviors.

  • Page 37: Use Wireless Wan Feature

    R10IH8M-RTT2GP User Guide Use Wireless WAN Feature For tablets equipped with wireless WAN (3G or 4G/LTE) card, to use the wireless WAN feature to connect to the network, perform the following procedure: 1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application.

  • Page 38: Using The Bluetooth

    Chapter 4 Quick Access with Hottab Using the Bluetooth To enable the wireless Bluetooth feature, perform the following procedure: 1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the Hottab Utility application. 2.

  • Page 39: Settings

    R10IH8M-RTT2GP User Guide Settings This Hottab menu option provides users information such as PC Information, Battery status, and also device settings such as power management setting, and function key mappings. Perform the following procedure to access the Hottab Setting menu: 1.
  • Page 40 Chapter 4 Quick Access with Hottab To configure function key mapping, perform the following: 1. Launching the Hottab Utility application. 2. Tap on the Setting button. 3. Tap on function key icon for the corresponding key that you want to change. 4.

  • Page 41: Chapter 5: Frequently Used Settings

    Chapter 5: Frequently Used Settings Screen Resolution Scaling and Setting The R10IH8M-RTT2GP 1024 x 768 high resolution display is perfect for viewing image, video, or other applications, however, Windows user interface (icons, buttons, and other user interface elements) may be too small to read and operate at the default Windows settings. By changing the display scaling or the display resolution setting of the device, you can adjust the size of the text and other items on the desktop for optimal viewing.

  • Page 42: Changing Display Scaling Setting (Recommended)

    2. The following panel will open. Here you can adjust the size of text, apps, and other items and also change the orientation. To change the resolution settings, scroll down this window and click on Advanced Display Settings 3. 1024 x 768 is the recommended screen resolution for R10IH8M-RTT2GP.

  • Page 43: Using Recovery Wizard To Restore Computer

    R10IH8M-RTT2GP User Guide Using Recovery Wizard to Restore Computer R10IH8M-RTT2GP tablet computer has a dedicate recovery partition stored on the hard drive of the tablet to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in to each R10IH8M-RTT2GP tablet computer.
  • Page 44 Chapter 5 Frequently Used Settings 5. Wait till the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process. After recovery is completed, and the tablet computer will restart automatically.

  • Page 45: Chapter 6: Troubleshooting

    R10IH8M-RTT2GP User Guide Chapter 6: Troubleshooting Basic Troubleshooting Problem Solution  Make sure the AC adapter is properly The removable battery is not charging. connected, and that the removable battery is properly inserted.  The tablet computer may be in sleep Nothing appears on the screen.
  • Page 46 Chapter 6 Troubleshooting the devices.  Make sure the both devices are powered on and configured to be discoverable.  Make sure that both devices are compatible.  Make sure that GPS is powered on in The GPS application cannot find my location.

  • Page 47: Appendix A: Specifications

    Appendix A Specifications Appendix A: Specifications Hardware Specifications Model Name R10IH8M-RTT2GP Size 10.4-inch Resolution 1024 x 768 Brightness 700 nits Display Specification Touch Resistive Touch Contrast Ratio 1200:1 Intel® Core i5-5200U Broadwell 2.2GHz (turbo Processor 2.7 GHz) Default 4GB SODIMM DDR3L-1600 (up to...
  • Page 48 Appendix A Specifications Operating -20°C ~ +60°C (AC Mode) Temp. -10°C ~ +50°C (Battery Mode) Humidity 5% to 95% RH, non-condensing Environmental IP Proof IP65 Considerations Shock MIL-STD-810G Method 516.6 Procedure I Vibration MIL-STD-810G Method 514.6 Procedure I Drop MIL-STD-810G Method 516.6, 4 ft to concrete 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO WWAN Rev A, 1 x RTT)

  • Page 49: Appendix B: Dimensions And Schematics

    Appendix B Software Development Kit Appendix B: Dimensions and Schematics Default Configuration...

  • Page 50: Appendix E: Software Development Kit (Sdk)

    Appendix E Appendix E: Software Development Kit (SDK) Download SDK from Winmate Download Center or Winmate Partner Portal. Winmate Download Center: http://www.winmate.com.tw/ > Support > Download Center >Ultra Rugged Tablet > IH83 > Winmate File Share http://www.winmate.com.tw/ > Support > Partner Portal > Public Documents >...
  • Page 51 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
