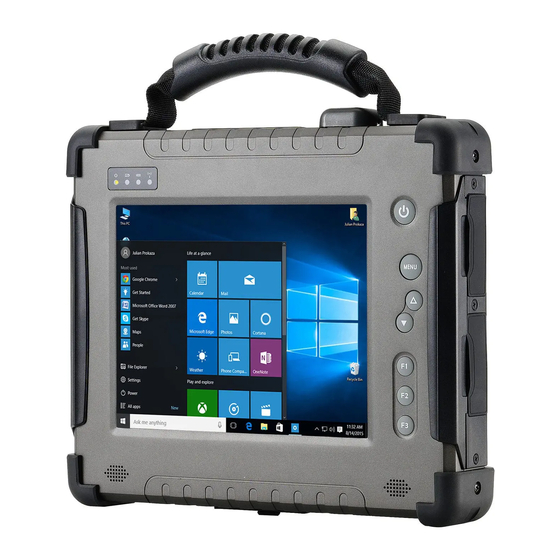

- Page 1 8.4/ 10.4” Ultra-Rugged Tablet R08IK8M-RTU1GP R10IK8M-RTT2GP 7th Gen. Intel® Core™ i5-7200U Kaby Lake, 2.5 GHz (turbo up to 3.1 GHz) User Guide Document Version 1.0 Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
8.4/ 10.4" Ultra-Rugged Tablet User Guide Contents Chapter 1: Read Me First ............................... 3 1.1 Advisory Conventions .........................................3 1.2 Safety Information ..........................................4 1.3 Handling and Maintenance .........................................6 1.4 Declaration of Conformity (DoC) ......................................7 Chapter 2: Getting Started ..............................8 2.1 Overview .............................................8 2.2 Introduction ............................................8 2.3 Product Features ..........................................8 2.4 Unpacking ............................................9... -
Page 3: Chapter 1: Read Me First
Chapter 1: Read Me First Chapter 1: Read Me First 1.1 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. -
Page 4: Safety Information
8.4/ 10.4" Ultra-Rugged Tablet User Guide 1.2 Safety Information Precaution on Battery Pack When the Battery Pack Has Deteriorated, Précaution avec le bloc-pile Replace It with a New Battery. Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture. - Page 5 Chapter 1: Read Me First General Product Safety Use only accessories specified by the Sécurité générale des manufacturer. [FR] Utiliser uniquement les accessoires produits spécifiés par le fabricant. Do not block any ventilation openings. Do not This product should not be used near water place the product against a wall or in an such as bathtubs, sinks, swimming pools, wet enclosed space as doing so might impede the...
-
Page 6: Handling And Maintenance
8.4/ 10.4" Ultra-Rugged Tablet User Guide 1.3 Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the General Guideline product. [FR] Essuyer délicatement l'écran avec un Guide Général chiffon doux non pelucheux. Ne pas utiliser d'alcool ou un détergent sur le produit. -
Page 7: Declaration Of Conformity (Doc)
Chapter 1: Read Me First 1.4 Declaration of Conformity (DoC) FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including ... -
Page 8: Chapter 2: Getting Started
8.4/ 10.4" Ultra-Rugged Tablet User Guide Chapter 2: Getting Started 2.1 Overview This chapter tells you information about Winmate® Ultra-Rugged Tablet Computer, its highlighted features, and provides basic instructions for using the Ultra-Rugged Tablet Computer. Introduction Product Features... -
Page 9: Unpacking
Chapter 2: Getting Started 2.4 Unpacking If any of the following items are missing or damaged, contact us. Standard packing list includes: Tablet Computer Standard Battery Power Adapter Power Cord and Plugs Driver CD User Manual ... -
Page 10: Description Of Parts
8.4/ 10.4" Ultra-Rugged Tablet User Guide 2.5 Description of Parts 8.4”, R08IK8M-RTU1GP Front: Right: Left: Item Description No Item Description Resistive Display acts as one of Power Mode Touch Screen the inputs for the Tablet Computer Battery Status Menu Menu function to... - Page 11 Chapter 2: Getting Started Rear: Bottom: Top: Item Description Item Description Stylus Stylus pen to optimize Docking Port to docking the touch performance Connector solutions such as Adjustable This adjustable vehicle docking to Kickstand kickstand allows user provide power and to adjust their viewing external antenna.
- Page 12 8.4/ 10.4" Ultra-Rugged Tablet User Guide 10.4”, R10IK8M-RTT2GP Left: Front: Right: Item Description No Item Description Resistive Display acts as one of Power Mode Touch Screen the inputs for the Tablet Battery Status Computer Speaker 2 x 1 Watt Speaker Storage Status Menu Menu function to show...
- Page 13 Chapter 2: Getting Started Rear: Bottom: Top: Item Description Item Description Stylus Stylus pen to optimize Docking Port to docking the touch performance Connector solutions such as Adjustable This adjustable vehicle docking to Kickstand kickstand allows user provide power and to adjust their viewing external antenna.
-
Page 14: Hotkey For Specific Functions
8.4/ 10.4" Ultra-Rugged Tablet User Guide 2.6 HotKey for Specific Functions For the physical buttons on the Ultra-Rugged Tablet Computer, in addition to their dedicated functions detailed in the previous section, they can also be used to emulate commonly used keyboard key strokes. -
Page 15: First-Time Operation
Chapter 2: Getting Started 2.7 First-time Operation To start using the tablet computer for the first time: Install the battery pack. Install battery. Charge the tablet computer. Power on the tablet computer. Configure the settings of the tablet computer Inserting Battery Pack To insert the standard battery pack into the tablet computer: 1. -
Page 16: Connecting To Power Supply
8.4/ 10.4" Ultra-Rugged Tablet User Guide 2.8 Connecting to Power Supply The Tablet Computer operates either on external AC power or internal battery power. It is recommended to use AC power when you start up the Tablet Computer for the first time. -
Page 17: Powering On And Off
Chapter 2: Getting Started 2.9 Powering On and Off Powering On Press and hold the power button for 3 seconds until the blue LED power indicator light up. Note: • Do not press the power button repeatedly. • Do not perform the following operations until the Disk Activity Indicator off •... -
Page 18: Chapter 3: First Time Operation
8.4/ 10.4" Ultra-Rugged Tablet User Guide Chapter 3: First Time Operation This section details how to setup different version of the Windows that may be installed on the tablet for the first time. Note: Please notice that BIOS varies by different Windows OS; for users going to change OS, please contact our sales contact window for details. - Page 19 Chapter 3: First Time Operation On the Here’s the legal stuff screen, read through the disclosures, then tap Accept. Windows will then try to connect to network. Tap Skip this step to continue without a wireless connection as you can then set up the network later. On the Get going fast screen, click Use Express settings for the fastest setup.
- Page 20 8.4/ 10.4" Ultra-Rugged Tablet User Guide To create a local account, type your User name, password, and Password hint in the fields provided, then tap Next. The initial setup screens are complete, and the desktop is displayed. Read any introductory screens describing features of your computer, and tap Next upon completing each.
-
Page 21: Chapter 4: Quick Access With Hottab
Chapter 4: Quick Access with Hottab Chapter 4: Quick Access with Hottab 4.1 Hottab Introduction Hottab provides quick access to the Tablet’s functions and features, such as setting up shortcuts, using camera, powering on/off built-in devices, programming function key, and changing power management. -
Page 22: Shortcuts
8.4/ 10.4" Ultra-Rugged Tablet User Guide 4.2 Shortcuts Set up On-screen Software Shortcuts Hottab Shortcuts Menu provides user-friendly interface to configure on-screen software short cuts and allow users to quickly access programs with a few tabs. The Shortcuts menu offers 8 empty slots to store user’s desired quick access. Shortcuts can be mapped to any of the executable files (.exe) installed on the tablet. -
Page 23: Description Of Camera User Interface Buttons
Chapter 4: Quick Access with Hottab 4.3.2 Description of Camera User Interface Buttons: No Item Description 1 Camera Switch Switch between front camera or rear camera. 2 Settings Brings up Camera settings page. Available Settings: Picture Save: modify/inspect saved location for pictures. -
Page 24: Device On / Off
8.4/ 10.4" Ultra-Rugged Tablet User Guide 4.4 Device On / Off This section provides a quick access to set-up built-in devices, including turning on/off RF modules, setting up barcode reader, RFID reader, and expansion modules. 4.5 Using the Wireless LAN (Wi-Fi) To use the wireless LAN (Wi-Fi) feature to connect to the network, perform the following procedure: 1. -
Page 25: Using The Wireless Wan (3G/Lte)
Chapter 4: Quick Access with Hottab 4.6 Using the Wireless WAN (3G/LTE) 4.6.1 Insert SIM card (For 3G/LTE Equipped Devices) Notice that 3G/LTE feature is optional. The Tablet Computer supports data connection with 3G/LTE Modules and fits Micro-SIM card. Caution Power off the tablet before installing the 3G/LTE module and micro SIM card, or the Tablet Computer might be damaged by the incorrect installation behaviors Before using the data connection program, please perform the following procedures to insert... -
Page 26: Using The Gps
8.4/ 10.4" Ultra-Rugged Tablet User Guide 4. If the WWAN feature is disabled (white), tap on the WWAN icon to enable it (orange). 5. You can check the wireless WAN connection status through the wireless network connection status icon in the Windows notification area. The more bars encompassed, the better the signal is. -
Page 27: Settings
Chapter 4: Quick Access with Hottab 6. To add a device, tap on Add a Bluetooth Device. Windows will search any Bluetooth device automatically 7. Choose the Bluetooth device that user wants to connect and follow onscreen prompt to continue the pair procedure and use the Bluetooth device. 4.9 Settings This Hottab menu option provides users information such as PC Information, Battery status, and also device settings such as power management setting, and function key mappings. - Page 28 8.4/ 10.4" Ultra-Rugged Tablet User Guide To configure function key mapping, perform the following: 1. Launching the Hottab Utility application. 2. Tap on the Setting button. 3. Tap on function key icon for the corresponding key that you want to change. 4.
-
Page 29: Chapter 5: Frequently Used Settings
Note: Winmate recommends the users set the scaling to this setting for optimal text and image viewing. Before proceeding to change the scaling option, make sure any opened document is saved and close, and all running applications are closed before proceeding to change the display scaling, because this procedure requires users to log out of their account to apply display scaling change. -
Page 30: Using Recovery Wizard To Restore Computer
8.4/ 10.4" Ultra-Rugged Tablet User Guide 2. The following panel will open. Here you can adjust the size of text, apps, and other items and also change the orientation. To change the resolution settings, scroll down this window and click on Advanced Display Settings 5.3 Using Recovery Wizard to Restore Computer The tablet computer has a dedicate recovery partition stored on the hard drive of the tablet to enable quick one-key recovery process. - Page 31 Chapter 5: Frequently Used Settings 4. A warning message about data loss will show up. Make sure data is backed up before recovery, and click on “Yes” to continue. 5. Wait till the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process.
-
Page 32: Chapter 6: Troubleshooting
8.4/ 10.4" Ultra-Rugged Tablet User Guide Chapter 6: Troubleshooting 6.1 Basic Troubleshooting Problem Solution Make sure the AC adapter is properly The removable battery is not charging. connected, and that the removable battery is properly inserted. The tablet computer may be in sleep Nothing appears on the screen. - Page 33 Problem Solution Make sure that GPS is powered on in The GPS application cannot find my location. Hottab. Make sure that GPS receiver and the location sensor are enabled in Control Panel. The tablet computer may be out of coverage area.
-
Page 34: Appendix A: Technical Specifications
Appendix A: Technical Specifications Model Name R08IK8M-RTU1GP R10IK8M-RTT2GP Display Size 8.4" 10.4" Resolution 800 x 600 1024 x 768 Brightness 800 nits 700 nits Touch Resistive Resistive Mechanical Dimensions 266 x 220 x 50.5 mm 266 x 220 x 50.5 mm Weight 2.39 kg... -
Page 35: Appendix B: Dimensions And Schematics
Appendix B: Dimensions and Schematics 8.4”, R08IK8M-RTU1GP Default Configuration 10.4”, R10IK8M-RTT2GP Default Configuration... - Page 36 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
