E
J
D
SSENCE
UICE
Dimensions
Depth ...................................22
Width ...................................12.2
Height ..................................30.31
Installation Instructions
1.
Remove back panel (B) by loosening the
screws and lift the panel up, see FIGURE
2.
Release Date: October 17, 2006
© 2006-2014, Cornelius Inc.
INSTALLATION MANUAL
ISPENSER
www.cornelius.com
- 1 -
Essence Juice Dispenser Installation Manual

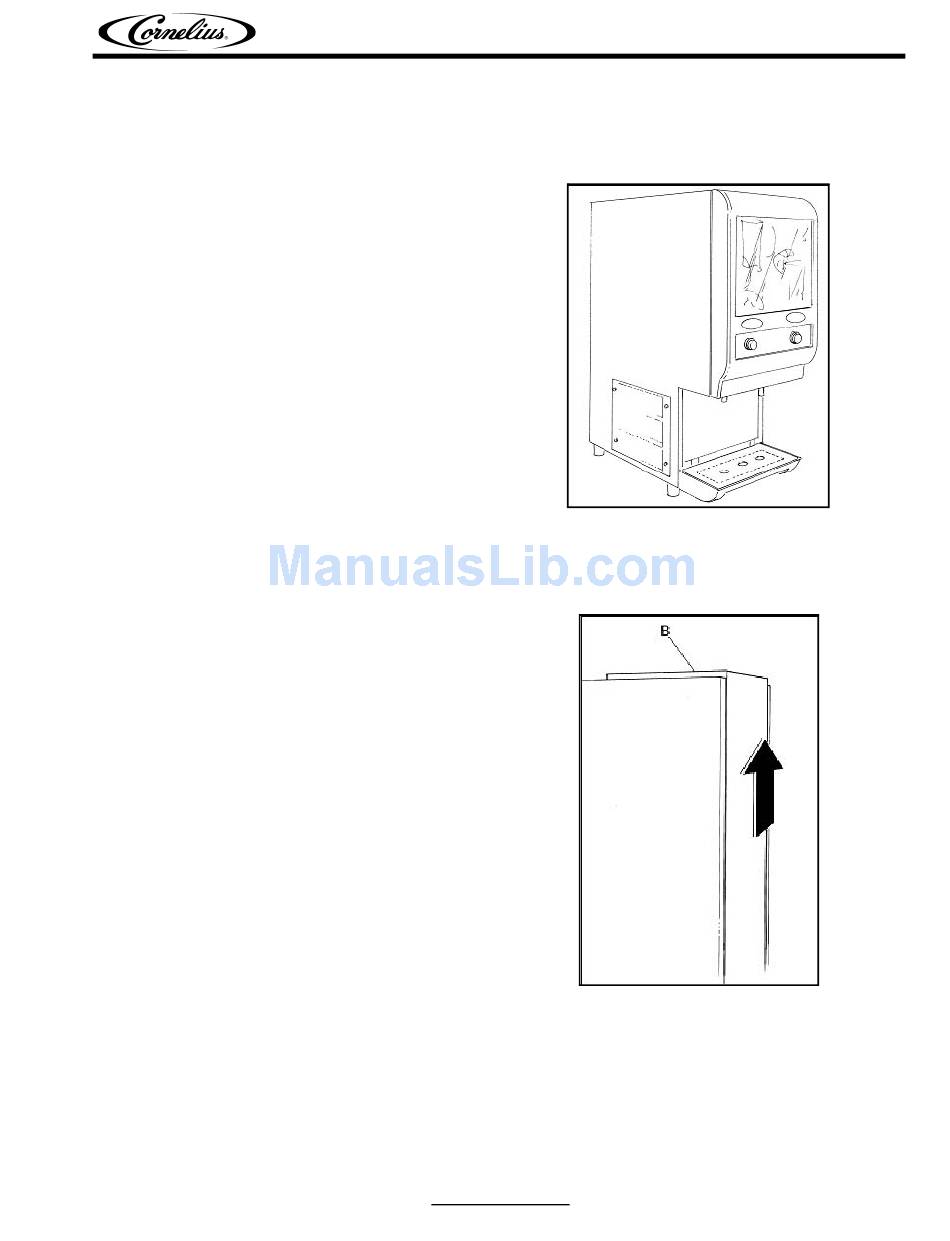

FIGURE 1
FIGURE 2
Publication Number: 621058301INS
Revision: B
Advertisement
Related Manuals for Cornelius essense
Summary of Contents for Cornelius essense
-
Page 1: Installation Instructions
Height ........30.31 FIGURE 1 Installation Instructions Remove back panel (B) by loosening the screws and lift the panel up, see FIGURE FIGURE 2 www.cornelius.com Release Date: October 17, 2006 Revision: B © 2006-2014, Cornelius Inc. - 1 - Publication Number: 621058301INS... - Page 2 Fill the reservoir tank (K), see FIGURE 3. Close tap (C) when the water begins to flow from the tube in which tap (C) is mounted, see FIGURE FIGURE 4 Publication Number: 621058301INS - 2 - © 2006-2014, Cornelius Inc.
- Page 3 Load the concentrate container (D) in place and press down firmly to seat into the ball-check adapter, see FIGURE 6. FIGURE 6 Loosen the knobs (E) and remove cover (F), see FIGURE 7. FIGURE 7 © 2006-2014, Cornelius Inc. - 3 - Publication Number: 621058301INS...
- Page 4 Remount cover (F) by fastening knobs (E), see FIGURE 7. FIGURE 8 Press and hold dispense buttons (H) until the product is dispensed, see FIGURE 9. The dispenser is now ready to operate. FIGURE 9 Publication Number: 621058301INS - 4 - © 2006-2014, Cornelius Inc.
-
Page 5: Sanitizing Procedure
90 seconds and stop, see FIGURE 11. Allow the sanitizing solution to remain in the dispenser for 5 minutes. After 5 minutes, dispense the remaining solution. Repeat the operation for the other dispense side. FIGURE 11 © 2006-2014, Cornelius Inc. - 5 - Publication Number: 621058301INS... - Page 6 Clean the nozzles, mixers, and mixing chamber with warm water and a mild detergent. After cleaning, remount the nozzles and mixing chambers by repeating the operations in reverse order. FIGURE 14 Publication Number: 621058301INS - 6 - © 2006-2014, Cornelius Inc.
- Page 7 Press and hold button (H) for 30 seconds, see FIGURE 16. Repeat the same operation for each mixing chamber. Turn the switch (N) to the “On” position, see FIGURE 15. FIGURE 16 © 2006-2014, Cornelius Inc. - 7 - Publication Number: 621058301INS...
- Page 8 D. Switch the pump (T) on. E. Allow the sanitizing solution to flow out from the tube in which coupling (C) is mounted. F. Switch the pump off (T) and close tap (C). Publication Number: 621058301INS - 8 - © 2006-2014, Cornelius Inc.
- Page 9 FIGURE 19. U. Press and hold the dispense buttons (H) until product flows from the dispense heads, see FIGURE 20. The unit is ready to dispense. FIGURE 21 © 2006-2014, Cornelius Inc. - 9 - Publication Number: 621058301INS...
