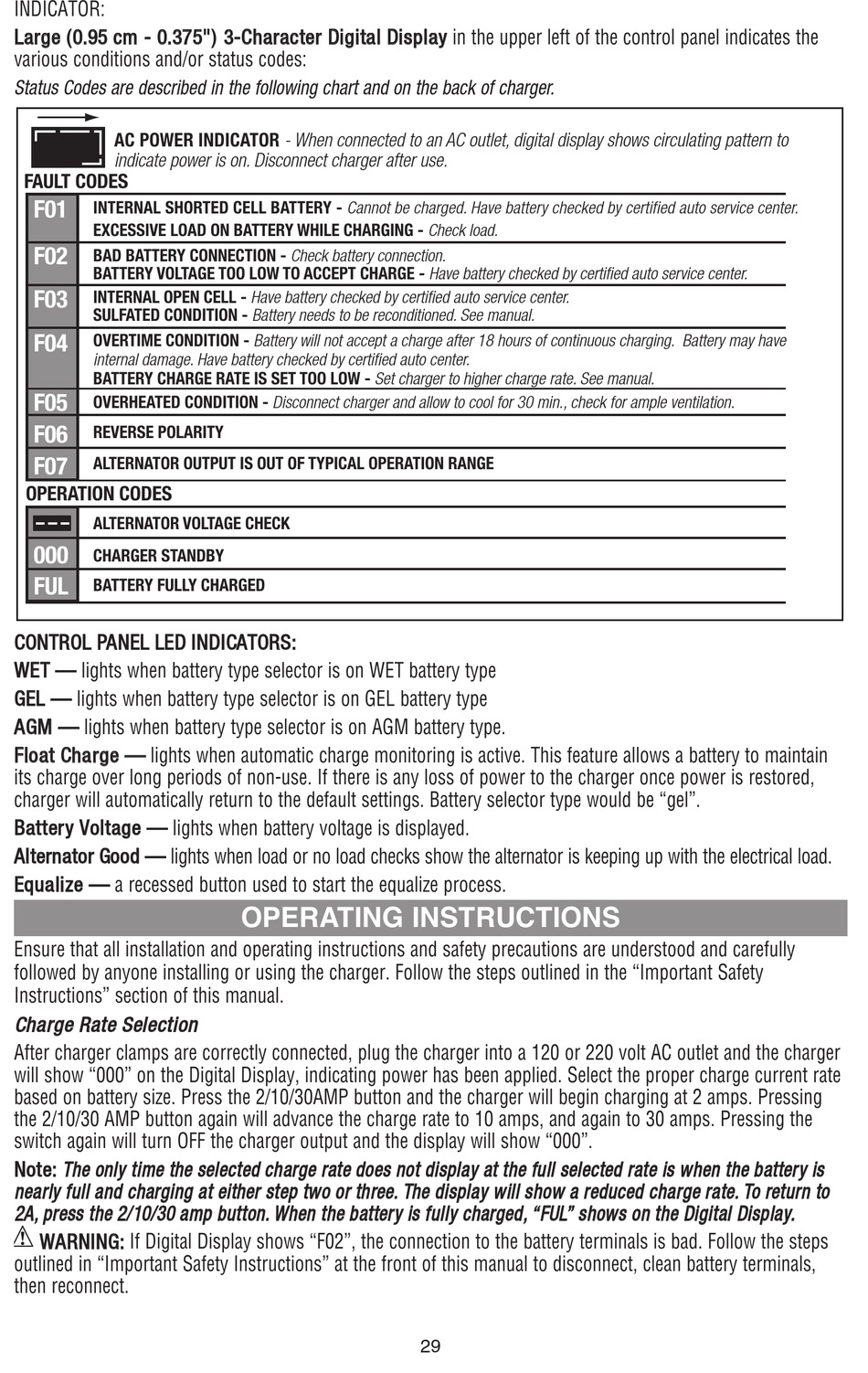

INDICATOR:
L L a a r r g g e e ( ( 0 0 . . 9 9 5 5 c c m m - - 0 0 . . 3 3 7 7 5 5 " " ) ) 3 3 - - C C h h a a r r a a c c t t e e r r D D i i g g i i t t a a l l D D i i s s p p l l a a y y in the upper left of the control panel indicates the
various conditions and/or status codes:
Status Codes are described in the following chart and on the back of charger.
AC POWER INDICATOR - When connected to an AC outlet, digital display shows circulating pattern to
indicate power is on. Disconnect charger after use.

FAULT CODES

F01
INTERNAL SHORTED CELL BATTERY - Cannot be charged. Have battery checked by certified auto service center.
EXCESSIVE LOAD ON BATTERY WHILE CHARGING - Check load.
F02
BAD BATTERY CONNECTION - Check battery connection.
BATTERY VOLTAGE TOO LOW TO ACCEPT CHARGE - Have battery checked by certified auto service center.
F03
INTERNAL OPEN CELL - Have battery checked by certified auto service center.
SULFATED CONDITION - Battery needs to be reconditioned. See manual.
F04
OVERTIME CONDITION - Battery will not accept a charge after 18 hours of continuous charging. Battery may have
internal damage. Have battery checked by certified auto center.
BATTERY CHARGE RATE IS SET TOO LOW - Set charger to higher charge rate. See manual.
F05
OVERHEATED CONDITION - Disconnect charger and allow to cool for 30 min., check for ample ventilation.
F06
REVERSE POLARITY
F07
ALTERNATOR OUTPUT IS OUT OF TYPICAL OPERATION RANGE

OPERATION CODES

ALTERNATOR VOLTAGE CHECK
000
CHARGER STANDBY
FUL
BATTERY FULLY CHARGED
W W E E T T — — lights when battery type selector is on WET battery type C C O O N N T T R R O O L L P P A A N N E E L L L L E E D D I I N N D D I I C C A A T T O O R R S S : :
G G E E L L — — lights when battery type selector is on GEL battery type
A A G G M M — — lights when battery type selector is on AGM battery type.
F F l l o o a a t t C C h h a a r r g g e e — — lights when automatic charge monitoring is active. This feature allows a battery to maintain
its charge over long periods of non-use. If there is any loss of power to the charger once power is restored,
charger will automatically return to the default settings. Battery selector type would be "gel".
B B a a t t t t e e r r y y V V o o l l t t a a g g e e — — lights when battery voltage is displayed.
A A l l t t e e r r n n a a t t o o r r G G o o o o d d — — lights when load or no load checks show the alternator is keeping up with the electrical load.
E E q q u u a a l l i i z z e e — — a recessed button used to start the equalize process.
Ensure that all installation and operating instructions and safety precautions are understood and carefully
followed by anyone installing or using the charger. Follow the steps outlined in the "Important Safety
Instructions" section of this manual.
After charger clamps are correctly connected, plug the charger into a 120 or 220 volt AC outlet and the charger C C h h a a r r g g e e R R a a t t e e S S e e l l e e c c t t i i o o n n
will show "000" on the Digital Display, indicating power has been applied. Select the proper charge current rate
based on battery size. Press the 2/10/30AMP button and the charger will begin charging at 2 amps. Pressing
the 2/10/30 AMP button again will advance the charge rate to 10 amps, and again to 30 amps. Pressing the
switch again will turn OFF the charger output and the display will show "000".
N N o o t t e e : : T T h h e e o o n n l l y y t t i i m m e e t t h h e e s s e e l l e e c c t t e e d d c c h h a a r r g g e e r r a a t t e e d d o o e e s s n n o o t t d d i i s s p p l l a a y y a a t t t t h h e e f f u u l l l l s s e e l l e e c c t t e e d d r r a a t t e e i i s s w w h h e e n n t t h h e e b b a a t t t t e e r r y y i i s s
n n e e a a r r l l y y f f u u l l l l a a n n d d c c h h a a r r g g i i n n g g a a t t e e i i t t h h e e r r s s t t e e p p t t w w o o o o r r t t h h r r e e e e . . T T h h e e d d i i s s p p l l a a y y w w i i l l l l s s h h o o w w a a r r e e d d u u c c e e d d c c h h a a r r g g e e r r a a t t e e . . T T o o r r e e t t u u r r n n t t o o
2 2 A A , , p p r r e e s s s s t t h h e e 2 2 / / 1 1 0 0 / / 3 3 0 0 a a m m p p b b u u t t t t o o n n . . W W h h e e n n t t h h e e b b a a t t t t e e r r y y i i s s f f u u l l l l y y c c h h a a r r g g e e d d , , " " F F U U L L " " s s h h o o w w s s o o n n t t h h e e D D i i g g i i t t a a l l D D i i s s p p l l a a y y . . W W A A R R N N I I N N G G : : If Digital Display shows "F02", the connection to the battery terminals is bad. Follow the steps
outlined in "Important Safety Instructions" at the front of this manual to disconnect, clean battery terminals,
then reconnect.
