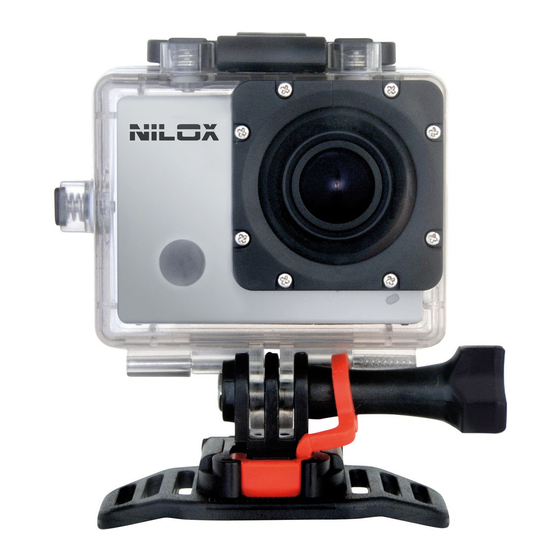

Nilox F60 Reloaded User Manual

Full hd wifi action cam
Hide thumbs Also See for F60 Reloaded:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Manual
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F60 Reloaded and is the answer not in the manual?

Questions and answers

Related Manuals for Nilox F60 Reloaded

Summary of Contents for Nilox F60 Reloaded

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    UMMARY PREFACE ................................. 5 PRECAUTIONS ..............................5 DESCRIPTION............................... 5 TECHNICAL SPECIFICATIONS ........................6 STRUCTURE ................................7 OPERATING INSTRUCTIONS ......................... 7 Charge ................................. 7 Inserting and removing the memory card ....................7 METHOD OF USE AND SYMBOLS ........................ 8 Video Mode ................................ 8 Car-carrying or dash-cam mode ........................
  • Page 3 DISPLAY PHOTO, VIDEO AND CAMERA MODES ................. 16 LOCK................................. 16 Delete file ................................16 CONNECTIVITY ..............................17 COMPUTER CONNECTION ........................17 CONNECTION WITH A VIDEO OR TELEVISION ................17 REMOTE CONTROLLER ..........................18 WI-FI CONNECTION ............................18 Connecting your smartphone and video camera ..................18 APP AND ANDROID AND iOS FUNCTIONALITIES ................
  • Page 4 Display date ..............................23 Format ................................23 Upside down ..............................23 Timelapse mode ............................23 Timelapse interval ............................23 Timelapse duration ............................. 24 Upside down ..............................24 DISPLAY PHOTOS AND VIDEOS (WITH APP) ..................25 Displaying a single photo or video ......................25 Multiple selection ............................

  • Page 5: Preface

    PREFACE Thank you for choosing F60-RELOADED, the high-definition digital camera. Easy to use, compact and with an integrated design. With its high-definition and dynamic image capturing technology it can record your daily activities at anytime and anywhere, so you can remember your experiences and share them with your family and friends. This manual will clearly explain you how to use and install the video camera, providing detailed information as well as technical specifications.

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS The F60-RELOADED video camera has the following specifications: • Image sensor: 8.0 mega-pixel CMOS • Functions: Video recording, photos, preview, car-carrying mode • Lenses F2.8 f=2.5 mm • Screen: LCD 2.0” • 4X digital zoom through app • Photo resolution: 16M, 8M, 5M, 4M •...

  • Page 7: Structure

    STRUCTURE 1) Lenses 4) LED use indicator 2) Infrared receiver for remote 5) 2” screen control 6) Setup key 3) LED battery charge indicator 7) Microphone 8) ON key, press the key 10) Wi-Fi ON key/Down key for cyclically to switch between scrolling the menu video, car-carrying, photo and playback modes.

  • Page 8: Method Of Use And Symbols

    METHOD OF USE AND SYMBOLS The camera has 4 operating modes: • Video recording mode • Car-carrying or dash-cam mode • Photo mode • Video and photo view mode. Press the key to switch between the various modes. The camera is set to video mode by default when turned on. Following are some of the symbols that most commonly appear on the screen.
  • Page 9 1. Photo mode 2. Image resolution 3. Remaining photo indicator 4. Battery charge level Preview mode The screen shown on the left will be displayed; if you select CAR, previews of videos made in car-carrying mode will be displayed; VIDEO will show previews of videos made in standard mode while JPG will show previews of photos taken.

  • Page 10: Parameter Settings (Cam)

    PARAMETER SETTINGS (CAM) To set video camera parameters, use the key and navigate the menu with the keys. Confirm selections by pressing If the F60-RELOADED is in video mode before the key is pressed, video and general settings can be edited; the following symbol will appear on the top bar Vice versa, if the F60-RELOADED is in photo mode, photo and general settings can be edited;...

  • Page 11: Image Stabiliser

    MAGE STABILISER Lets you turn on the image stabiliser. Go to: Image stabiliser: Press to confirm Select with and confirm with The choices for the stabiliser as are follows: • • PSIDE DOWN It lets you fully overturn the video camera; videos will be rotated 180 degrees. Go to: Upside down Press...

  • Page 12: Photo Parameter Settings

    Select with and confirm with Possible choices are: • Automatic • Daylight • Cloudy • Fluor • Tungsten PHOTO PARAMETER SETTINGS (CAM ESOLUTION It lets you set photo resolution. Go to: Resolution Press to confirm Select with and confirm with Possible choices are: •...

  • Page 13: Setup Parameter Settings (Cam)

    • 3 photos • 5 photos • 10 photos • Continuous shooting SETUP PARAMETER SETTINGS (CAM) OWER SAVE Lets you deactivate the screen after a time that you set. Go to: Power save Press to confirm Select with and confirm with Possible choices are: •...

  • Page 14: Timelapse Duration

    This lets you set the F60-RELOADED display language. Go to: Timelapse Press to confirm Select with and confirm with Possible choices are: Off, 3 seconds, 5 seconds, 10 seconds, 30 seconds, 1 minute. The resulting video will be a more or less accelerated video depending on the setting parameter used. A normal video has a reproduction of 30 or 60 frames per second.

  • Page 15: System

    YSTEM Lets you see information about the cam and memory card. You can also do a factory reset from here. Go to: System Press to confirm Select with and confirm with Possible choices are: • Reset everything (reset original cam settings) •...

  • Page 16: Display Photo, Video And Camera Modes

    DISPLAY PHOTO, VIDEO AND CAMERA MODES Press repeatedly until appears. Select the item you want to see: • Car: videos recorded in car-carrying mode • Video: videos recorded in standard video mode • Jpg: photos taken in standard mode The photos and videos taken appear. enables the menu for the photo and video modes.

  • Page 17: Connectivity

    CONNECTIVITY COMPUTER CONNECTION The F60-RELOADED camera has 1 USB micro port. Use this port to connect the camera to a computer to charge or download photos and videos from the memory card. MSDC appears on the screen when connected to the computer. The internal F60-RELOADED card is displayed as an external disk drive.

  • Page 18: Remote Controller

    Smartphones and Tablets and remotely controlled. Just download the free F60-RELOADED App to connect the device in Wi-Fi. Open the App-Store or Google-Play Store, search for the NILOX F-60 RELOADED App and download it; the following icon will be displayed: ONNECTING YOUR SMARTPHONE AND VIDEO CAMERA •...

  • Page 19: App And Android And Ios Functionalities

    APP AND ANDROID AND OS FUNCTIONALITIES Once the F60-RELOADED and Smartphone are connected and you have started the application, you can manage the cam from your smartphone or tablet. The display modes for Android and iOS are very similar. The display modes for Android and iOS are as follows: Android: 1 White balance: 7 Enable photo mode...

  • Page 20: Battery Level

    ATTERY LEVEL Shows the remaining charge NOTE: How long the battery lasts depends on the video resolution, the Wi-Fi connection and the stability of the signal. A very weak Wi-Fi signal drains the battery more quickly. Under normal conditions with HD video resolution, the battery lasts about 1 hour; if the Wi-Fi connection is not used, it will last more than twice that.

  • Page 21: Video Recording Duration

    IDEO RECORDING DURATION Shows how long the video you are taking lasts; if you are in photo mode, you will see a self-timer. In the latter case, pressing the symbol lets you reset the self-timer parameters: • Off, 2 seconds, 10 seconds ARAMETERS SETTING This lets you set a series of additional parameters on your F60-RELOADED.

  • Page 22: Parameter Settings (With App)

    PARAMETER SETTINGS (WITH APP) Some parameters of the F60-RELOADED can be set using the app. IDEO ARAMETERS White balance This lets you achieve higher brightness and colour saturation depending on the light conditions. Possible choices are: • Automatic • Daylight •...

  • Page 23: Photo Parameters

    HOTO PARAMETERS Continuous shooting Lets you set the number of shots to be taken in sequence. Possible choices are: • off, 3 photos, 5 photos, 10 photos White balance This lets you achieve higher brightness and colour saturation depending on the light conditions. Possible choices are: •...

  • Page 24: Timelapse Duration

    Timelapse duration Once the 2 above-mentioned parameters have been defined, set how long the cam will continue shooting photos for a Timelapse. Possible choices are: • 5 minutes, 10 minutes, 15 minutes, 20 minutes, 30 minutes, 1 hour, unlimited (stop by pressing the shoot button again) Upside down Lets you turn the view of videos upside down.

  • Page 25: Display Photos And Videos (With App)

    DISPLAY PHOTOS AND VIDEOS (WITH APP) As previously seen, you can access the photo and video archive on the MicroSD at any time in both applications. Press the icon at the bottom left. Videos are identified by the symbol which appears at the bottom right in preview.

  • Page 26: Download Manager

    From the start screen, touch the symbol at the bottom left to access multiple selection mode. This will let you select one or more of the files saved on the cam. Touch at the top right automatically selects all the photos and videos. Touching a single photo or video selects or deselects it (if already selected).

  • Page 27: Precautions

    PRECAUTIONS RECAUTIONS FOR THE CAMERA CASE The waterproof case is a precision component. Please use the following precautions: • Do not randomly dismount and mount the O-ring of the case, keys and lens cover, otherwise the waterproof performance deteriorates. • Do not put the case in a place where it is exposed to corrosive acid or alkaline gases and keep it away from chemical or corrosive substances.

  • Page 28: Included In The Pack

    INCLUDED IN THE PACK The articles included in the pack are the following: 1 F60-RELOADED 1 underwater case complete with open underwater case 1 hook support 1 remote controller 1 bike mounting 1 flat plate and 1 bracket curved plate WARRANTY AND LEGAL NOTES F60-RELOADED is equipped with a rechargeable lithium polymer battery.
  • Page 29 Instructions for the environment This product may contain substances that can be harmful to the environment and to the human health, if not disposed of properly. We therefore provide you the following information in order to prevent the release of such substances and to improve the use of natural resources.
  • Page 30 • This warranty is referred to in the event a conformity defect occurs, referred to product features. • Product support and warranty. Visit www.nilox.com to learn more. Warranty restrictions: this warranty does not apply in the following cases: • No proof of purchase (invoice or receipt).
