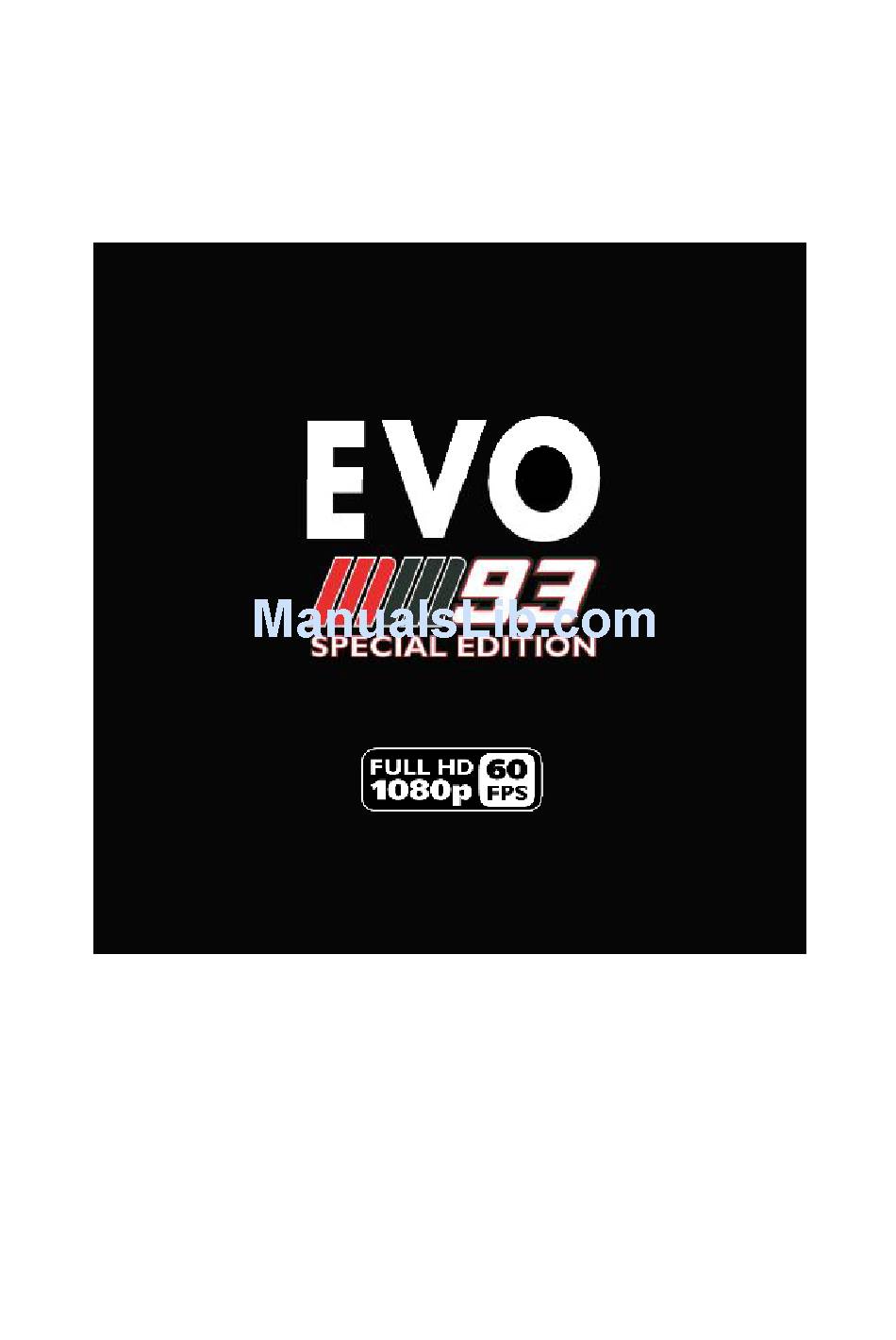

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
UMMARY PREFACE ................................. 5 PRECAUTIONS ..............................5 DESCRIPTION............................... 5 TECHNICAL SPECIFICATIONS ........................6 STRUCTURE ................................8 EVO MM93 Structure ............................8 LED ..................................8 OPERATING INSTRUCTIONS ......................... 9 Charge ................................. 9 Battery installation ............................9 TFT display installation ............................. 9 Inserting and removing the memory card .................... - Page 3 Photo resolution.............................. 19 Display time ..............................19 SYSTEM PARAMETERS SETTING ........................20 Warning tone ..............................20 Status indicator ..............................20 On screen display ............................20 Auto to standby ............................... 21 TV output format ............................21 Language ................................21 Date/time ................................22 Format ................................
- Page 4 Settings ................................32 File preview mode (Playback) ........................33 Change Wi-Fi connection name and password ..................34 Change name and connection ........................34 Change password ............................34 TECHNICAL SPECIFICATIONS ........................35 PRECAUTIONS ..............................36 Precautions for the camera case........................36 Precautions for the 3M dual-side foam tape ....................
-
Page 5: Preface
• Keep the camera in a cool, dry and dust-free place. DESCRIPTION EVO MM93 is a compact, high-level and digital camera for professional use, able to perform the following functions: High-definition (HD) digital photos. Data-voice Storage function. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS EVO MM93 camera has the following specifications: • 170° ultra wide-angle lens f/2.7. • HD lens, supporting 1080P, 960P, 720P video recording • 16 mega pixel photo shooting function, supporting a maximum resolution of 4608x3456. • Device Wi-Fi control via Smartphone applications (Apps). - Page 7 • Automatic standby for power saving and audio/video data saving.
-
Page 8: Structure
STRUCTURE EVO MM93 S TRUCTURE 1. Exposure meter 8. Status led (available for future 2. Blue Wi-Fi status led (a) use) 3. Green status led 9. Battery lock release 4. Red status led (b) 10. Microphone 5. G-sensor 11. Threaded interface 6. -
Page 9: Operating Instructions
Before inserting the battery, make sure the lock/release button is open; fully insert the battery in the compartment and close using the lock/release button. DISPLAY INSTALLATION EVO MM93 comes with a 2" removable TFT screen to view saved photos and videos. Install the display as illustrated. -
Page 10: Inserting And Removing The Memory Card
• Removal. 1 Turn off the video camera 2 Press the centre of the back of the card and release it; then remove it. Before connecting the EVO MM93 to any Wi-Fi device, make sure the memory card is inserted. -
Page 11: Preliminary Operations
PRELIMINARY OPERATIONS Before using EVO MM93, set the date and time as well as the display language. All EVO MM93 settings are accompanied by explicative graphic symbols. The three small icons on the left of the screen represent: A video camera: to select to edit video settings. -
Page 12: Legenda
YMBOLS Displayed in the upper left corner, it indicates the Video recording mode video recording mode Displayed at the top left when EVO MM93 is in Photo camera mode photo camera mode Displayed in the centre position, it indicates the duration of the current recording video. -
Page 13: Front Selectors And Settings Menu
FRONT SELECTORS AND SETTINGS MENU Some selectors are located on the front of the video camera XPOSURE MODE SELECTOR According to need and lighting conditions, the video camera exposure meter can be set to SPOT mode. This mode is used to adjust the amount of light according to a well-defined central point. -
Page 14: Parameters Setting
, then confirm selections by pressing key VIDEO PARAMETERS SETTING Symbol to select on the left side of the screen XE MODE Icon It allows to select the using mode of EVO MM93 video camera. EXE’ selected by default 3. Press to confirm 4. Press key to modify the choice, press key to confirm. -
Page 15: Video Resolution
Possible choices in seconds are:0.5, 1, 2, 5, 10, 30 off IDEO RESOLUTION It allows to select the desired resolution for the video recording. 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm The choices for the video resolution are the following: 1080P (16:9) -
Page 16: Bitrate
ITRATE It allows to change the numbers of recorded frames per each recording second. 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm The bit rate choices available are: •... -
Page 17: Display Time
ISPLAY TIME This function records automatically the date and time during the video recording and displays them in a video in the bottom right corner of the screen. 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm This function is not available with 1080P 50f/60f, 720P 100f/120f video resolution... -
Page 18: Camera Setting Parameters
CAMERA SETTING PARAMETERS Symbol to select on the left side of the screen APTURE MODE Lets you set photo shooting mode. 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm The choices are: •... -
Page 19: Photo Resolution
HOTO RESOLUTION It allows to select the resolution photo resolution. 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm Possible resolutions are: 16.0M (4608×3456 4:3), 12.0M (4000×3000 4:3), 8.0M (3200×2400 4:3). ISPLAY TIME This function automatically records the date and displays the photo at the bottom right. -
Page 20: System Parameters Setting
SYSTEM PARAMETERS SETTING Symbol to select on the left side of the screen ARNING TONE Set this function to enable the tick tone 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm The choices available are: Off, 50%, 100%. -
Page 21: Auto To Standby
UTO TO STANDBY It allows the automatic turn-off of the video camera display. 2. Press to reach the item 3. Press key to confirm 4. Choose the desired item and press key to confirm The choices in minutes are: • 10,5,2,Off. Where there is no operation, the system starts counting the time. -
Page 22: Date/Time
TIME It allows to adjust the date and the time 2. Press to reach the item 3. Press to confirm the selection 4. The choices available are: • Y-M-D-H-M (year, month, day, hour, minutes) • D-M-Y-H-M (day, month, year, hour, minutes) •... -
Page 23: Starting Steps
• Format the micro SD memory card (as described in System Parameters Setting paragraph) • Set data and time (as described in System Parameters Setting paragraph) Now you can proceed with all other parameters settings of your EVO MM93 according to your needs. -
Page 24: Recording A Video In Time Lapse Mode
• Fast shot It is possible to choose 3 p/s or 6p/s or 10 p/s (pictures/second). By pressing the key once, EVO MM93 video camera will shot 3, 6, or 10 images per second. • Auto shooting It is possible to choose 3, 5, 10 seconds. -
Page 25: Playing A Video File
You can view what you recorded (photos, video, audio, etc.) on your EVO MM93. To view a file, proceed as follows: 2. Three icons appear on the right side of the screen. 3. Press the key in sequence to enable view mode: Video only, photo only, video and photo. -
Page 26: Playing An Audio File
LAYING AN AUDIO FILE A group of video files are displayed with the audio file in preview status; the icon will be displayed instead of the initial video icon. Press to play the audio file You can use the following keys: Description Turns the sound volume up and down Returns to the playback interface when you press this key again. - Page 27 To protect a file, perform the following operations: key to switch to photo view mode 2. Press keys to move to the file to be protected 3. Press , select the icon and press to confirm 4. Select the desired item from: •...
-
Page 28: Output Interfaces
OUTPUT INTERFACES EVO MM93 Photo camera has 1 audio video output interfaces: • Hdmi and one data files output: • Usb DMI VIDEO OUT You can connect the photo camera to a video input, through the Hdmi output, by using a specific cable (not supplied). -
Page 29: Usb Output
The USB connection allows to : • Give power supply to the EVO MM93 video camera with a USB cable • Connect the EVO MM93 video camera to a computer in order to read the data in its memory and micro SD card. -
Page 30: Wi-Fi Connection
WI-FI CONNECTION Thanks to the built-in Wi-Fi module, EVO MM93 can be connected to Apple or Android Smartphones and Tablets and remotely controlled. Just download the free NILOX F-60 EVO MM93 App to connect the device in Wi-Fi. NDROID OR IPHONE Open the App-Store or Google-Play Store, search for the NILOX F-60 EVO MM93 App and download it;... -
Page 31: Video Recording
Video recording To start recording, press the central green key. Icon meanings are highly self- explanatory, starting from the top left in clockwise order: 1) Wi-Fi on 2) Battery level 3) Exit screen 4) Settings 5) Video mode on 6) Recording 7) Switch to view mode 8) Set video settings The mobile device must be used within max. -
Page 32: Settings
Settings Click on the gear at the bottom right to open the cam settings menu. Most parameters can be set and some operations run from this menu for correct cam operations. -
Page 33: File Preview Mode (Playback)
File preview mode (Playback) The image is immediately displayed when From the main menu, press to open the file preview is selected. preview menu. Alternatively, the same menu can be opened from the home screen by selecting My Album. If the selector is positioned on cam (left) the user can either view a photo or video or download it to smartphone or tablet. -
Page 34: Change Wi-Fi Connection Name And Password
Change name and connection • Connect the photo camera (with MicroSD card inserted) to the computer and turn on the photo camera. • Open "My computer" and find the virtual drive associated with the EVO MM93 video camera. F-60 EVO •... -
Page 35: Technical Specifications
TECHNICAL SPECIFICATIONS Wide angle 170° Shutter opening f/2.7 Digital zoom Pixel 16 million Video recording format Audio recording format Photo format JPG (JPEG) Wi-Fi coverage about 100 metres (Max.) Memory device 128 MB internal memory up to 64 GB on external Micro SD card Battery capacity 1500mAh Charge time... -
Page 36: Precautions
Before using EVO MM93 video camera, pay attention to the following notice information: • During continuous use, the body temperature of EVO MM93 video camera increases. The situation is normal. The camera surface may be hot after prolonged use. • If the video camera is not used for a long time, remove and keep the battery properly and recharge it every three months to ensure the battery performance. -
Page 37: Warranty And Legal Notes
WARRANTY AND LEGAL NOTES EVO MM93 is equipped with a rechargeable lithium polymer battery. To reduce the risk of fire, please avoid tampering, falls, contact with water or fire. To avoid personal injury, electric shock, fire or damage to various parts of the product, please... - Page 38 • This warranty is referred to in the event a conformity defect occurs, referred to product features. • Product support and warranty. Visit www.nilox.com to learn more. Warranty restrictions: this warranty does not apply in the following cases: • no proof of purchase (invoice or receipt).
- Page 39 telecommunications and their mutual recognition. The declaration of conformity is available at our offices. This device can thus be used in all EEC countries and in all countries where Directive 1999/5/EC applies, without restrictions, except for: Norway (NO): device not to be used within 20 km of Ny Alesund. Italy (IT): This peripheral complies with the National Radio Interface and meets requirements on Frequency Assignment.
