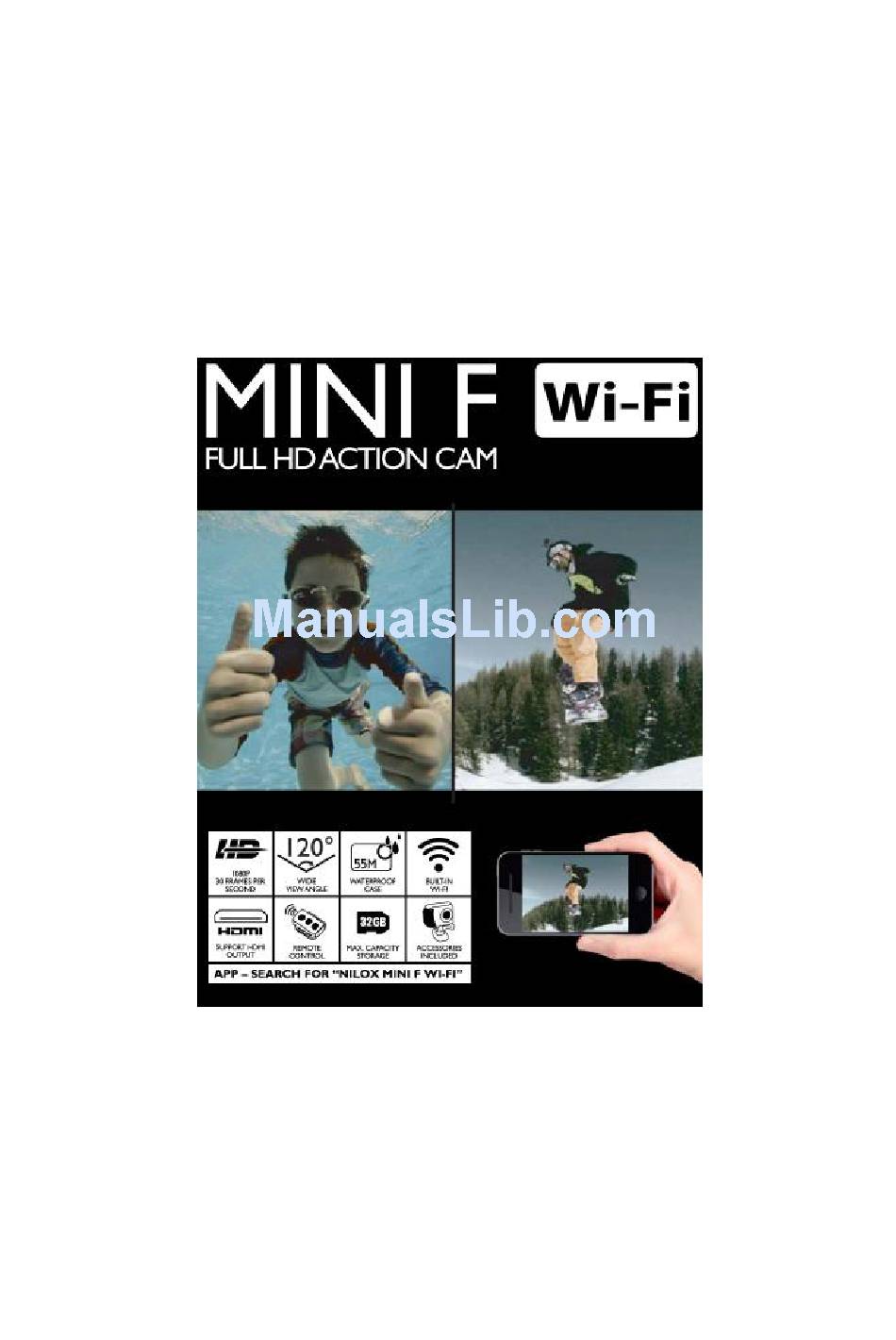

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
UMMARY PREFACE ................................. 4 PRECAUTIONS ..............................4 DESCRIPTION............................... 5 TECHNICAL SPECIFICATIONS ........................6 STRUCTURE ................................7 OPERATING INSTRUCTIONS ......................... 8 Charge ................................. 8 Inserting and removing the memory card ....................8 USE WITHOUT WI-FI APPLICATION ......................9 LCD DISPLAY AND KEY TO SYMBOLS ....................9 Make a video or take a photo: ........................ -
Page 4: Preface
PREFACE Thank you for choosing MINI F Wi-Fi, the high-definition digital camera. Easy to use, compact and with an integrated design. With its high-definition and dynamic image capturing technology it can record your daily activities at anytime and anywhere, so you can remember your experiences and share them with your family and friends. -
Page 5: Description
DESCRIPTION The MINI-F Wi-Fi camera is able to perform the following functions: High definition (HD) video recording and photos. Real-time image display. Recorded Video recall function. Photo files recall function. 2.0 USB High-Speed data transfer. USB cable for battery charging. All accessories are easy to use to facilitate shooting in any place and at any time. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS MINI-F WI-FI camera has the following specifications: • Image sensor: 5.0 mega-pixel CMOS • Functions: Video recording, photo, preview (on external screen or smartphone/tablet) • Photo resolution: 8M (3264x2448), 5M (2592x1944) • Video resolution: FHD (1920x1080 30fps),HD (1280x720 30fps), HD (1280x720 60fps) •... -
Page 7: Structure
STRUCTURE 1. Shutter button 8. Micro USB port 2. Microphone 9. Mini HDMI port 3. LCD Display 10. Micro SD slot 4. Lens 11. External microphone 5. Wi-Fi switch and status indicator (red) 12. Battery lock button 6. On/off - status change switch 13. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS MINI-F Wi-Fi can be used in stand-alone mode, using the information at the top of the LCD screen or by downloading the specific APP. This way, it can be managed via Wi-FI from a smartphone or tablet. HARGE Turn on the video camera and check battery status;... -
Page 9: Use Without Wi-Fi Application
LO= 5 Mega Pixel (2592x1944) HILO = 720P (1280x720, 60fps) LO = 720P (1280x720, 30 fps) AKE A VIDEO OR TAKE A PHOTO Switch the MINI F Wi-Fi on ; when you press repeatedly, the different camera modes will appear accompanied by a beep. -
Page 10: Output And Video Viewing Devices
Using the USB connector you can: • Alimentare la videocamera MINI F WI-FI • Connect the MINI F Wi-Fi video camera to a computer in order to read the data in the memory and micro SD card. Using the HDMI connector you can: •... -
Page 11: Use With Wi-Fi Application
Android. CTIVATION PP INSTALLATION APP Store ( iOS) and Find" NILOX MINI F Wi-Fi" in Google Play (for Android OS) or install it on your smartphone or tablet. Once installed on your device, the icon will appear. • Insert the microSD card, turn on MINI F Wi-Fi and press to activate device Wi-Fi connections. -
Page 12: Ios
Android or iOS; some symbols are extremely intuitive. Let's take a look at the most significant ones: ARAMETER SETTINGS It lets you edit some specific MINI F Wi-Fi parameters. Burst mode This value lets you change the number of photos taken when the shutter button is pressed and, more specifically: •... -
Page 13: Format
Format It lets you format the microSD card. Possible choices are: • Yes, No WARNING, FORMATTING DELETES ALL DATA ON THE CARD. LAYBACK AND DELETE Playback mode lets you view and manage photos and videos. To view videos, first download them from the camera to the device using the icon on the bottom right. -
Page 14: Computer Connection
COMPUTER CONNECTION Turn on MINI F Wi-Fi and connect it to the PC USB port using the specific cable. The camera is automatically recognised as a remote disk drive. The word will appear on the screen. Now you can view your photos or videos on the PC. -
Page 15: Remote Controller
REMOTE CONTROLLER MINI-F comes with a remote controller. The remote controller, obviously, only runs a limited number of functions. It can: • Turn the camera off (red key) • Take photos (white key) • Start and stop recording videos... -
Page 16: Precautions
• Before using the 3M dual-side foam tape, clean the surface and heat the foam tape, using for instance an electric blower, especially in a place where temperature is lower than 0°C. Before using MINI F Wi-Fi video camera, pay attention to the following notice information: •... -
Page 17: Included In The Pack

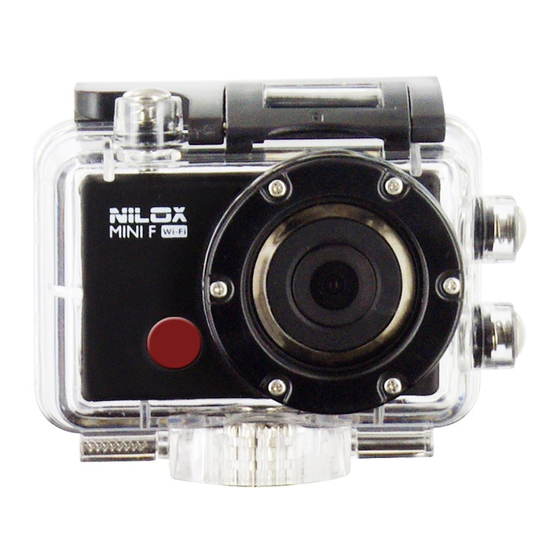

INCLUDED IN THE PACK The articles included in the pack are the following: 1 MINI-F complete with underwater 1 remote controller case 1 flat plate and 1 1 microSD card curved plate 1 hook support... -
Page 18: Warranty And Legal Notes
WARRANTY AND LEGAL NOTES MINI F Wi-Fi is equipped with a rechargeable lithium polymer battery. To reduce the risk of fire, please avoid tampering, falls, contact with water or fire. To avoid personal injury, electric shock, fire or damage to various parts of the product, please... - Page 19 • This warranty is referred to in the event a conformity defect occurs, referred to product features. • Product support and warranty. Visit www.nilox.com to learn more. Warranty restrictions: this warranty does not apply in the following cases: • no proof of purchase (invoice or receipt).
- Page 20 Brief Declaration of Conformity This device was tested and meets European Parliament and European Commission Directive 2011/65/EC and 1999/5/EC concerning radio equipment and peripheral devices for telecommunications and their mutual recognition. The declaration of conformity is available at our offices. This device can thus be used in all EEC countries and in all countries where Directive 1999/5/EC applies, without restrictions, except for: Norway (NO): device not to be used within 20 km of Ny Alesund.
