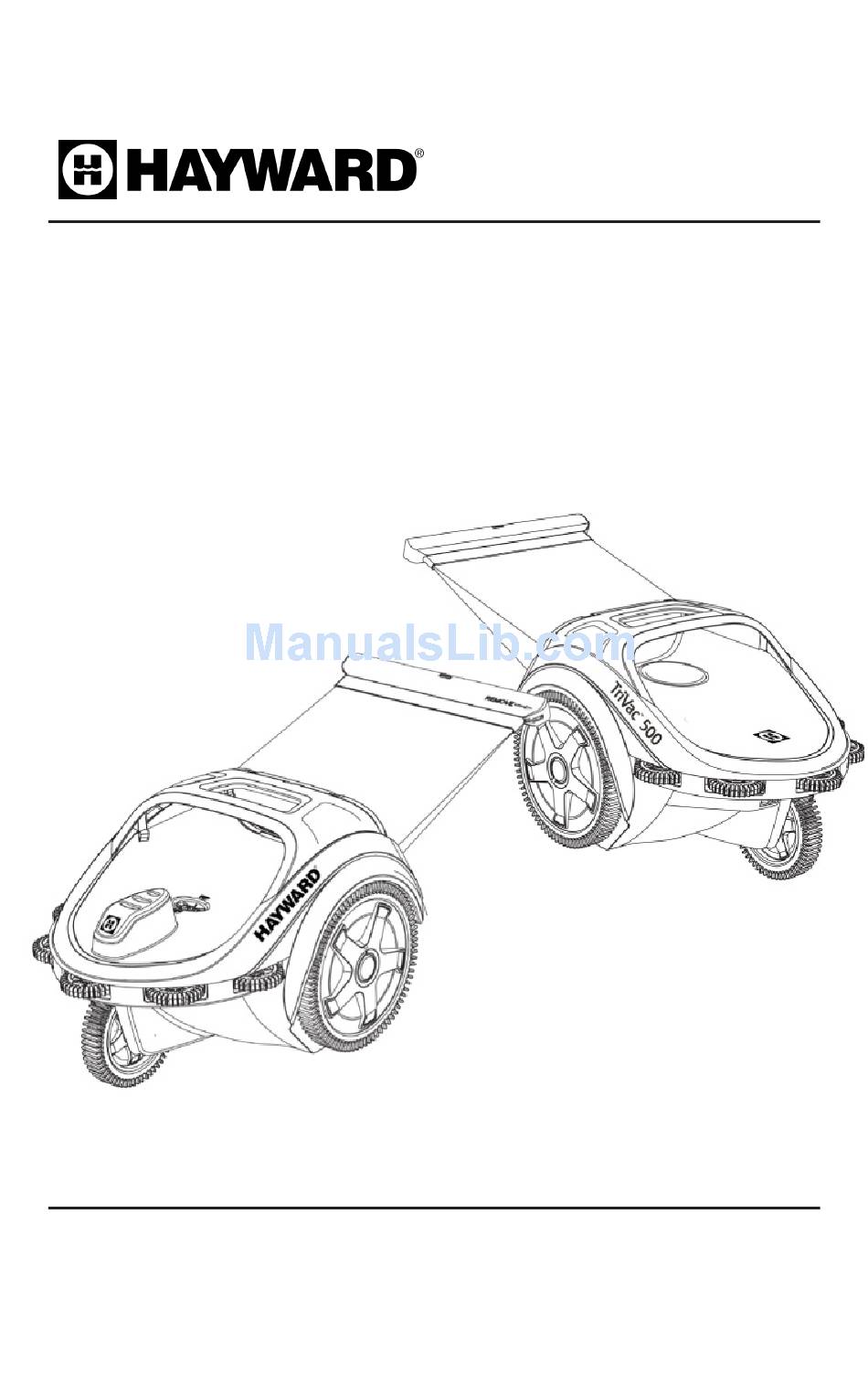

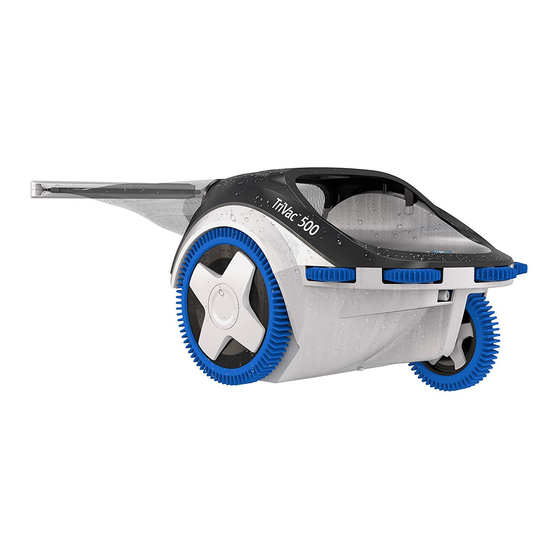

- Page 1 TriVac 500 and 700 Pressure Pool Cleaner owners manual Hayward Pool Products 620 Division Street | Elizabeth, NJ 07201 www.Hayward-Pool.com...
- Page 2 SAFETY FACTS DO NOT use to remove large debris in new pools. REMOVE the cleaner before chemically shocking your pool DO NOT swim with cleaner Store the cleaner in a shaded safe area Hoses must be stored straight. DO NOT coil the hose Keep away from childrens and pets REMOVE cleaner when performing backwash REMEMBER safety first...
-
Page 3: Carton Contents
CARTON CONTENTS TriVac 500 or TriVac 700 TriVac 500 and 700 WALL CONNECTION CLEANER SIDE GENUINE PARTS Cleaner connector Main hose section hose and sweep tail... -
Page 4: Preparing The Pool
PREPARING THE POOL Manually remove very large and excessive debris from pool (ie. post storm, spring cleaning / pool opening situations). Perform a backwash, clean your filter, skimmer baskets and pump basket. BACKWASH POOL CHEMICALS pH : 7.2 - 7.6 Chlorine : 0.5 - 1.5 P.P.M Total Alkalinity : 80 - 150 P.P.M DEDICATED RETURN LINE... - Page 5 CONNECTING THE TRIVAC INSTALLING WALL FITTING Lay the hose straight for 3 hours OR run on bottom mode for a full cleaning cycle. When installing or re- installing the universal wall fitting use Teflon tape on its plastic threads. Remove plug or existing universal DEDICATED LINE wall fitting from previously installed pool cleaner (if any).
-
Page 6: Sizing Pressure Hose
SIZING PRESSURE HOSE Sizing the hose should be performed without the last section. dedicated line dedicated line dedicated line farthest point farthest point farthest point Connect the hose to wall connector Pull main hose to farthest point of the pool. Extend hose to furthest part of of pool. - Page 7 DEBRIS BAG ATTACHING DEBRIS BAG “CLICK” Make sure the bag is not pinched REMOVING DEBRIS BAG Pull the top of the debris bag frame back and then up. Section View CLEANING DEBRIS BAG if you allow the bag to dry Full debris bag can reduce it will be easier to remove cleaner performance.
-
Page 8: Setting Pressure
SETTING PRESSURE BACKWASH Too much pressure will cause poor cleaning and premature wear of cleaner parts. Low pressure will affect cleaner’s performance and cleaning capability 23 PSI (+/- 3) Use a flat blade screwdriver to adjust the wall quick connect knob - PSI to reach 23 PSI (+/- 3) Check pressure... - Page 9 TRIVAC NORMAL OPERATION The TriVac 500 (bottom/wall only) and 700 (when in bottom/wall mode) offers best in class pool coverage. Its unique AquaDrive system enables the cleaner to easily climb walls often reaching into areas such as sun shelves or benches that other pressure cleaners simply can’t.
- Page 10 ADJUSTING THE SWEEP HOSE ADJUSTING SWEEP HOSE POWER SWEEP HOSE MOVES SLOWLY OR NOT AT ALL: turn the adjustment knob counter-clockwise to increase sweep hose power. SWEEP HOSE FREQUENTLY SPRAYS OUT OF THE POOL: turn the adjusment knob clockwise to reduce sweep hose power.
-
Page 11: Maintenance
MAINTENANCE REMOVE CLEANER FROM POOL CLEANING THE IN-LINE FILTER if the screen frequently becomes plugged, filtration system performing properly there is another plumbing problem. SCREEN Make sure the o-ring is in place and properly seated. -
Page 12: Replacing Parts
(wear line) replace the wear roller. PART NUMBER: TVX7081-01 DEBRIS BAG The debris bag should be replaced if it is torn. PART NUMBER: TriVac 500 TVX5000BA TriVac 700 TVX7000BA SWIVELS If a swivel ceases to turn easily or leaks while the cleaner is running, it should be replaced. -
Page 13: Troubleshooting
TROUBLESHOOTING FOR TECHNICAL ASSISTANCE CALL: 1-800-227-1477 PROBLEM CAUSE SOLUTION Check filtration and booster pumps, valves, cleaner connec- Slow or no forward movement Low or no water pressure tions. Check Cleaner pressure. (backwash) Cleaner does not reach farthest Add extra hose section if neces- Hose too short point in pool sary... -
Page 14: Warranty
To original purchasers of this equipment, Hayward Pool Products warrants these cleaners to be free from defects in materials and workmanship for a period of TWO (2) year (TriVac 700) ore One (1) year (TriVac 500) from the date of purchase, when used in single family residential applications. -
