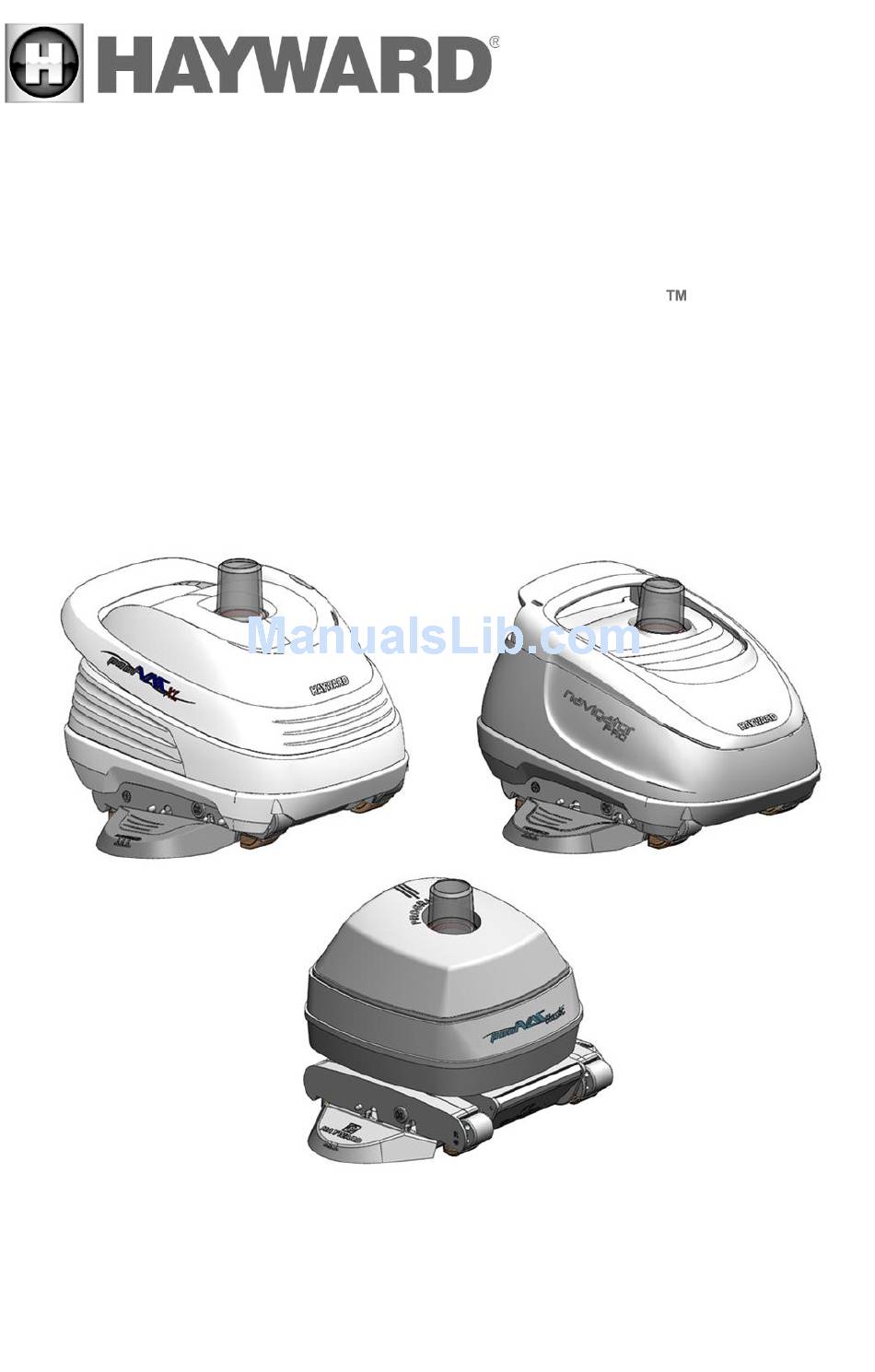

- Page 1 Pool Vac XL Navigato r Pro ® ® Pool Vac Classic Owner’s Manual Hayward Pool Products 620 Division Street Elizabeth, NJ 07207 Phone (908) 351-5400 www.hayward-pool.com P/N K540AD-Rev E...
- Page 2 Congratulations on your purchase of your Hayward automatic suction pool cleaning system from Hayward. Your Cleaner is the smart, efficient way to clean your in-ground pool. Hayward Turbine Cleaners are powered by your pool’s filter system and are designed to work well with most systems.
-
Page 3: Installation
The hose cuff has a red sticker attached to it that reads “REMOVE LABEL AND CONNECT TO CLEANER”. Connect the exclusive Hayward hose sections together by pushing and twisting the tapered male connector end of each hose firmly into the open female end of the adjacent hose (see Figure 1). - Page 4 INSTALLING YOUR HAYWARD CLEANER IS SIMPLE... Step 4 The hose should reach from the skimmer or Hayward Vac Lock® to the furthest point in the pool, plus two (2) extra hose sections. (The length of each hose section is four feet.) This extra length is absolutely necessary for proper operation of your Hayward Cleaner.
- Page 5 Hayward V094 Regulator Valve or an optional Hayward Automatic Skimmer Vacuum Plate designed to adjust vacuum/water flow. To install...
- Page 6 Contact your Authorized Hayward Dealer for assistance. If you have connected your hose to the Hayward Vac Lock, it will be necessary to adjust the vacuum/water flow using the 3-way valve at the filter system. The handle on the valve should be turned so that the Flow Gauge which is installed in the Cleaner hose reads properly (refer to Figure 2).
- Page 7 Installation INSTALLING YOUR HAYWARD CLEANER IS SIMPLE... Step 9 Observe your Cleaner in operation, and make sure that the return line flow is not affecting the Cleaner’s programmed steering and preventing the Cleaner from covering the entire pool. If the cleaner hose is being pushed across the surface of the pool, it will be necessary to redirect the return line water flow downward.
-
Page 8: Important Tips
Cleaner’s cleaning is confined to the bottom (both shallow and deep) and the hopper sides. Hayward Turbine Cleaners do not climb the vertical walls of in-ground or on-ground vinyl liner pools. However, normal dirt and debris do not adhere to these walls. - Page 9 Turbine Suction Cleaners IMPORTANT TIPS Some skimmers have a vari-flow or diverter valve in the bottom of the skimmer. This valve can be turned to regulate skimming and main drain suction. Turn the valve to full skim and then adjust the Flow Gauge by turning the valve toward main drain suction. Usually this valve is the same size as the Cleaner’s hose end, and it will therefore be necessary to purchase a V098 Hose Adapter (see Figure 7).
-
Page 10: Maintenance Tips
(3) vertical lines above it. When you can no longer see the horizontal line, the wings must be changed (see Figure 9). The Hayward Tune-Up Kit is available from your dealer. Shoes, wings and flaps may also be purchased separately. - Page 11 Turbine Suction Cleaner MAINTENANCE TIPS 3. WING REPLACEMENT: a) Using a screwdriver, remove the plugs from both pods (see Figure 9). b) Remove the old wings by bending the wings up toward the sides of the cleaner, and lift them off their hooks (see Figure 10). If any of the wing hooks are broken, take the Cleaner to your dealer for pod replacement as the unit will not function properly if the wings are not properly attached.
- Page 12 Turbine Suction Cleaner MAINTENANCE TIPS 4. FLAP REPLACEMENT: a) Remove the front and rear flaps from your Cleaner by inserting a small screwdriver between the flap and the lower body near the pivot point of the flaps (see Figure 11). b) You will notice that your replacement flaps look similar but are marked “Front”...
- Page 13 Replacement of the Pool Vac XL Skirt/Mid Section is not recommended as DIY repair. There is strong possibility that the replacement could cause propulsion system issues. It is strongly suggested that you bring your Pool Vac XL to a HAYWARD dealer for replacement. Tools required —...
- Page 14 Replacement of the Navigator Pro Skirt/Mid Section is not recommended as DIY repair. There is strong possibility that the replacement could cause propulsion system issues. It is strongly suggested that you bring your Navigator Pro to a HAYWARD dealer for replacement. Tools required —...
-
Page 15: Removal Instructions
Removal Instructions “EASY OPENING BOTTOM” 6. “EASY OPENING BOTTOM” The purpose of the “EASY OPENING BOTTOM” is to allow quick access to the turbine/ vacuum chamber for easy cleaning and maintenance. Should the Cleaner stop moving or become sluggish due to debris trapped in the throat or inside the unit, the turbine/vacuum chamber is accessible following the instructions on pages 13 &... - Page 16 Removal Instructions “EASY OPENING BOTTOM” 6. Lift “Easy Opening Bottom” (see Figures 14 & 15). 7. Clean turbine/vacuum chamber (see Figure 16). 8. Check turbine for free movement. 9. Reinstall “Easy Opening Bottom” by lining up the cover screen with the two slots shown in Figures 14 and 15.
-
Page 17: Troubleshooting Guide
Turbine Suction Cleaner TROUBLESHOOTING GUIDE Problem: Slow/no forward movement CAUSES SOLUTIONS Lack of/improper water flow through cleaner Check water flow with Flow Gauge and adjust as per Step 6. Blockage of the Cleaner throat Clear blockage Worn shoes Replace shoes Worn wings Replace wings Improper cleaner model for application... - Page 18 Turbine Suction Cleaner TROUBLESHOOTING GUIDE Problem: Cleaner climbs to water surface and sucks air. CAUSES SOLUTIONS Too much/improper water flow through cleaner Check water flow with Flow Gauge and adjust per instructions in Step 6 Improper tension on rear flap Turn rear flap adjuster to position 1 If still climbing too much, reduce water flow until proper operation is achieved...
- Page 19 Turbine Suction Cleaner TROUBLESHOOTING GUIDE Problem: Cleaner sticks at steps, corners, etc. CAUSES SOLUTIONS Improper water flow Check water flow with Flow Gauge and adjust as per Step 6. Worn shoes Replace shoes Worn wings Replace wings Hose too short Install additional hose per installation instructions.
- Page 20 H) When installing your Cleaner, you must assume all responsibility for the condition of the pool and the pool’s surroundings. To better serve you, please have the following information available if you call Hayward’s Technical Service Department at 908-355-7995 (U.S.A. only): 1) The Purchase Date of your Hayward Turbine Suction Cleaner.
-
Page 21: Limited Warranty
Month Date Serial Numbers or Letters from bottom of unit (21-) If you purchased your Cleaner in the United States For convenient registration visit: www.hayward-pool.com or mail to: Hayward Pool Products 620 Division St. Elizabeth, NJ 07201 Attn: Warranty DEPT If you purchased your Cleaner in Canada For convenient registration visit: www.haywardcanada.com... -
Page 22: Warranty Registration
To the Original Retail Consumer/Purchaser (the “PURCASER”) of the Hayward Pool Vac XL, Navigator Pro and Pool Vac Classic (the “CLEANER”): Hayward Pool Products, Inc. (“HAYWARD”) warrants the cleaner from the date of original purchase. The Limited Warranty is as follows:... - Page 23 Turbine Suction Cleaner WARRANTY REGISTRATION...
- Page 24 WARRANTY REGISTRATION Hayward is a registered trademark and Pool Vac XL, Navigator Pro and Pool Vac Classic are trademarks of Hayward Industries, Inc. Hayward is a registered trademark and Pool Vac Ultra and Navigator are trademarks of Hayward Industries, Inc.
