48V/18Ah Version: 8 pieces of 12V 9Ah (4+4) batteries
72V/9Ah Version: 6 pieces of 12V 9Ah batteries
72V/18Ah Version: 12 pieces of 12V 9Ah (6+6) batteries

4. Battery Installation

If your battery box is not installed with batteries, please follow
proper procedure to put batteries inside of unit.
NOTE:
MAKE SURE THAT THE BATTERY BOX IS DISCONNECTED FROM THE
UPS BEFORE PERFORMING THE FOLLOWING SEQUENCE OF OPERATIONS
Battery Box 24V
Step 1 : Open the package and place the battery box on a horizontal plane.

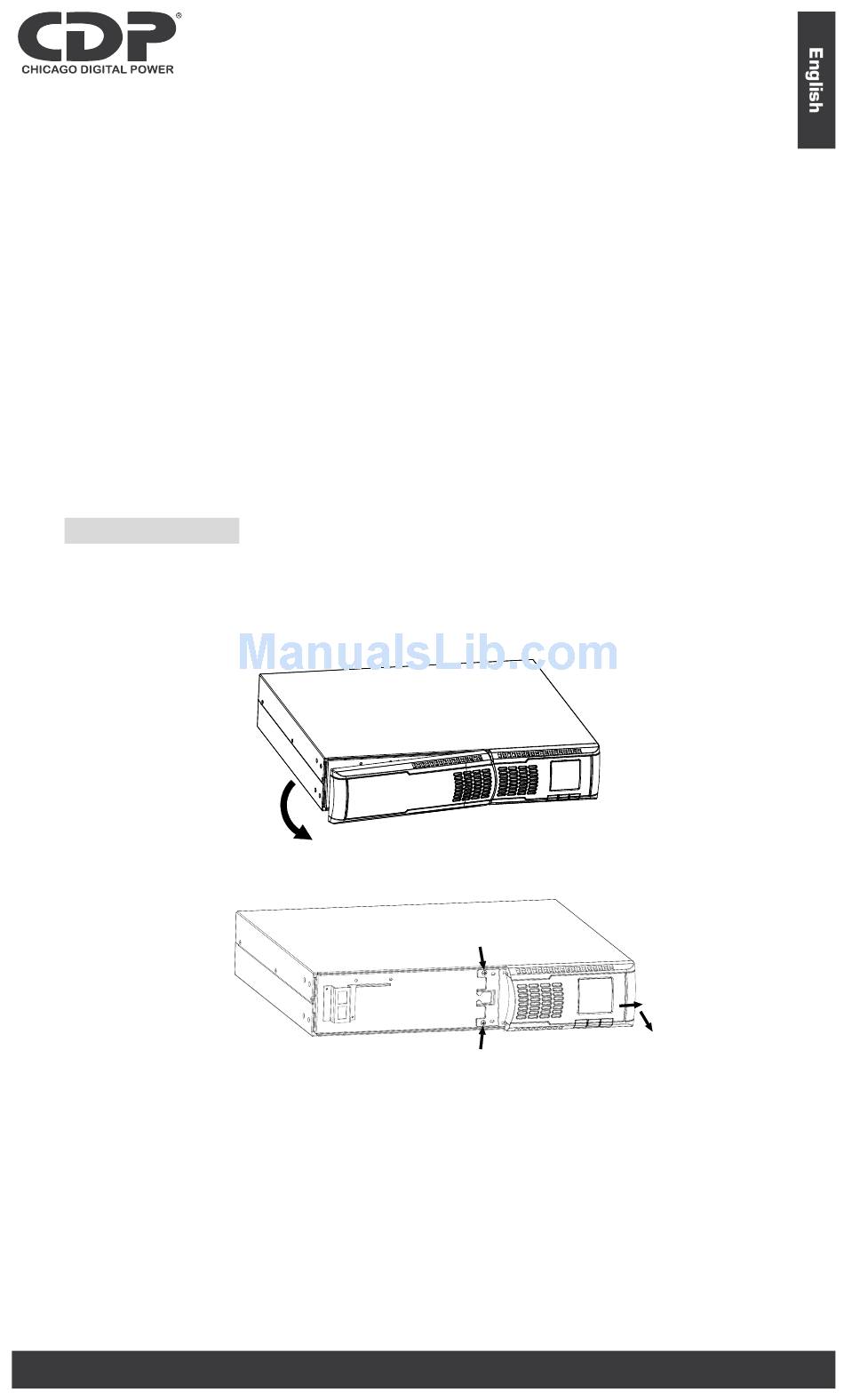

Step 2: Remove the removable front panel part by pulling it from the lower
extremity
Step 3: Remove the fixed part of the front panel by removing the 2 screw present.
Step 4: Remove the metal top cover of the battery box by unscrewing the 6 screws
present on the two sides (3 on the right side + 3 on the left side) and the 3 screws on
1-3K Battery pack rack
the top and the 4 screws on the back side.
.
