Step 5: Once battery box is opened, remove the battery fixing plate present on the
left side by unscrewing 2 screws present.
Pull up first and then push the battery fixing plate.
Note: To install the second branch of batteries, repeat the same procedure on the
battery fixing plate on the right side of battery box

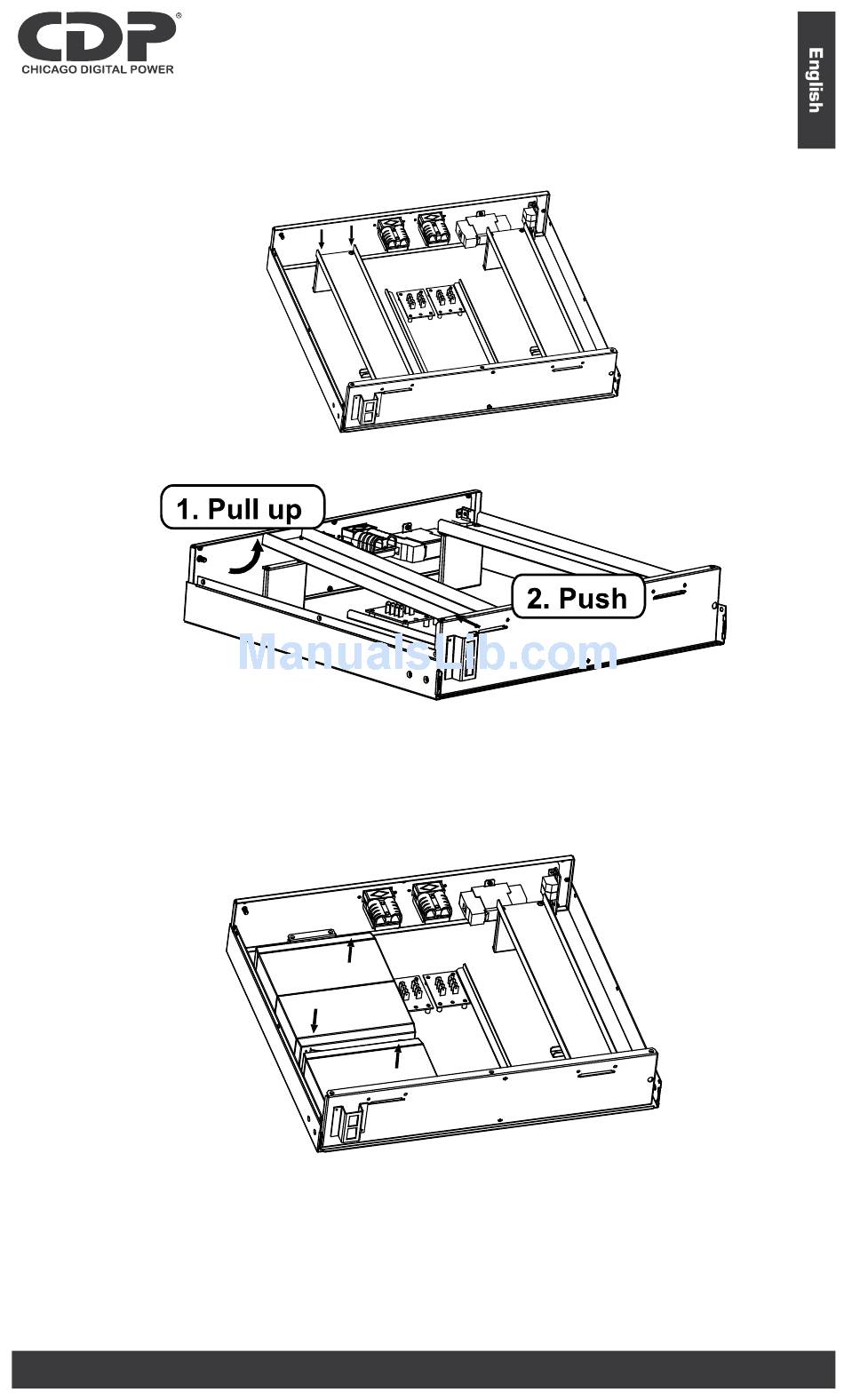

Step 6: Now, it is possible to put the batteries inside following the picture below (in
the following drawing is indicated the fasten positions for the correct
batteries placing).
Note: To install the second branch of batteries, repeat the same procedure on the
right side of battery box.
1-3K Battery pack rack
