CDP UPO11-1RT User Manual page 14

1-3k battery pack rack
Hide thumbs Also See for UPO11-1RT:
Table of Contents

Advertisement

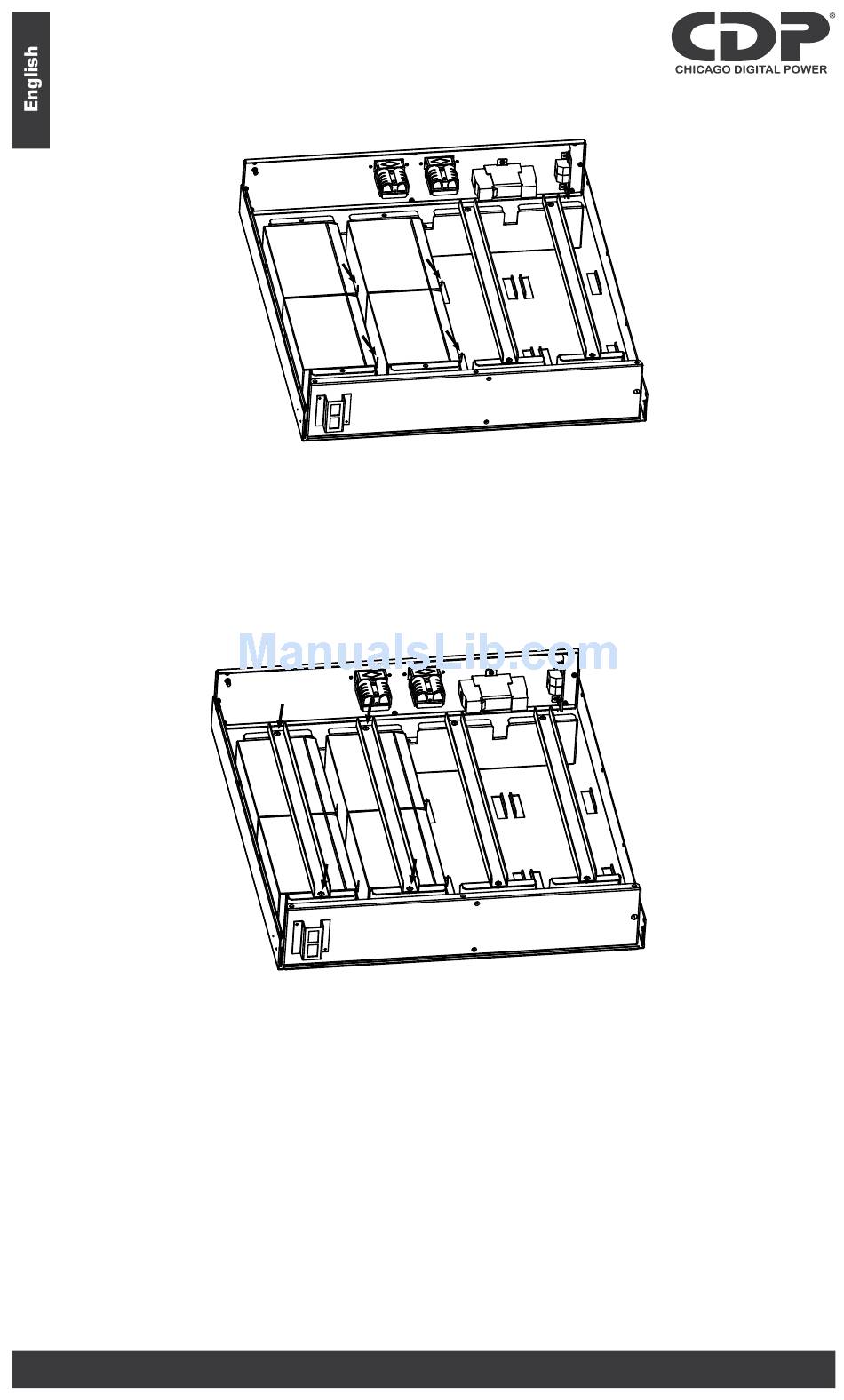

Note: To install the second branch of batteries, repeat the same procedure on the
right side of battery box.
Step 7: Connecting all batteries following the wiring diagram shown in next
chapter.
Step 8: Put all batteries inside with the metal plate.
Note: To install the second branch of batteries, repeat the same procedure on the
right side of battery box.
Step 9: Put metal top cover back to the unit. Close the frontal fixing plate and the
two parts of the front panel and secure it with screws.
Step 10: Then, connect the battery box to the UPS.
1-3K Battery pack rack
