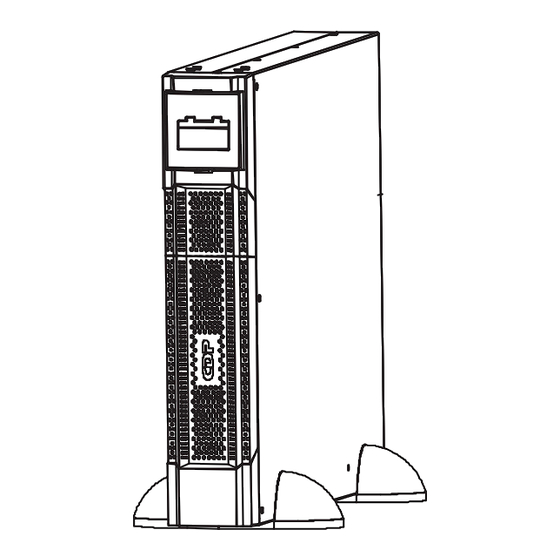

1-3K Battery pack rack
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPO11-1RT and is the answer not in the manual?

Questions and answers

Related Manuals for CDP UPO11-1RT

Summary of Contents for CDP UPO11-1RT

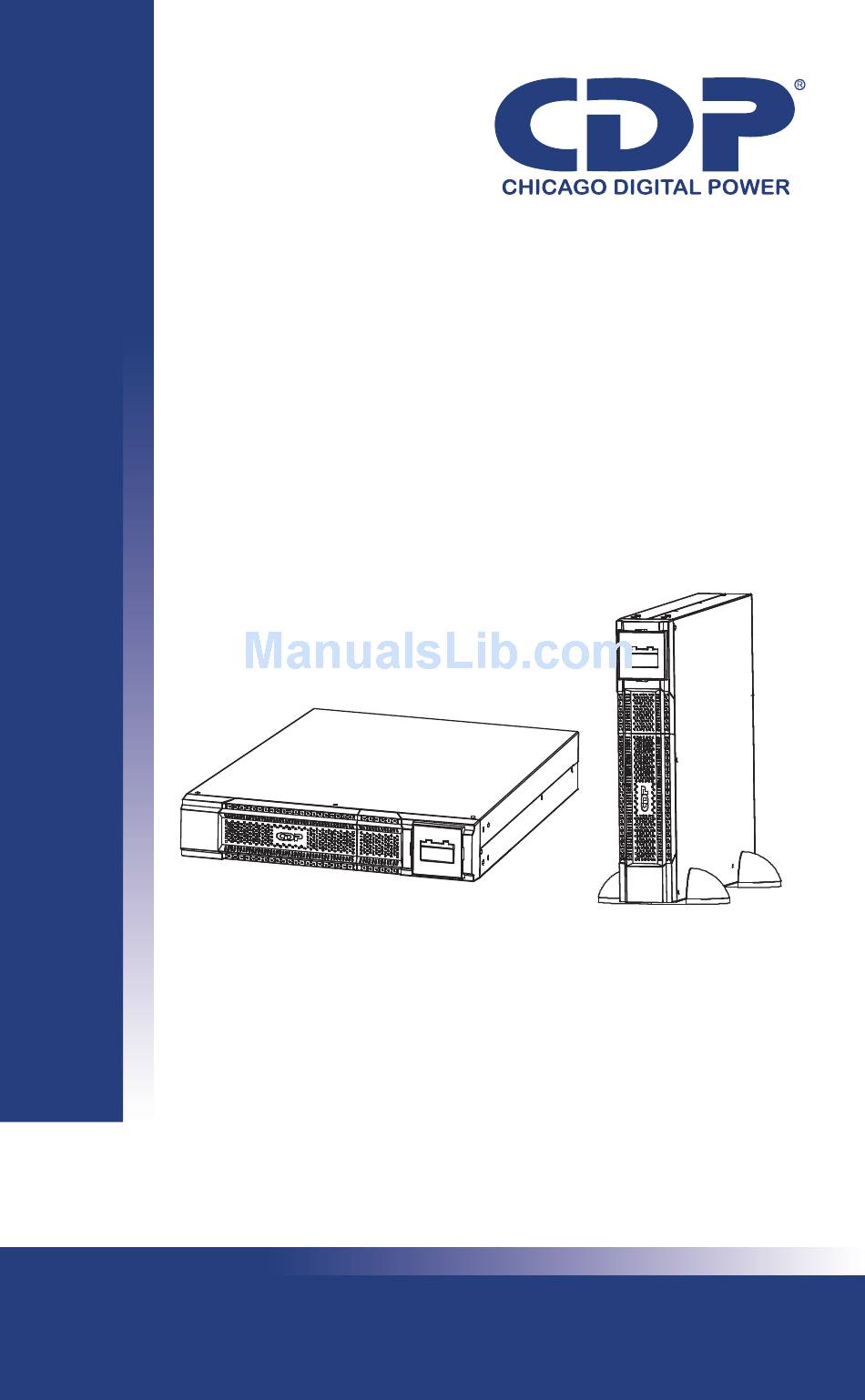

  • Page 1 1-3K Battery pack rack User Manual...

  • Page 3: Important Safety Warnings

    Quick Guide 1-3K Battery pack manual Rack 1. Important Safety Warnings Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.
  • Page 4  It should be recharged every 2-3 months if unused. If this is not done, then the warranty will be null and void. During normal operation, the batteries will be automatically remained in charged condition.  Servicing of batteries should be performed or supervised by trained personnel with knowledge of batteries and the required precautions.

  • Page 5: Selecting Installation Position

    2-2 Installation and Setup with UPS Unpacking & Inspection 1. Remove the battery box from the packing. Note: The battery box is very heavy, be cautious when unpacking and lifting the unit to avoid injury. 2. Check the inside package Battery box unit ...

  • Page 6: Rack Installation

    This unit can either be mounted or placed vertically on the desk. Rack Installation Tower Installation Connecting with UPS and Other Battery Box Follow below installation chart to connect with UPS and other battery box with included cable. battery box battery box 3.

  • Page 7: Battery Installation

    48V/18Ah Version: 8 pieces of 12V 9Ah (4+4) batteries 72V/9Ah Version: 6 pieces of 12V 9Ah batteries 72V/18Ah Version: 12 pieces of 12V 9Ah (6+6) batteries 4. Battery Installation If your battery box is not installed with batteries, please follow proper procedure to put batteries inside of unit.
  • Page 8 Step 5: Once the battery box is opened, remove the battery fixing plate present on the left side of the unit by unscrewing the 2 screws. Pull up first and then push the battery fixing plate. Note: To install the second branch of batteries, repeat the same procedures on the battery fixing plate on the right side of battery box.
  • Page 9 Step 6: Now, it is possible to put all batteries in battery box following the picture below (in the following drawing is indicated the fasten positions for the correct batteries placing). Note: To install the second branch of batteries, repeat the same procedures on the right side of battery box.
  • Page 10 Battery Box 36V Step 1 : Open the package and place the battery box on a horizontal plane. Step 2: Remove the removable front panel part by pulling it from the lower extremity. Step 3: Remove the fixed part of the front panel by removing the 2 screw present. Step 4: Remove the metal top cover of the battery box by unscrewing 6 screws present on the two sides (3 on the right side and 3 on the left side), 3 screws on the top and 4 screws on the back side.
  • Page 11 Step 5: Once battery box is opened, remove the battery fixing plate present on the left side by unscrewing 2 screws present. Pull up first and then push the battery fixing plate. Note: To install the second branch of batteries, repeat the same procedure on the battery fixing plate on the right side of battery box Step 6: Now, it is possible to put the batteries inside following the picture below (in the following drawing is indicated the fasten positions for the correct...
  • Page 12 Step 7: Connecting all batteries following the wiring diagram shown in next chapter. Step 8: Put all batteries inside with the metal plate. Note: To install the second branch of batteries, repeat the same procedure on the right side of battery box. Step 9: Put metal top cover back to the unit.
  • Page 13 Step 4: Remove the metal top cover of the battery box by unscrewing 8 screws present on the two sides (4 on the right side and 4 on the left side), 3 screws on the top and 4 screws on the back side. Step 5: Once the battery box is opened, remove the battery fixing plate present on the left side of the battery box by unscrewing the 2 screws present.
  • Page 14 Note: To install the second branch of batteries, repeat the same procedure on the right side of battery box. Step 7: Connecting all batteries following the wiring diagram shown in next chapter. Step 8: Put all batteries inside with the metal plate. Note: To install the second branch of batteries, repeat the same procedure on the right side of battery box.
  • Page 15 Battery Box 72V Step 1 : Open the package and place the battery box on a horizontal plane. Step 2: Remove the removable front panel part by pulling it from the lower extremity Step 3: Remove the fixed part of the front panel by removing 2 screw present. Step 4: Remove the metal top cover of the battery box by unscrewing 8 screws present on the two sides (4 on the right side and 4 on the left side), 3 screws on the top and 4 screws on the back side.
  • Page 16 Step 5: Once battery box is opened, remove the battery fixing plate present on the left side of the battery box by unscrewing the 2 screws present. Note: To install the second branch of batteries, repeat the same procedure on the battery fixing plate on the right side of battery box.
  • Page 17 Step 8: Put all batteries inside with the metal plate. Note: To install the second branch of batteries, repeat the same procedure on the right side of battery box. Step 9: Put metal top cover back to the unit. Close the frontal fixing plate and the two parts of the front panel and secure it with screws.

  • Page 18: Wiring Diagram

    5. Wiring Diagram Battery Box 24V Picture example as below: 1-3K Battery pack rack www.cdpups.com...
  • Page 19 450M 350M 350M 450M Note: The cable connection from external battery connector to PCB is already present inside the battery box. All the other cable connection should be followed by wiring diagram. 1-3K Battery pack rack www.cdpups.com...
  • Page 20 Battery Box 36V Picture example as below: 1-3K Battery pack rack www.cdpups.com...
  • Page 21 450M 150M 350M 150M 350M 450M Note: The cable connection from external battery connector to PCB is already present inside the battery box. All the other cable connection should be followed by wiring diagram. 1-3K Battery pack rack www.cdpups.com...
  • Page 22 Battery Box 48V 1st battery bench Batt Link PCBA + Batt Link PCBA - BLACK Breaker BLACK 2nd battery bench 1-3K Battery pack rack www.cdpups.com...
  • Page 23 Picture example as below: 260MM 280M 220MM 300MM 280M Note: The cable connection from external battery connector to PCB is already present inside the battery box. All the other cable connection should be followed by wiring diagram. 1-3K Battery pack rack www.cdpups.com...
  • Page 24 Battery Box 72V 1st battery bench Batt Link PCBA + Batt Link PCBA - BLACK Breaker BLACK 2nd battery bench 1-3K Battery pack rack www.cdpups.com...
  • Page 25 Picture example as below: 240M 280M 380M 380M Note: The cable connection from external battery connector to PCB is already present inside the battery box. All the other cable connection should be followed by wiring diagram. 1-3K Battery pack rack www.cdpups.com...

  • Page 26: Storage And Maintenance

    6. Storage & Maintenance The unit contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.
  • Page 28 Bolivia: 800-100156 Colombia: 01800-5181617 Costa Rica: 800-435737 El Salvador: 800-6773 Honduras: 800-25616099 México: 001800 514 8611 Panamá: 011-00800-2268611 Perú: 0800-54674 República Dominicana: 1888-7514876 Venezuela: 0800-1627485...

This manual is also suitable for:

Upo-11-3rtUpo11-2rt
