CDP UPO11-1RT User Manual page 16

Step 5: Once battery box is opened, remove the battery fixing plate present on the
left side of the battery box by unscrewing the 2 screws present.
Note: To install the second branch of batteries, repeat the same procedure on the
battery fixing plate on the right side of battery box.

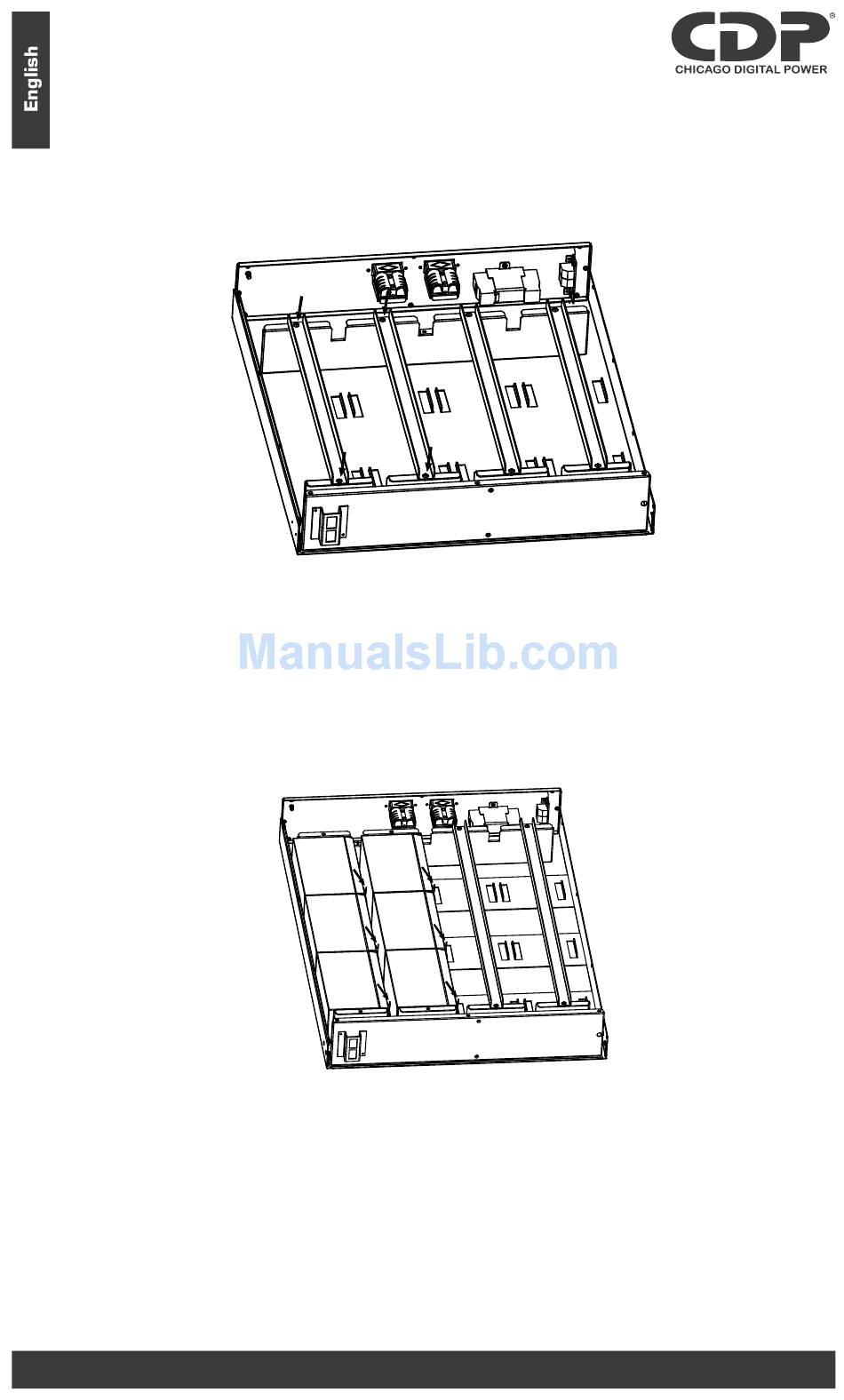

Step 6: Now, it is possible to put the batteries inside following below picture (in the
following drawing are indicated the fasten positions for the correct
batteries placing).
Note: To install the second branch of batteries, repeat the same procedure on
the right side of battery box.
Step 7: Connecting all batteries following the wiring diagram shown in next
chapter.
1-3K Battery pack rack
