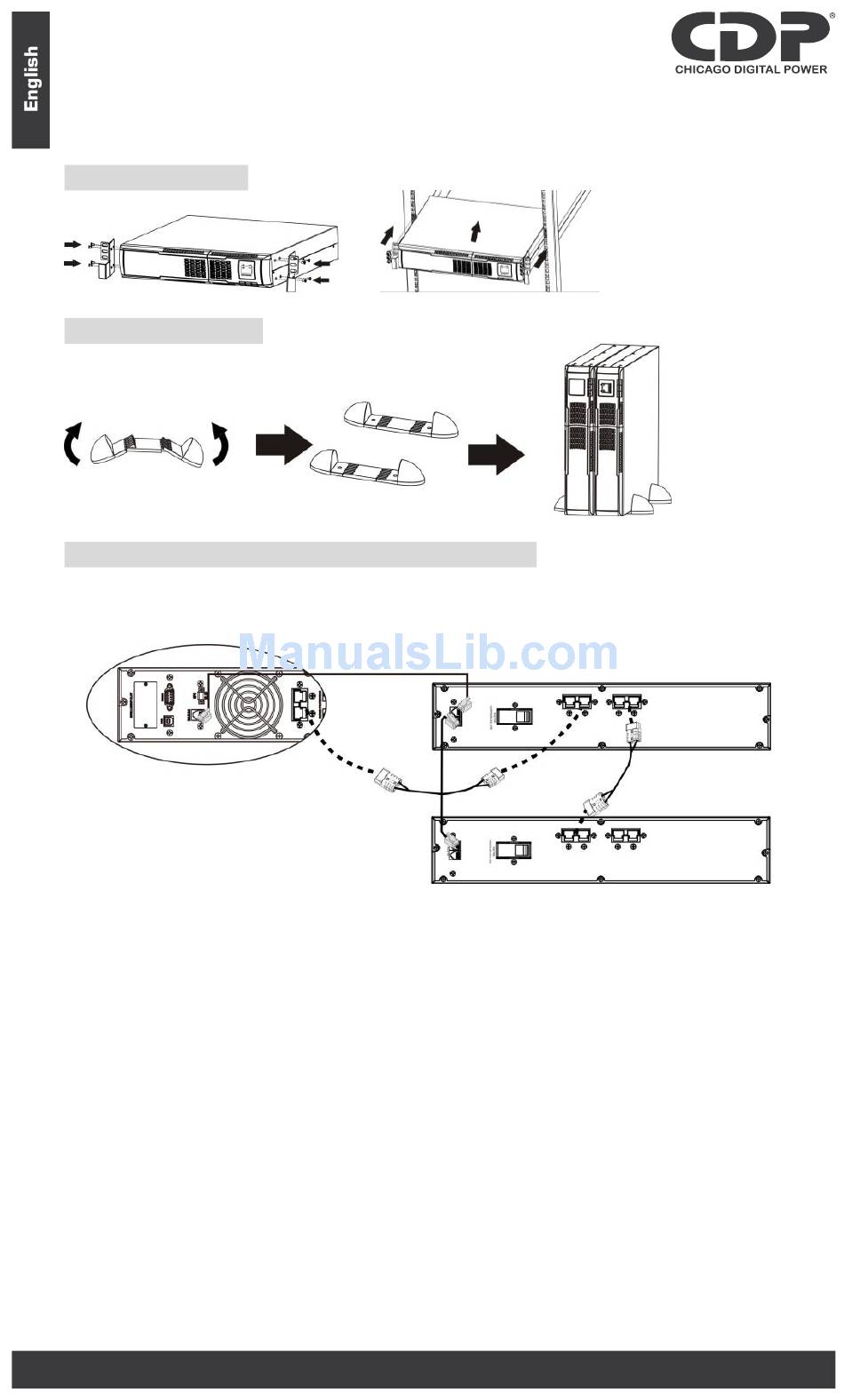

This unit can either be mounted or placed vertically on the desk.

Rack Installation

Tower Installation

Connecting with UPS and Other Battery Box
Follow below installation chart to connect with UPS and other battery box with
included cable.
UPS
3. Type of Battery Required
This battery box has been designed to operate with the following types of
batteries:
24V/9Ah Version: 2 pieces of 12V 9Ah batteries
24V/18Ah Version: 4 pieces of 12V 9Ah (2+2) batteries
36V/9Ah Version: 3 pieces of 12V 9Ah batteries
36V/18Ah Version: 6 pieces of 12V 9Ah (3+3) batteries
48V/9Ah Version: 4 pieces of 12V 9Ah batteries
1-3K Battery pack rack
st
1
battery box
nd
2
battery box
www.cdpups.com
